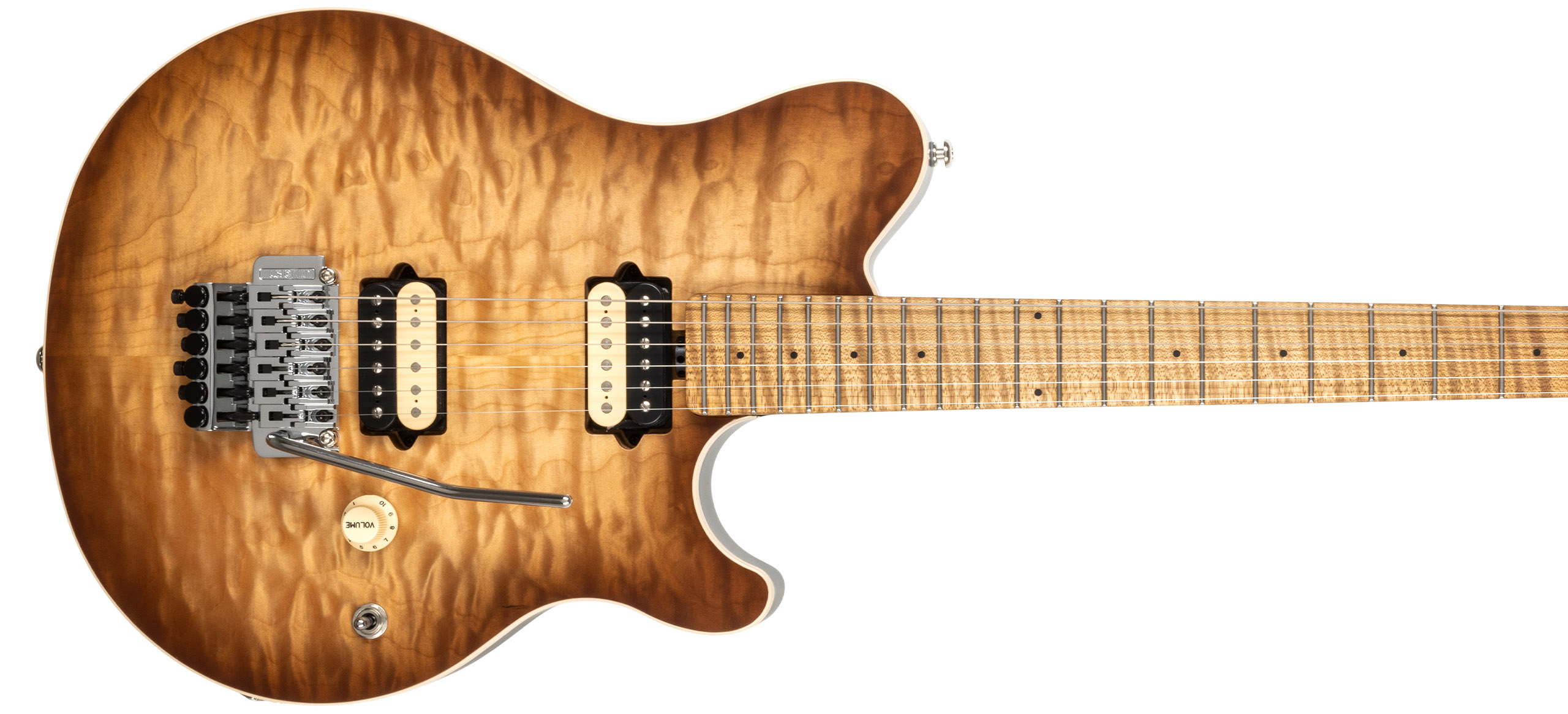

New for 2021, the Axis guitar is offered with a roasted, figured maple neck, 22 stainless steel frets, and 2 exciting new finishes: Yucatan Blue and Roasted Amber. The guitar retains the features that have made it a classic such as the ever-comfortable asymmetric neck shape, double-locking tremolo, and custom DiMarzio humbuckers. Available with your choice of flame or quilt maple top over a basswood body, this tonewood/pickup combination is a perfect recipe for hard edge rock tones but also delivers a subtle dynamic response at lower volume levels when needed.

Axis Logo

OPTIONS

Yucatan Blue Quilt

Yucatan Blue Flame

Roasted Amber Quilt

Roasted Amber Flame

Your Custom Options:

Model:
Colour:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

Axis Highlights

Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Highlight

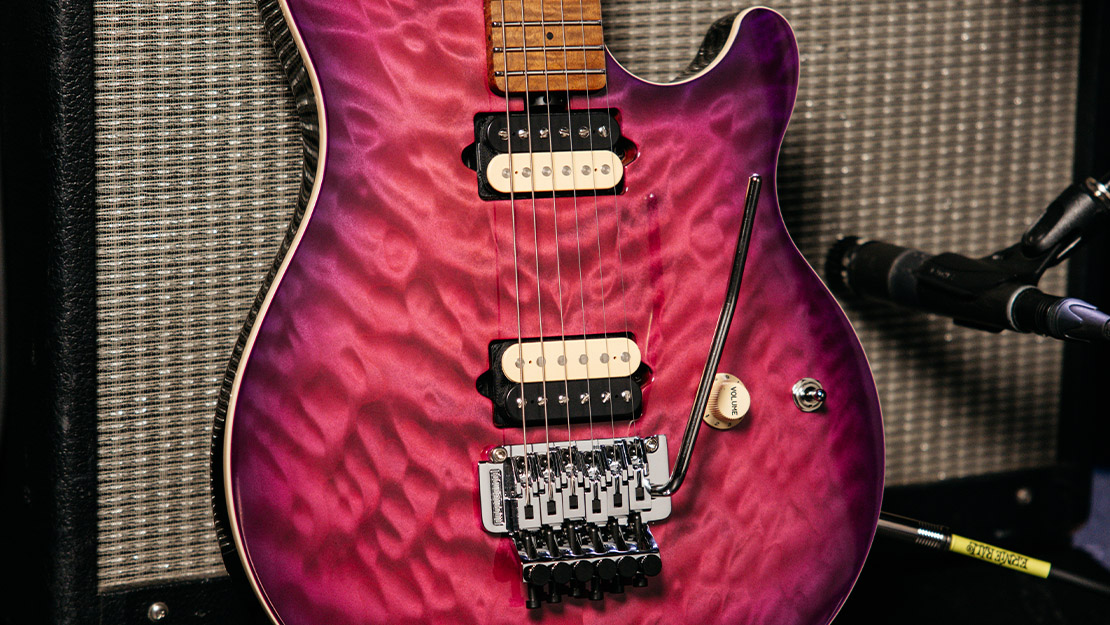

PREMIUM FIGURED MAPLE TOP
Axis Highlight

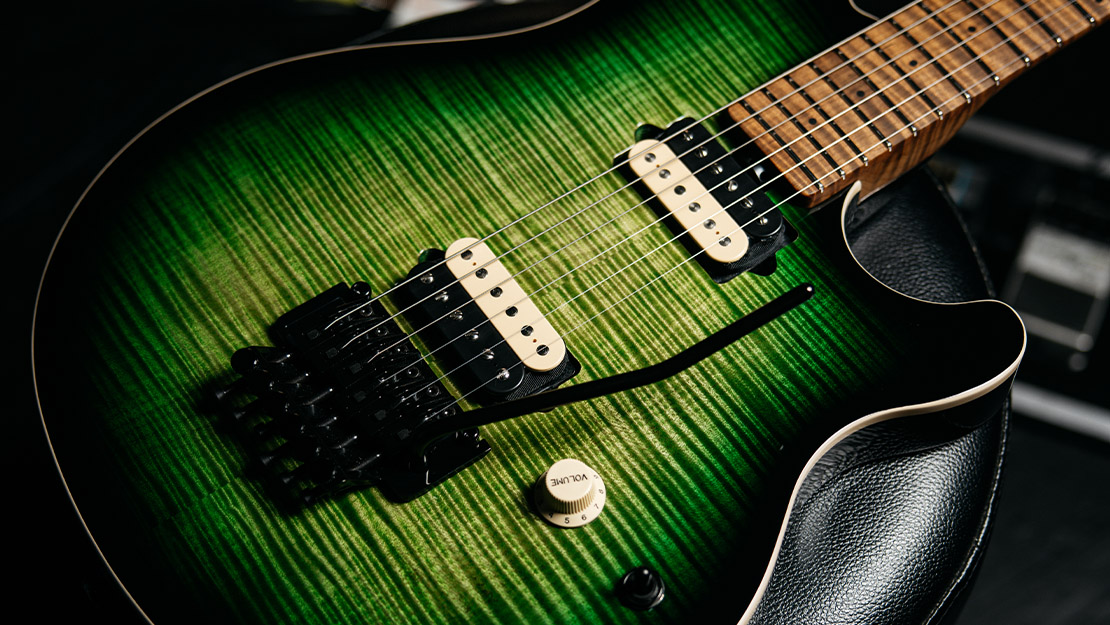

ERNIE BALL MUSIC MAN DOUBLE LOCKING TREMOLO
Axis Highlight
ROASTED ASYMMETRICAL, FIGURED MAPLE NECK

Specifications, Schematics & More

Specifications Axis
Model Axis
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colours Choice of flame or quilt top
Body Bindings Binding - Cream
Bridge Music Man® double locking tremolo with fine tuners; lowers pitch only
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Roasted Maple
Fingerboard Figured Roasted Maple
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colours Roasted Maple
Tuning Machines Schaller M6LA with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume pot
Switching 3-way toggle pickup selector

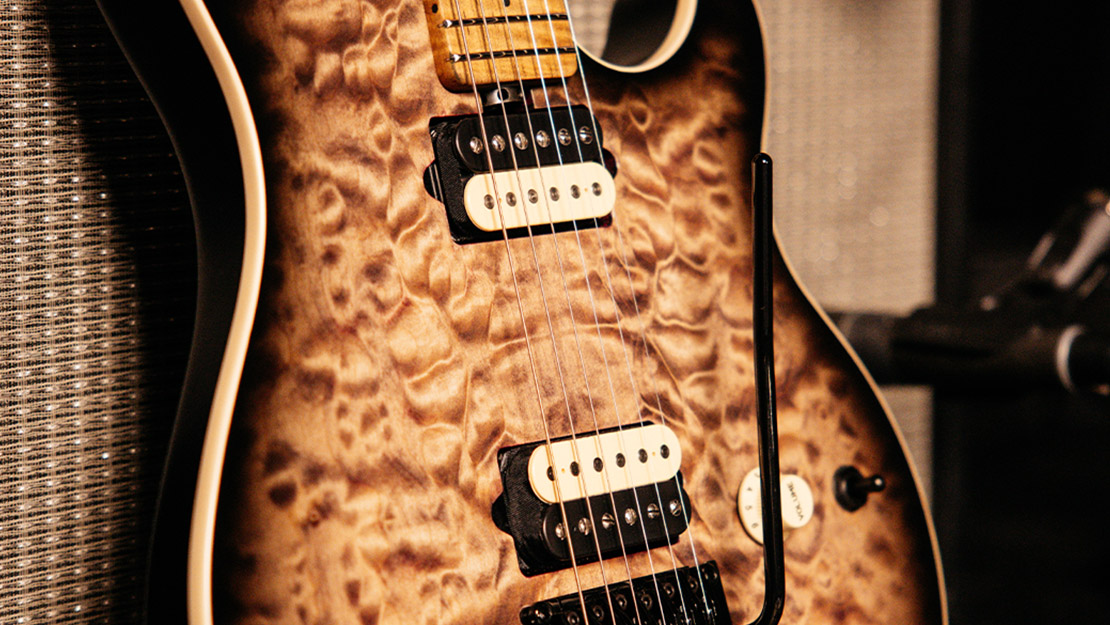

Pickups HH - 2 DiMarzio custom humbucking
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 3

iid => 3

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:32

updated_at => 2015-11-06 08:20:32

Specifications Axis
Model Axis
Order 0
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colors Choice of flame or quilt top
Body Bindings Binding - Cream
Bridge Music Man® double locking tremolo with fine tuners; lowers pitch only
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Roasted Maple
Fingerboard Figured Roasted Maple
Fret Markers
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Roasted Maple
Neck Binding
Tuning Machines Schaller M6LA with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume pot
Switching 3-way toggle pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
