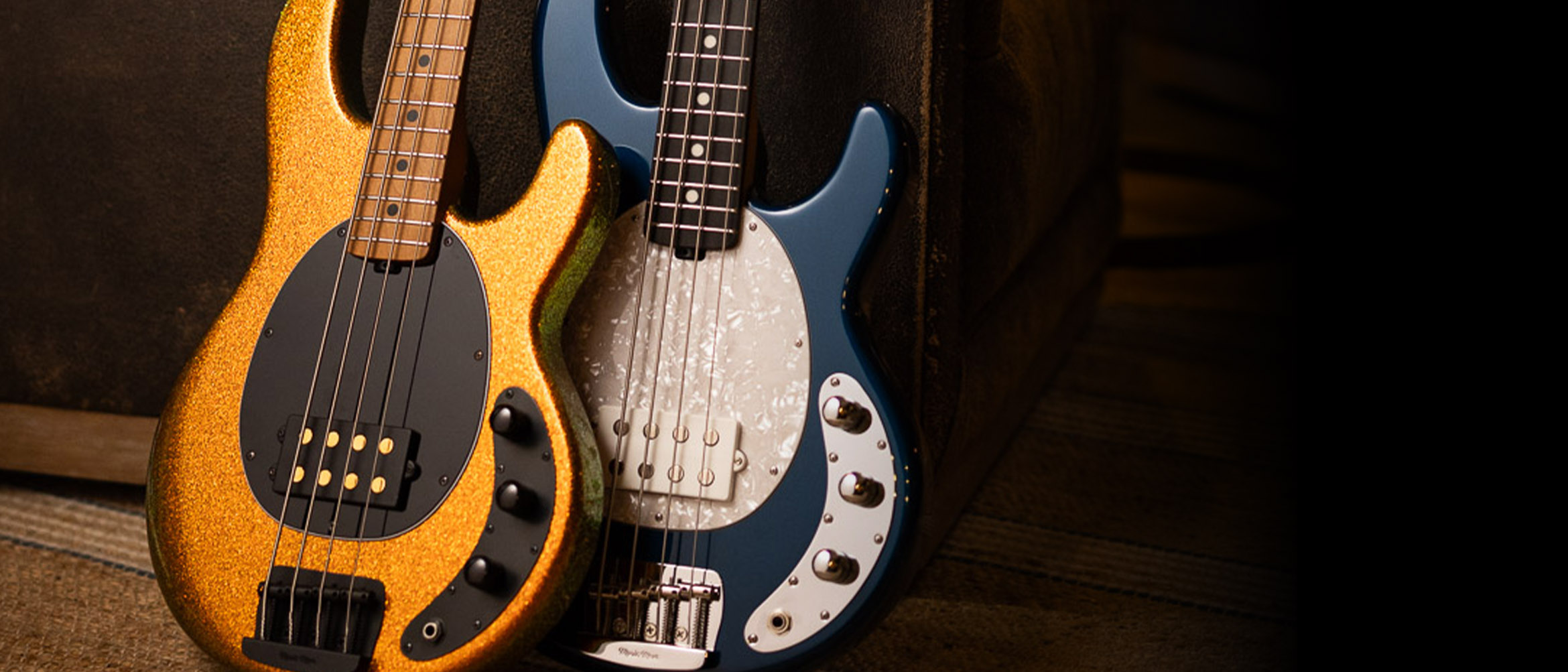

Short Scale StingRay Hero Image
Short Scale StingRay Logo

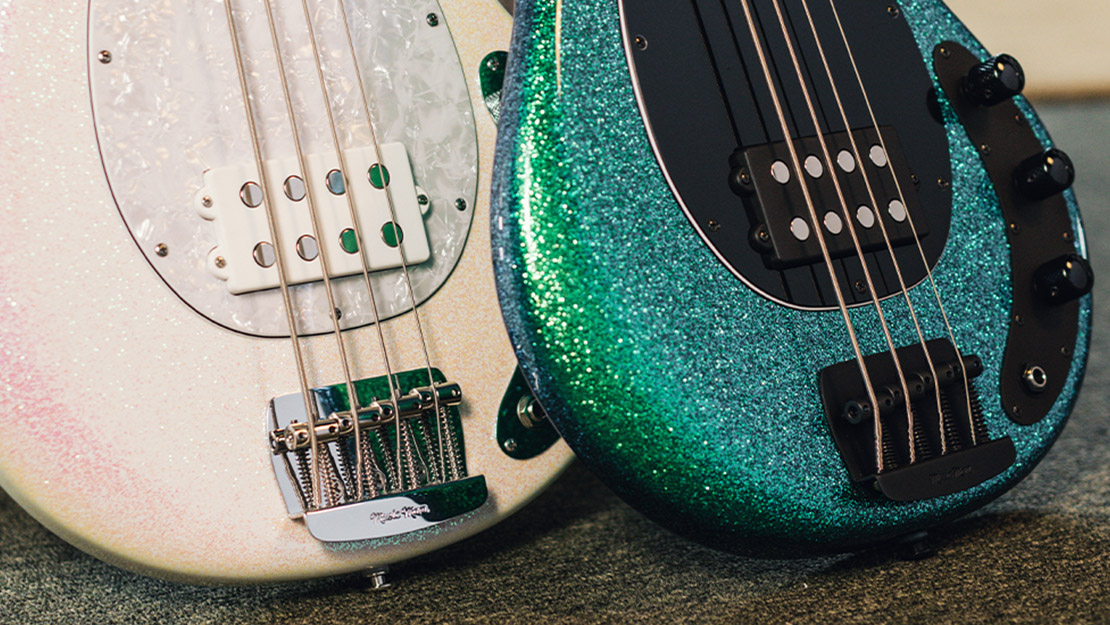

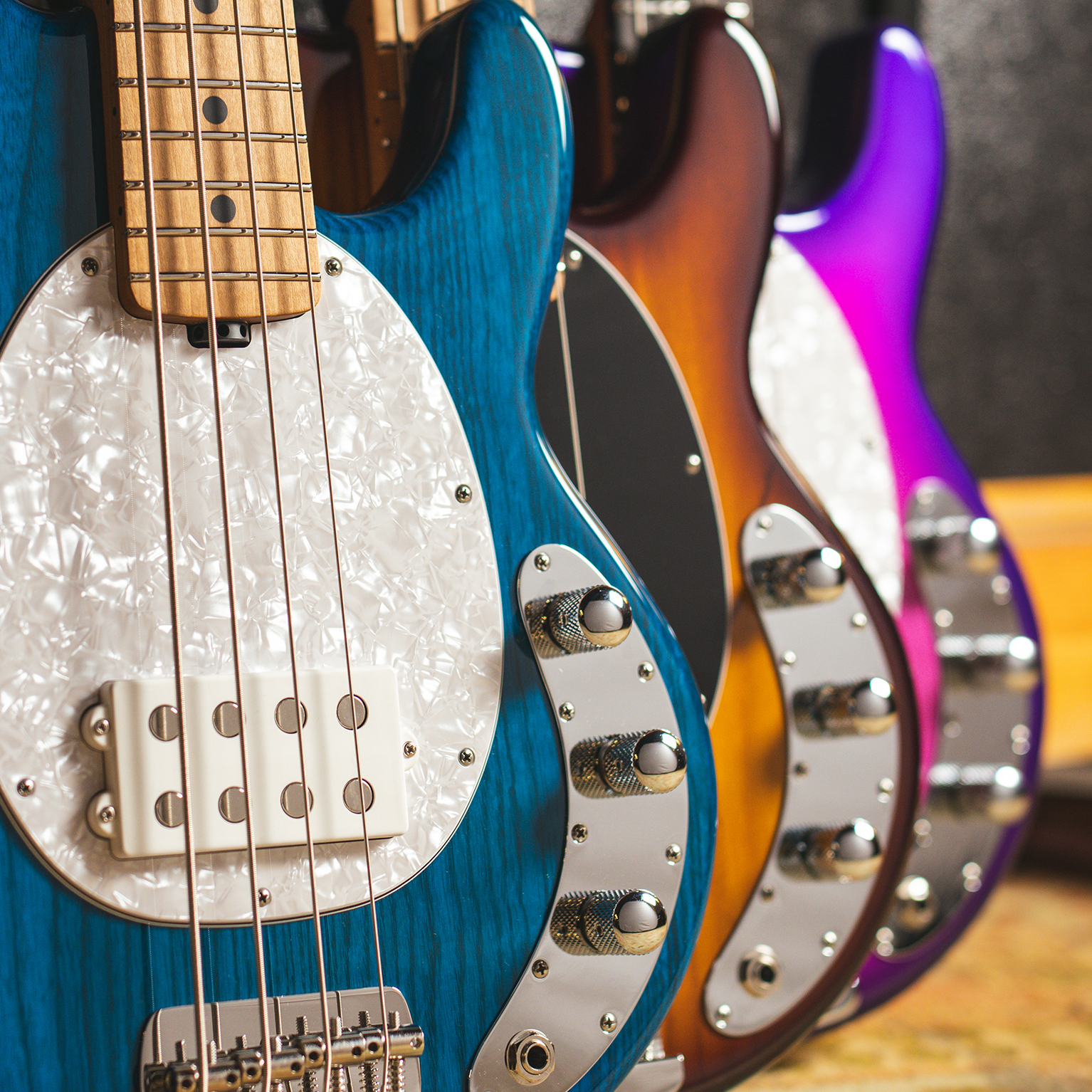

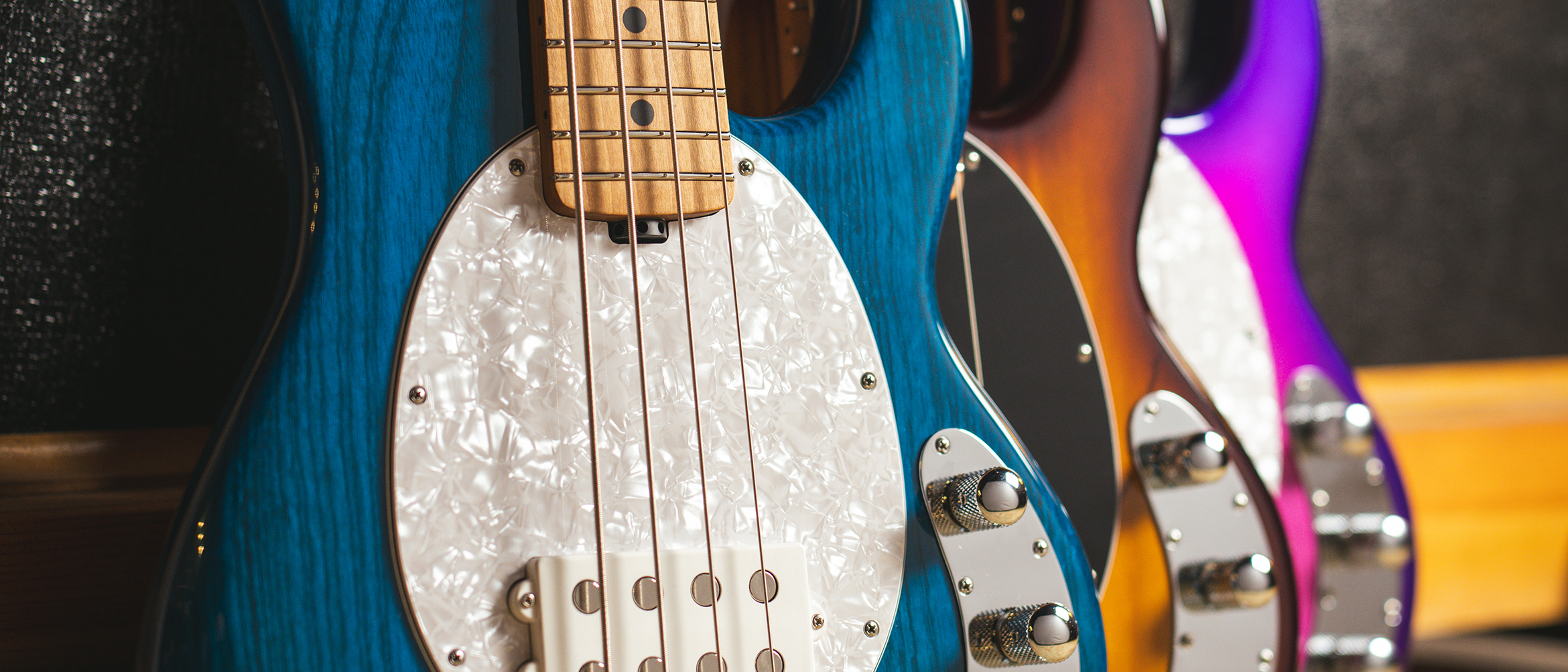

The Ernie Ball Music Man short-scale StingRay bass offers a big thumpy round sound in a convenient smaller package. A 30” scale allows for easier playability due to the shorter spacing between the frets. The Ernie Ball Music Man humbucking pickup, equipped with higher output neodymium magnets, has been specially designed for the short scale bass, providing its signature warm tone. Electronics package includes a 3-way rotary switch featuring parallel, true single-coil, and series modes. Like its big brother the Stingray Special, the short scale bass comes standard with a modern classic bridge, 22 stainless steel frets, and new lightweight Music Man tuning machines with a finer gear ratio.

Short Scale StingRay Logo

OPTIONS

Raspberry Pearl

Ultra Marine Blue

Your Custom Options:

Model:
Colour:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

Short Scale StingRay Highlights

Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Highlight

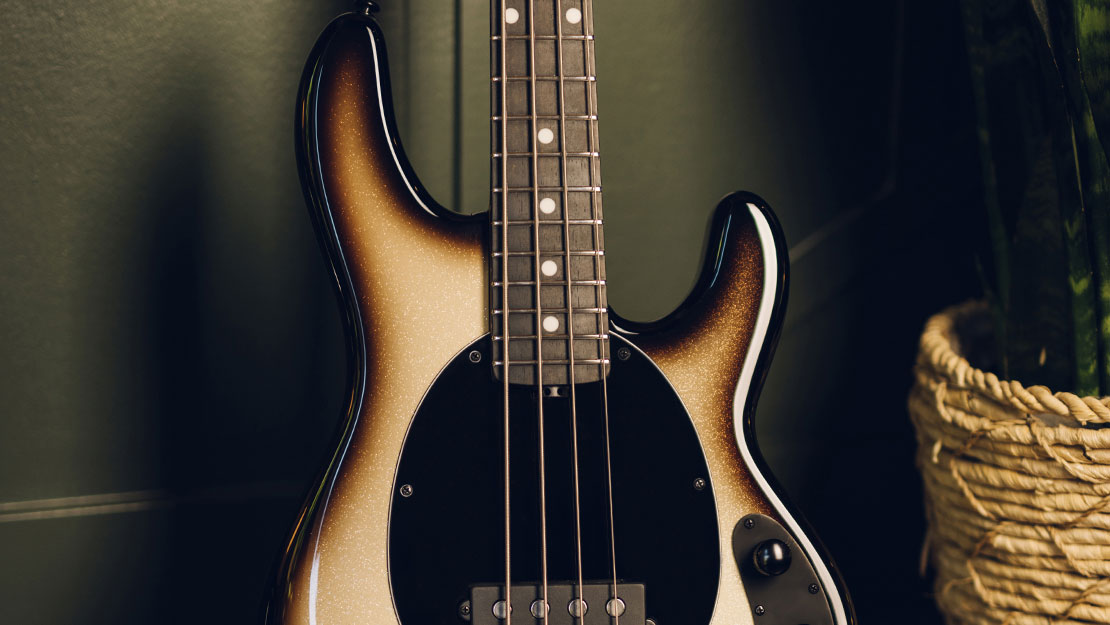

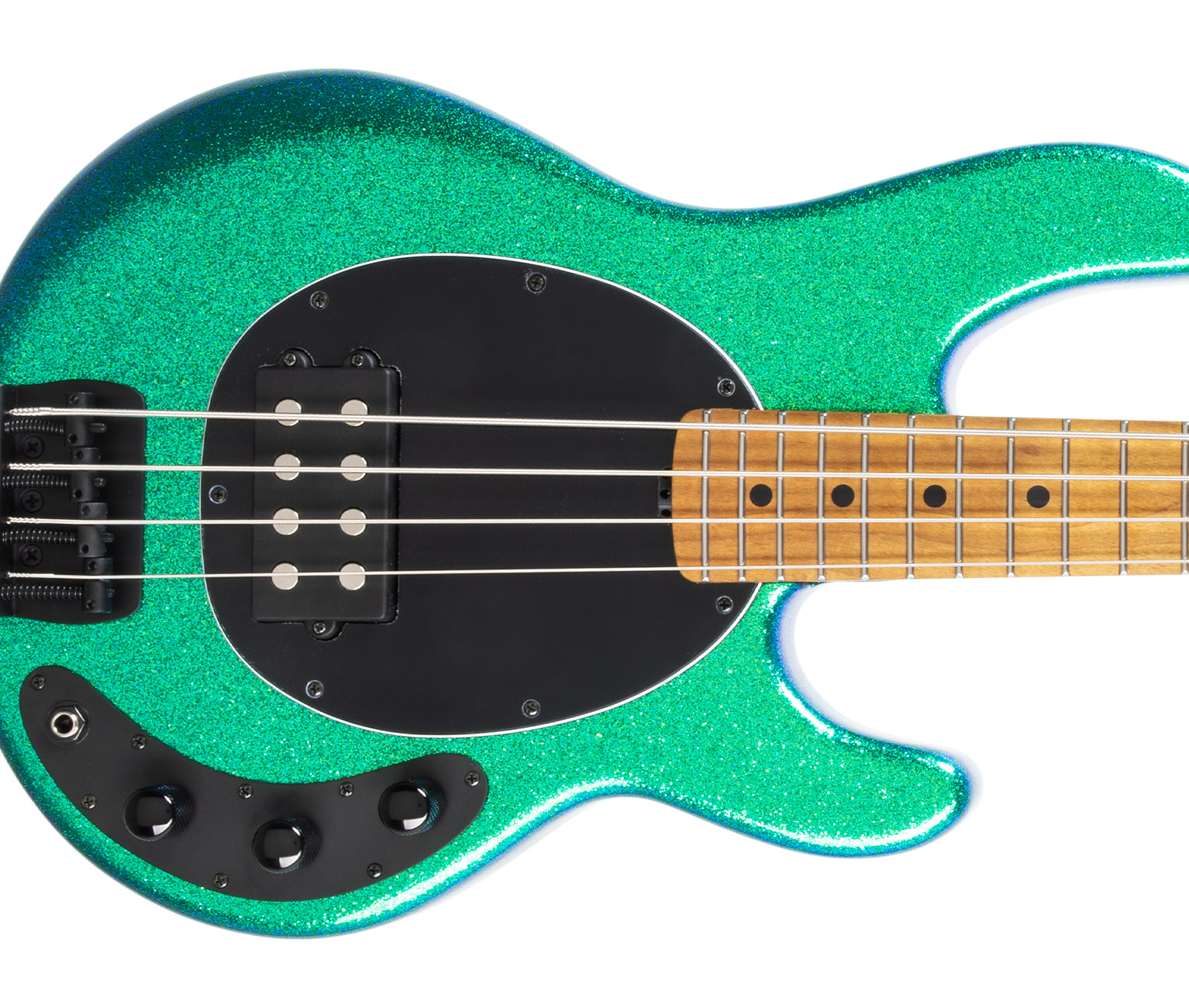

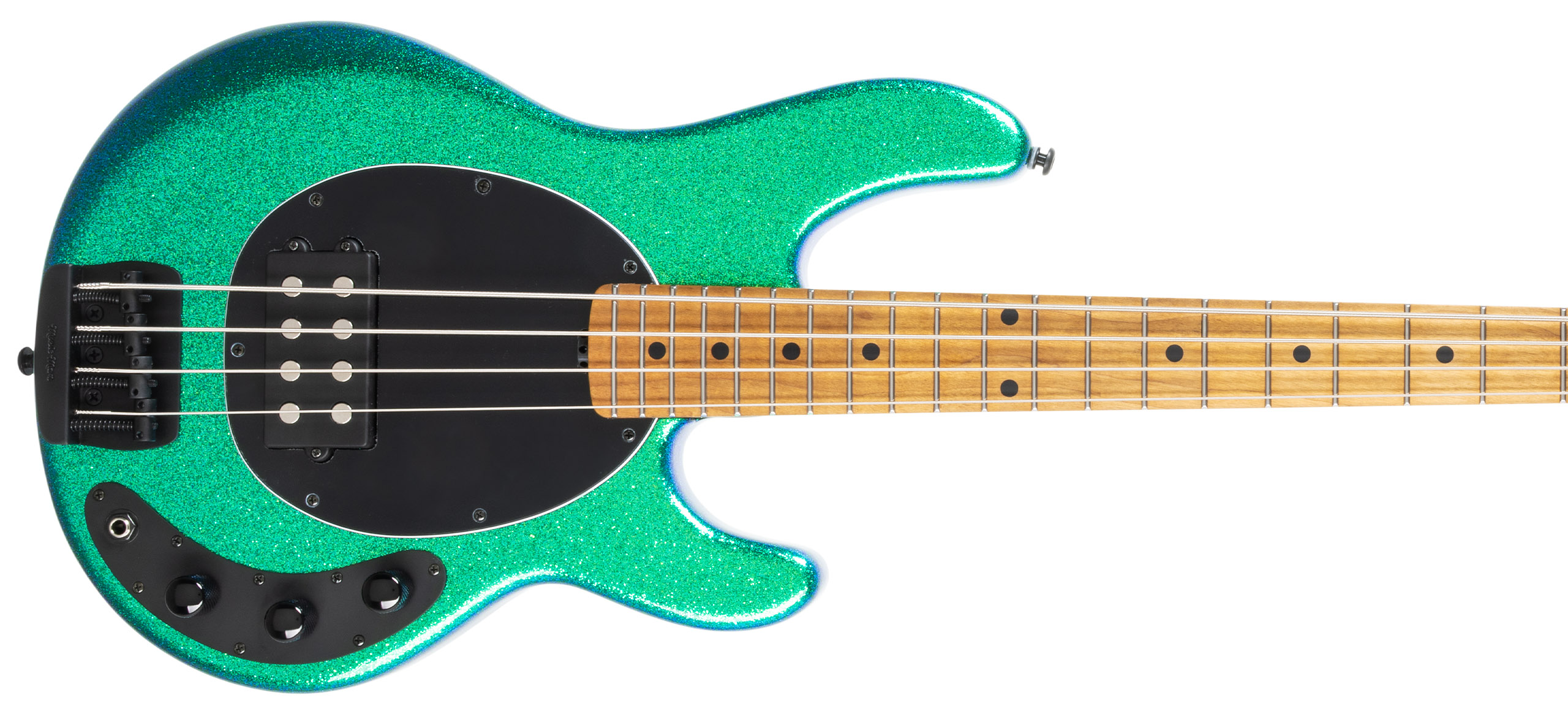

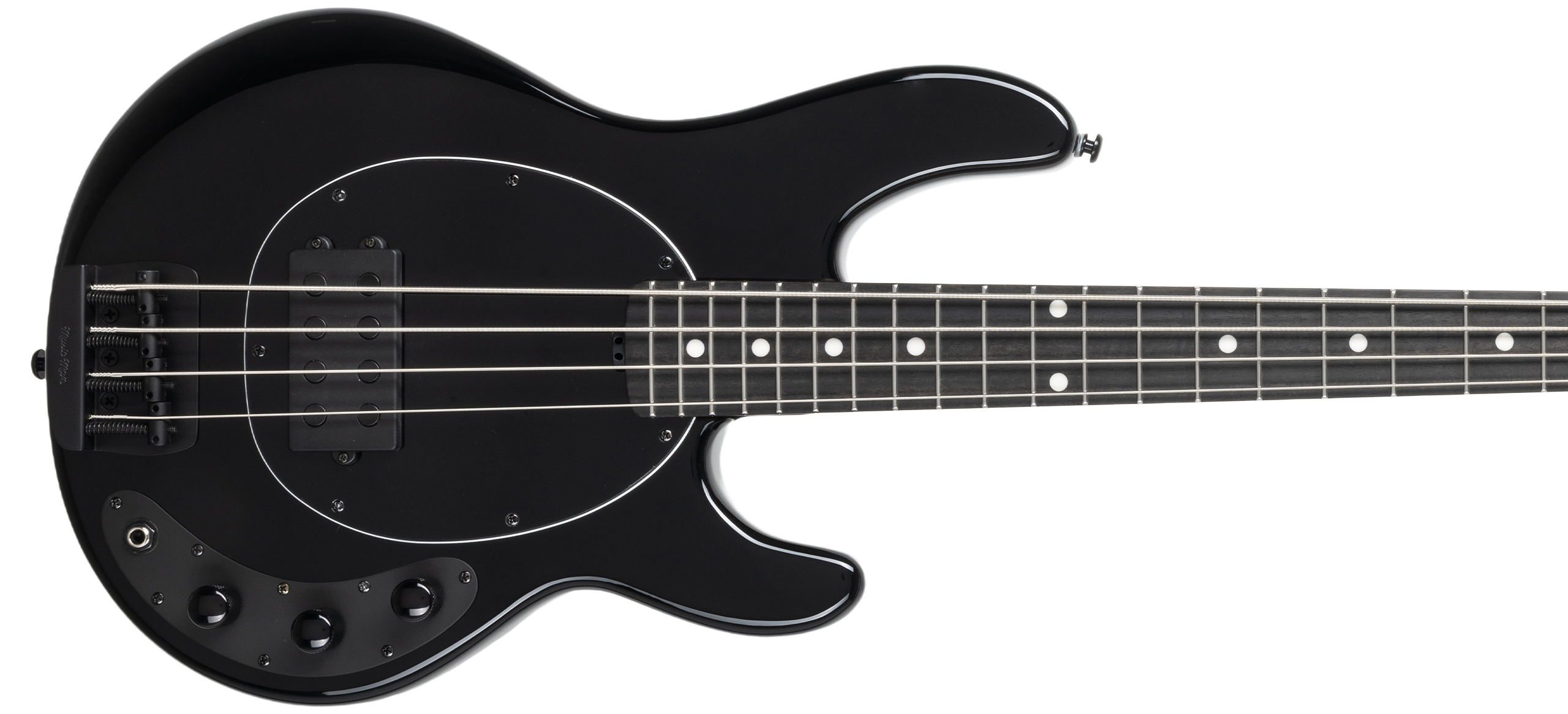

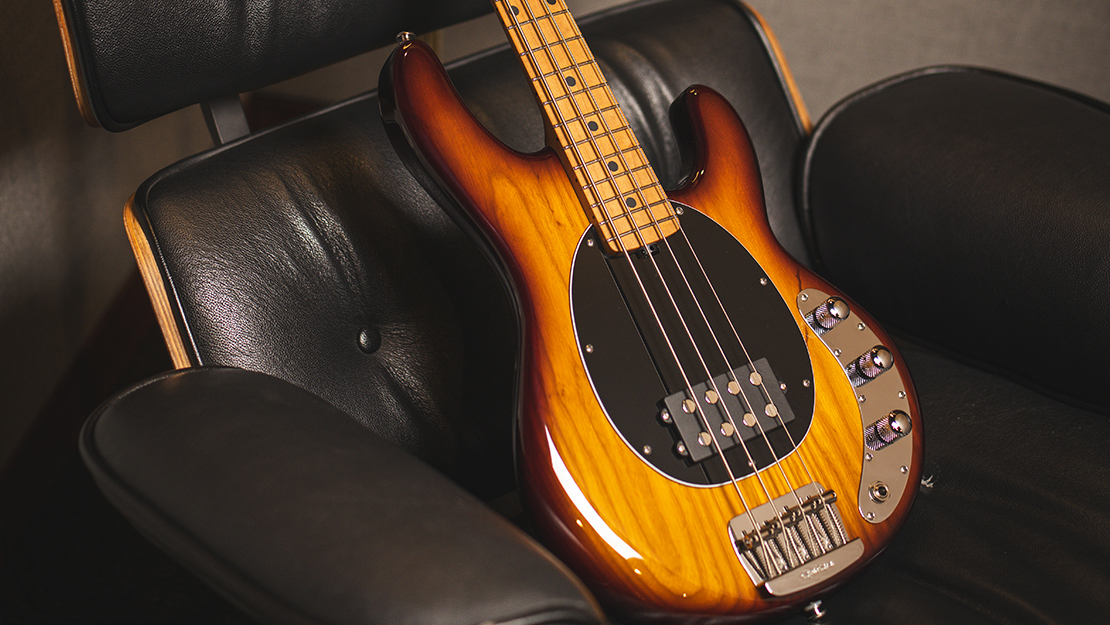

Ash body with rounded arm contour for added comfort
Short Scale StingRay Highlight

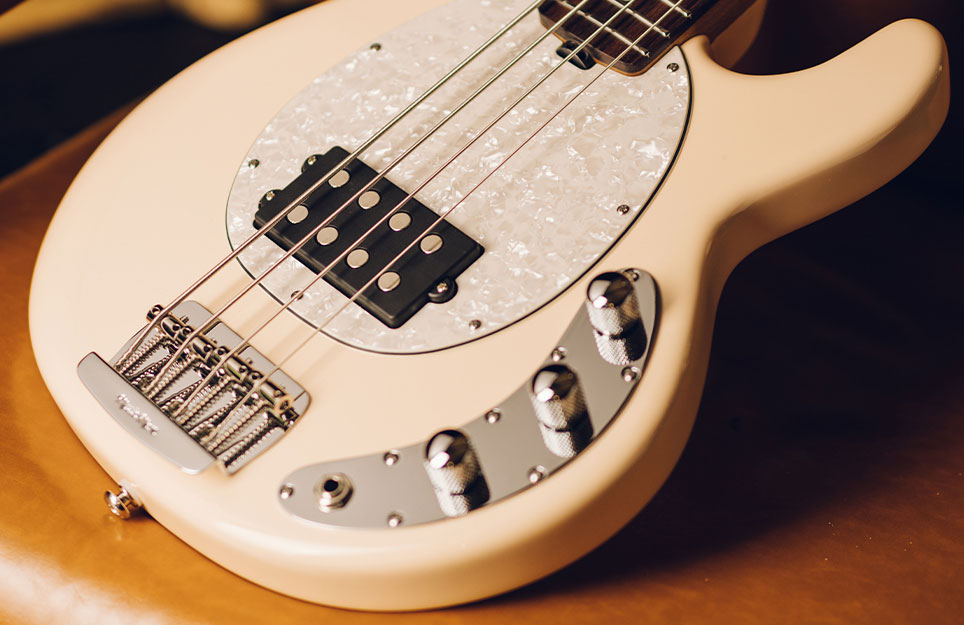

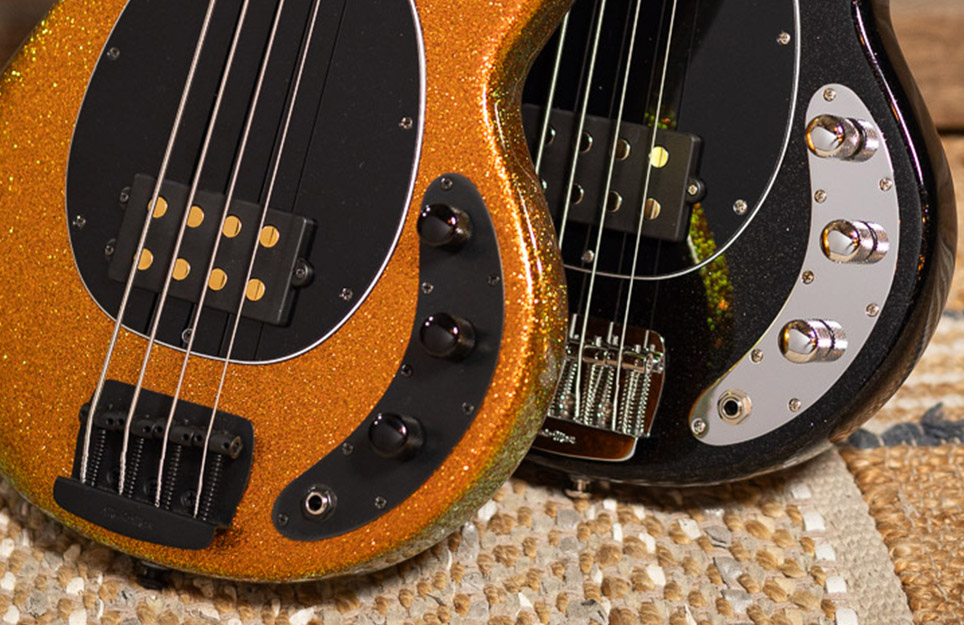

Push/push boost volume pot with 3 position rotary pickup switch
Short Scale StingRay Highlight

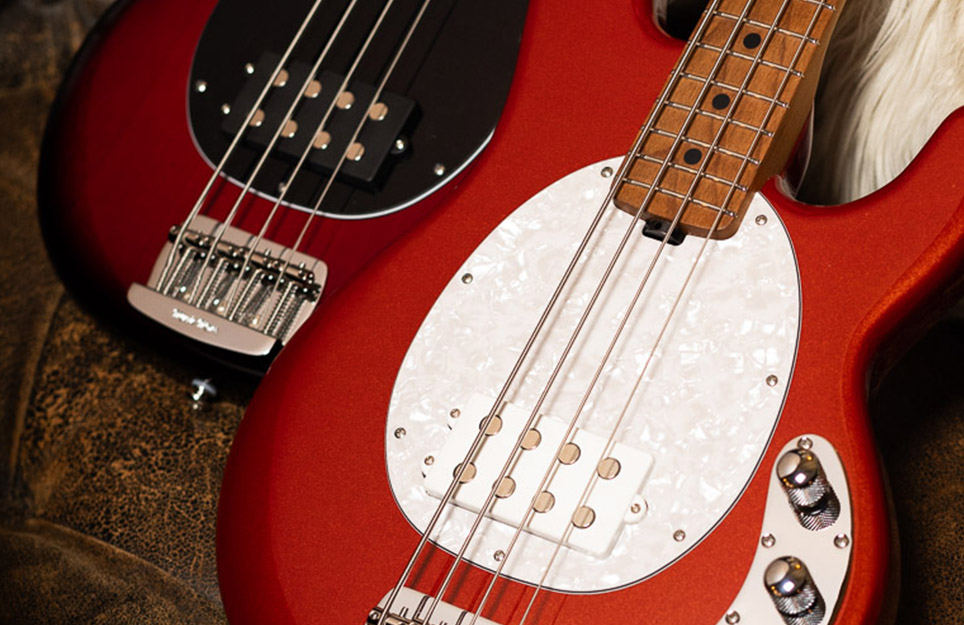

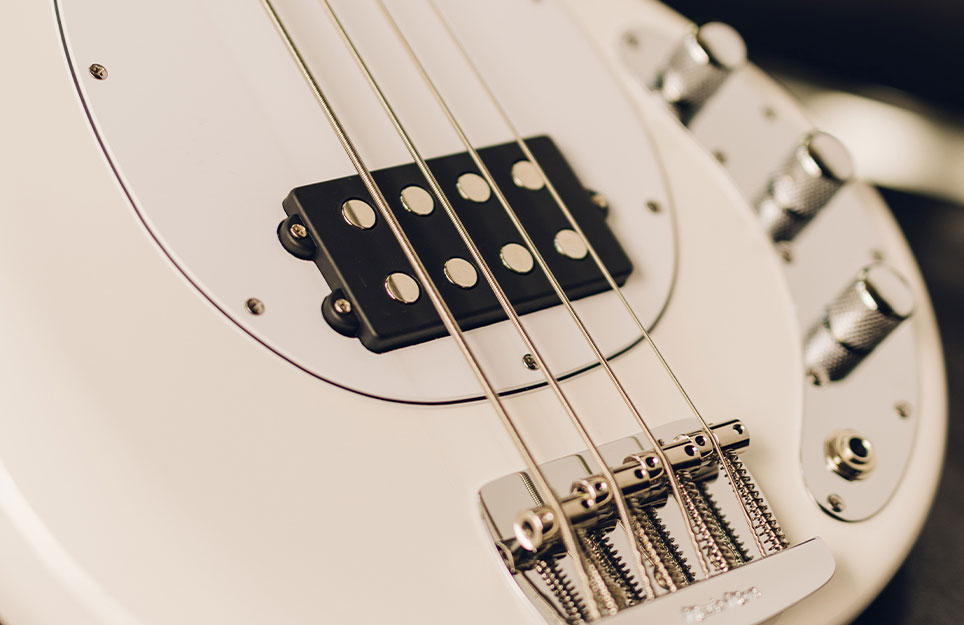

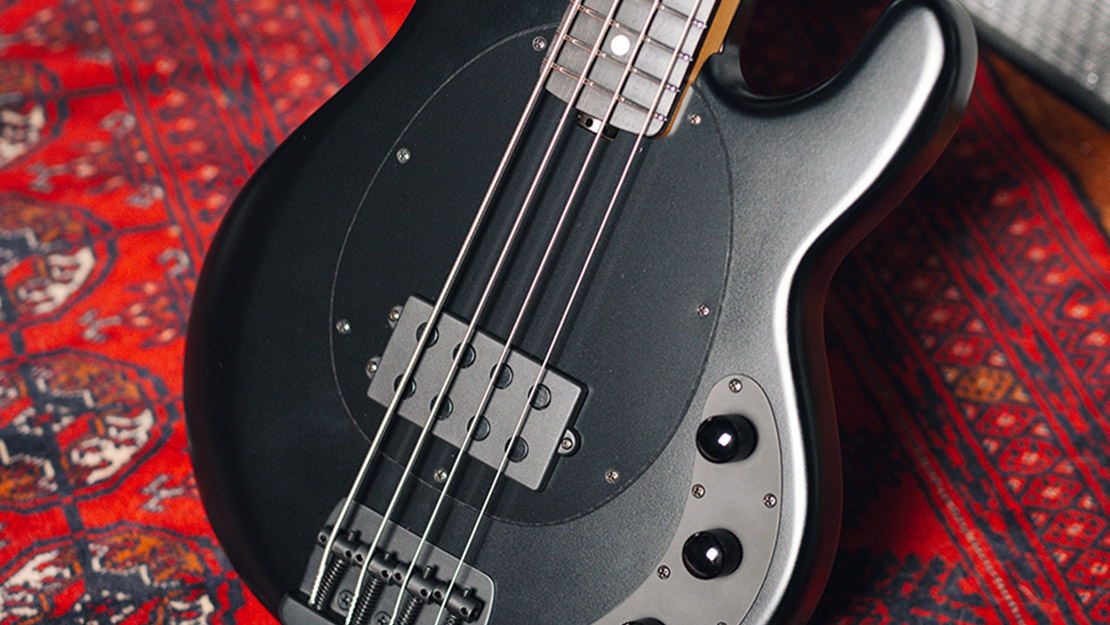

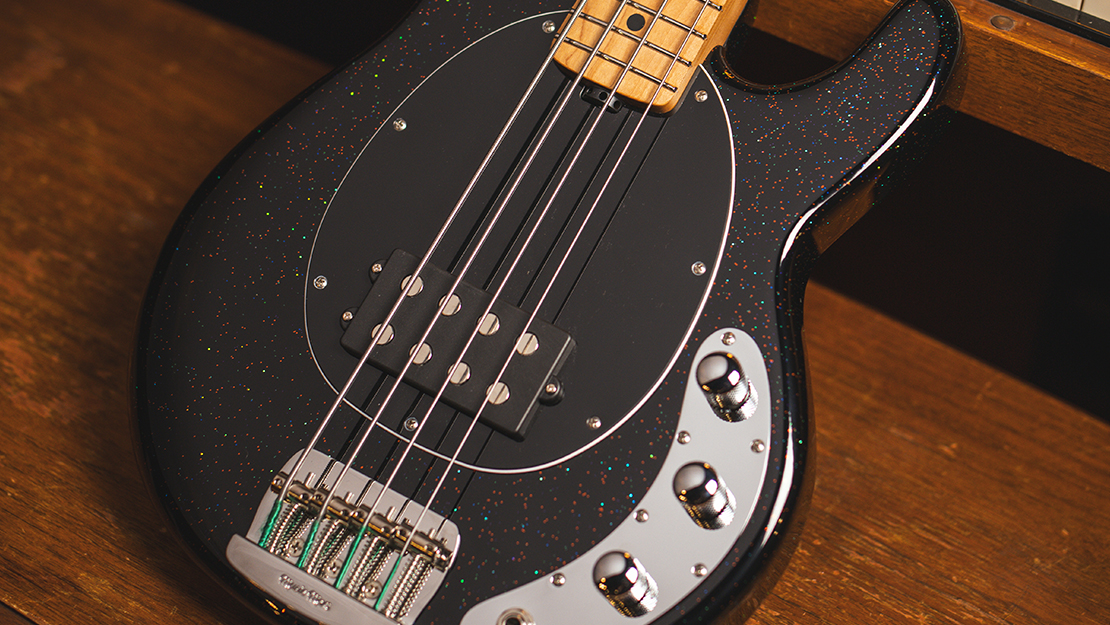

NEODYMIUM HUMBUCKING PICKUP

Specifications, Schematics & More

Specifications Short Scale StingRay Bass
Model Short Scale StingRay Bass
Size 12-3/8" wide, 1-5/8" thick, 40-7/8" long (31.4 cm wide, 4.1 cm thick, 103.8 cm long)
Body Wood Ash
Body Finish High gloss polyester
Bridge Vintage Music Man® top loaded chrome plated, steel bridge plate with vintage nickel plated steel saddles
Scale Length 30" (76.2 cm)
Frets 22 - High profile, wide stainless steel
Neck Width 1-1/2" (38.1 mm) at the nut, 2-3/8" (60.3 cm) at the last fret
Neck Wood Select Maple
Fret Markers 5/16" Dot Inlay
Neck Finish Gunstock oil and hand-rubbed special wax blend

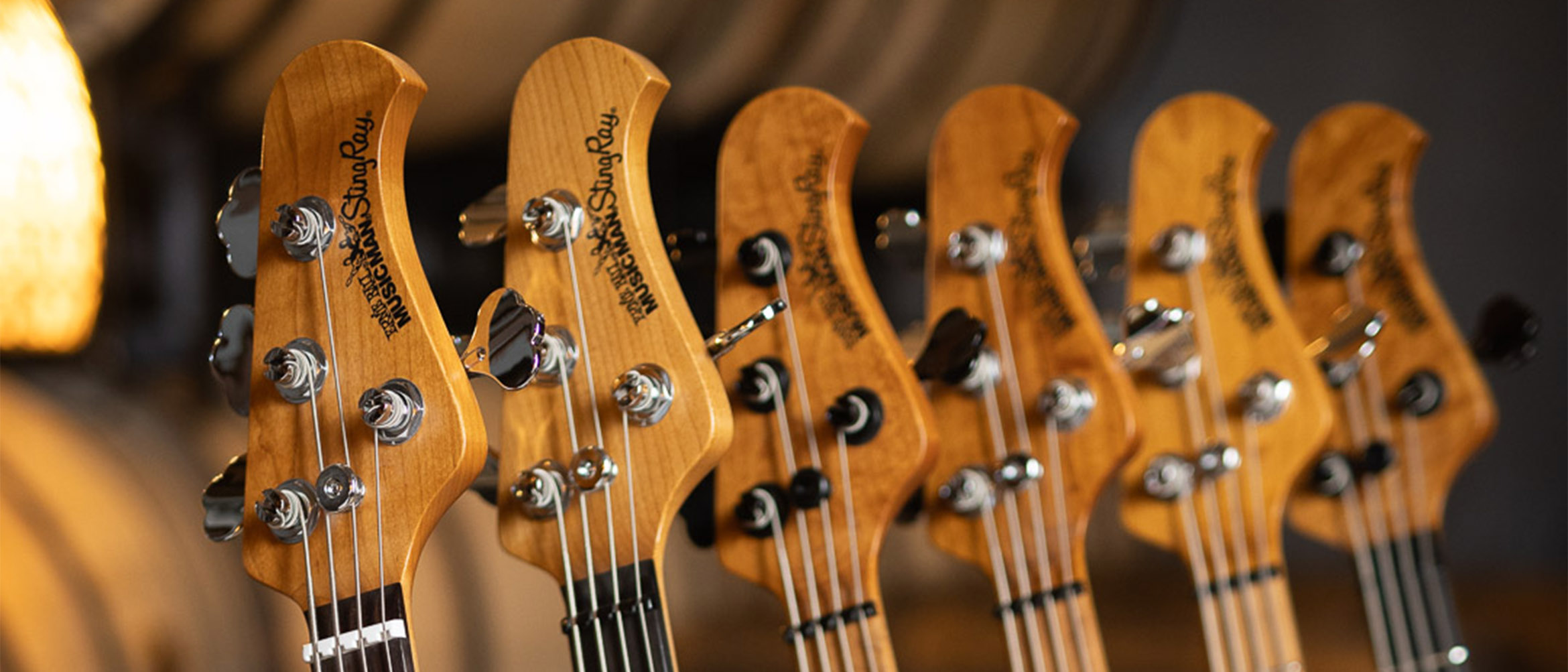

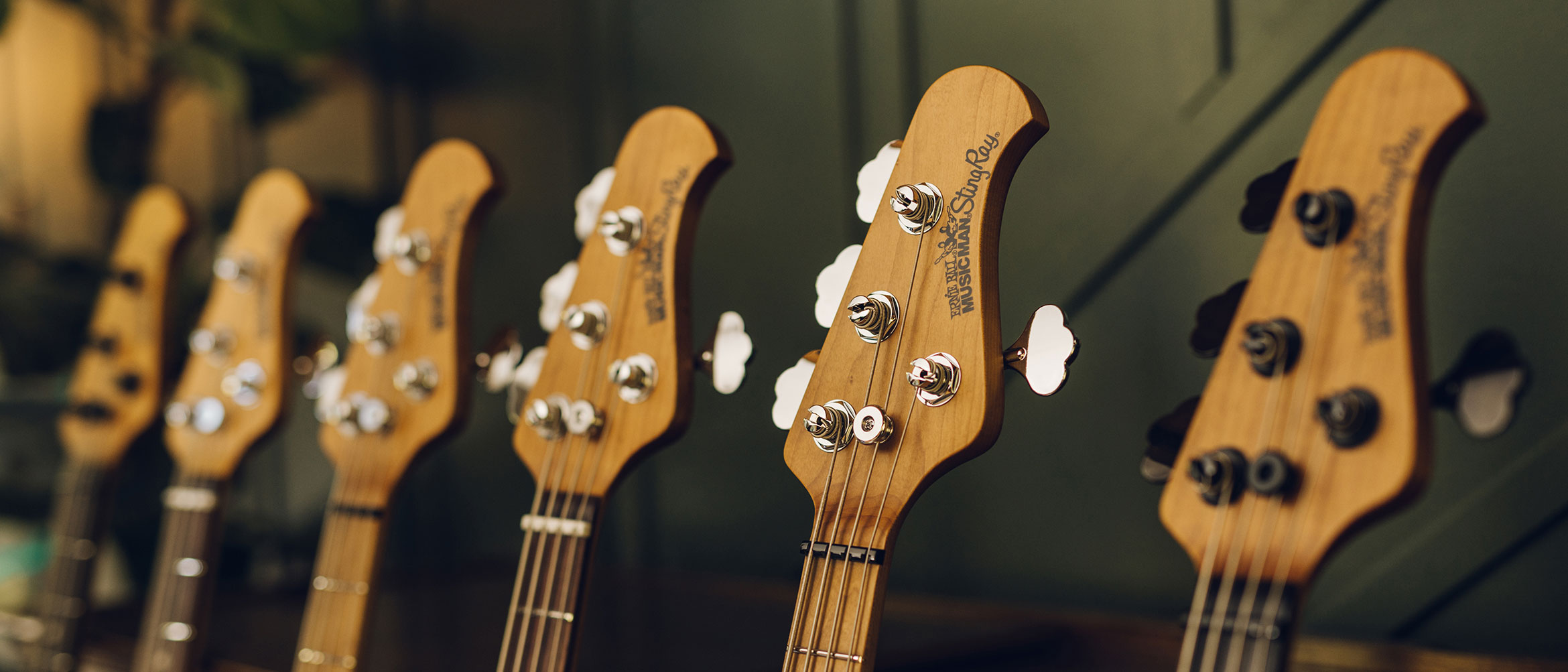

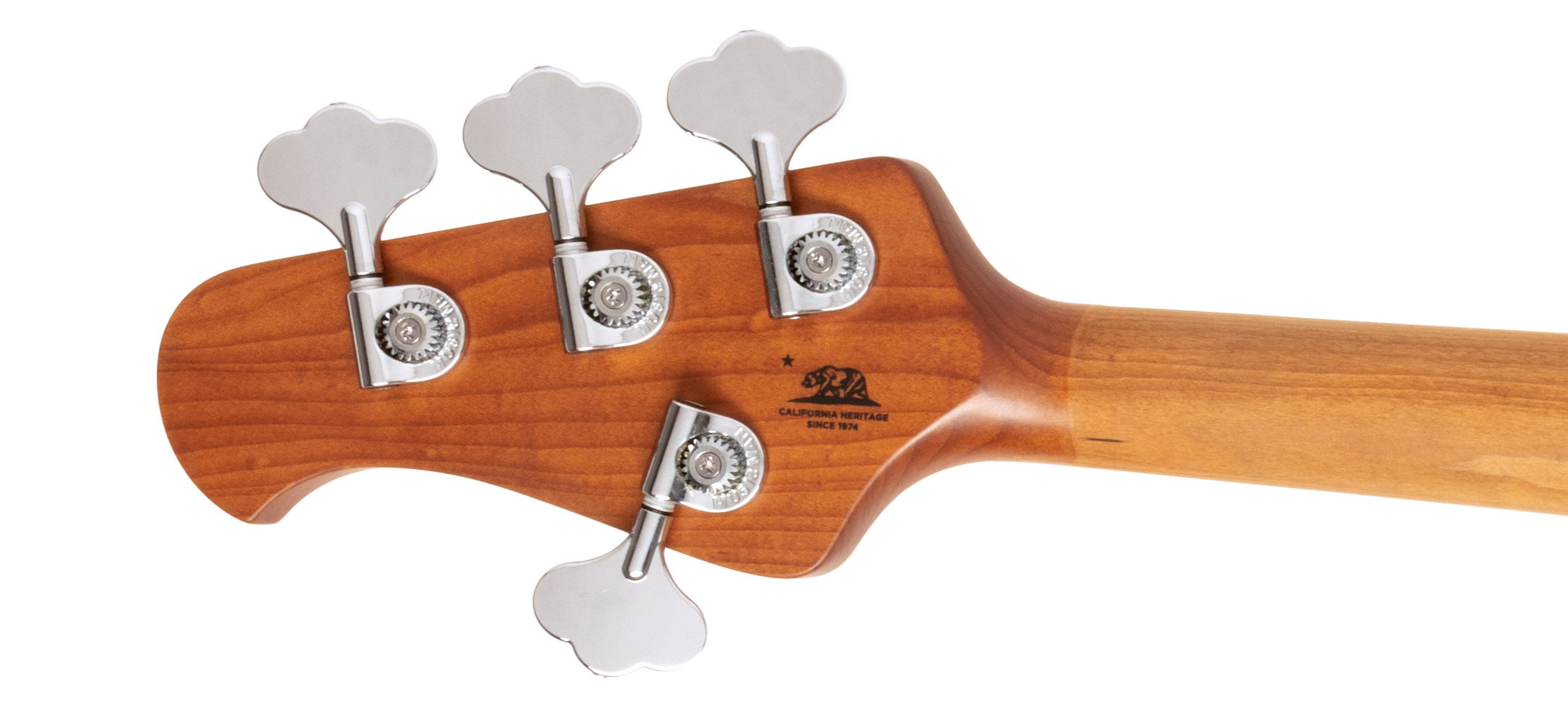

Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal

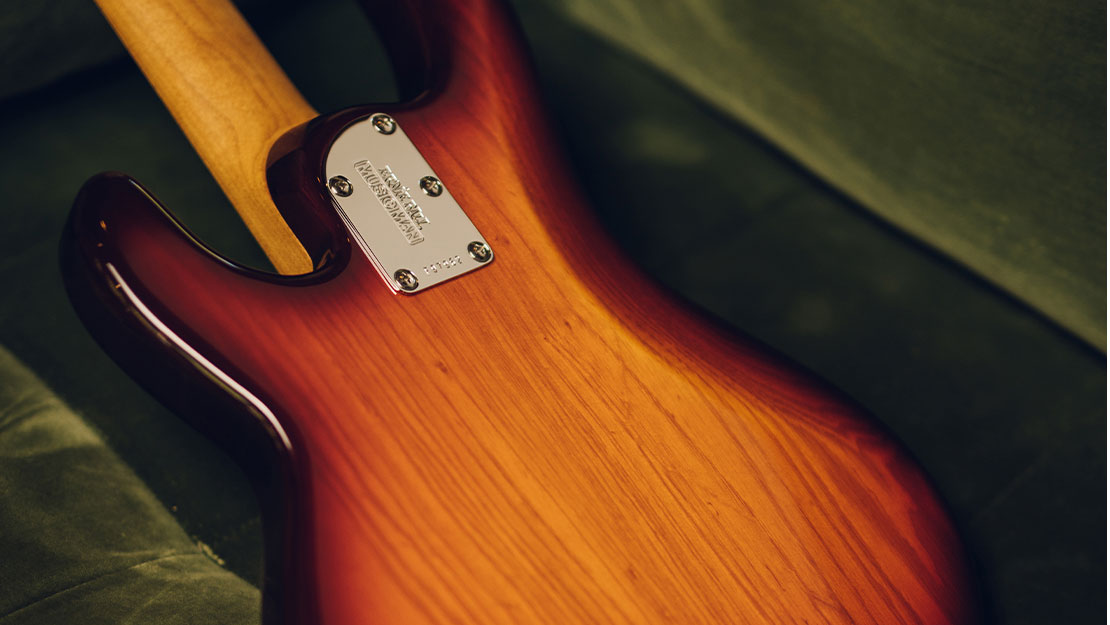

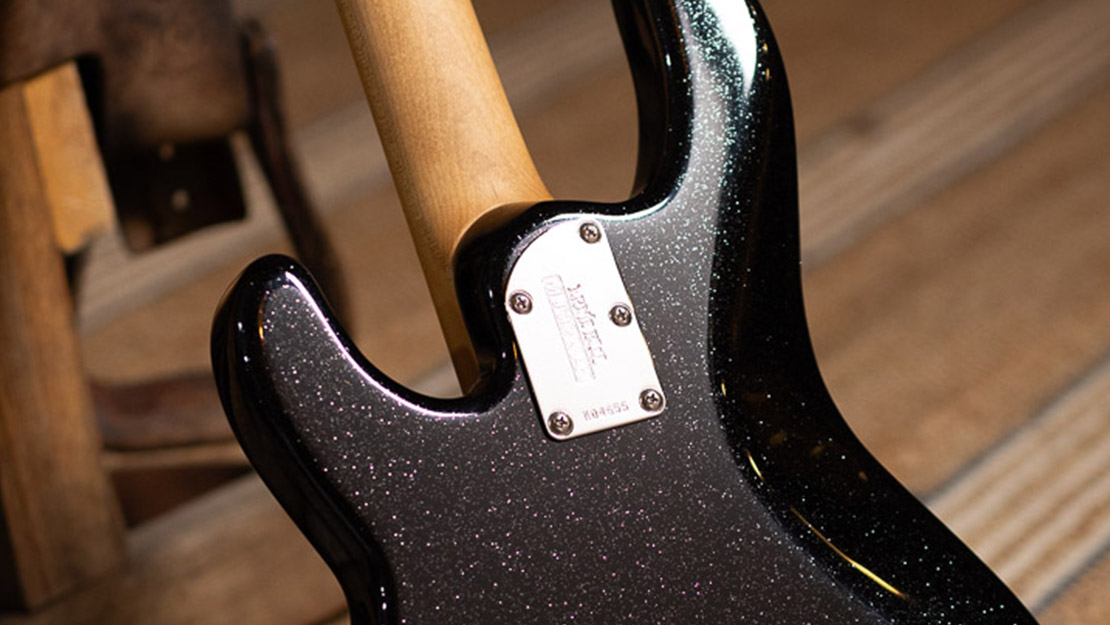

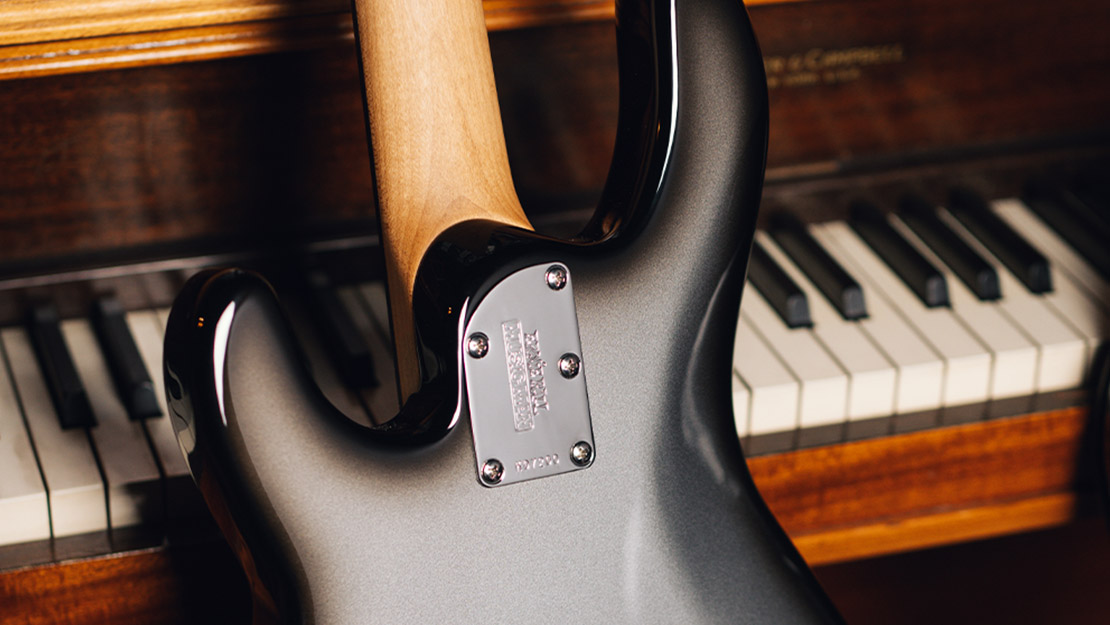

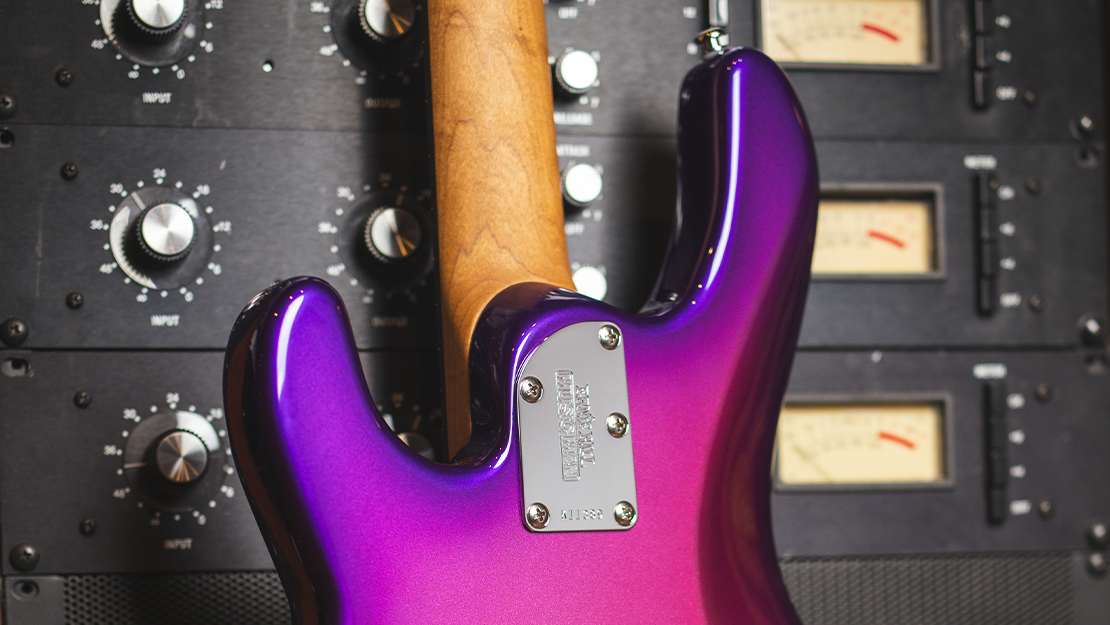

Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Chrome plated aluminum control cover

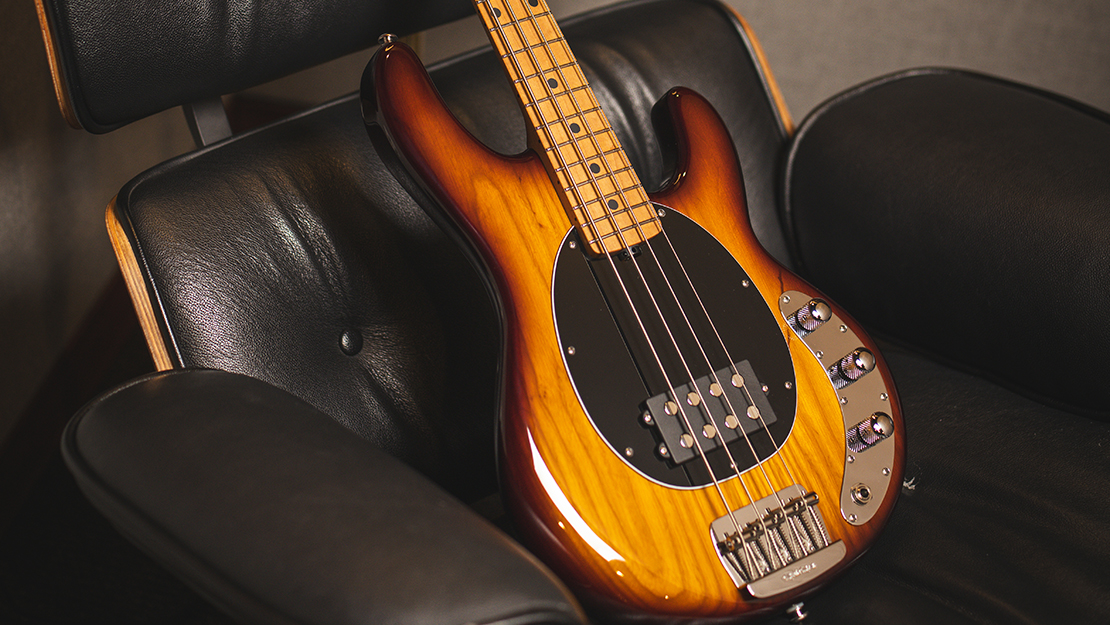

Controls Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap
Switching 3-way rotary pickup selector
Pickups Single Music Man humbucking pickup- neodymium magnets
Left Handed No
Strings 45w-65w-85w-105w (Short Scale Regular Slinky Bass #2852)

id => 82

iid => 82

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2019-08-14 08:32:49

updated_at => 2019-08-14 08:32:49

Specifications Short Scale StingRay Bass
Model Short Scale StingRay Bass
Order 0
Size 12-3/8" wide, 1-5/8" thick, 40-7/8" long (31.4 cm wide, 4.1 cm thick, 103.8 cm long)
Body Wood Ash
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Vintage Music Man® top loaded chrome plated, steel bridge plate with vintage nickel plated steel saddles
Pickguard
Scale Length 30" (76.2 cm)
Neck Radius
Headstock Size
Frets 22 - High profile, wide stainless steel
Neck Width 1-1/2" (38.1 mm) at the nut, 2-3/8" (60.3 cm) at the last fret
Neck Wood Select Maple
Fingerboard
Fret Markers 5/16" Dot Inlay
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Chrome plated aluminum control cover
Controls Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap
Switching 3-way rotary pickup selector
Pickups Single Music Man humbucking pickup- neodymium magnets
Left Handed No
Strings 45w-65w-85w-105w (Short Scale Regular Slinky Bass #2852)
