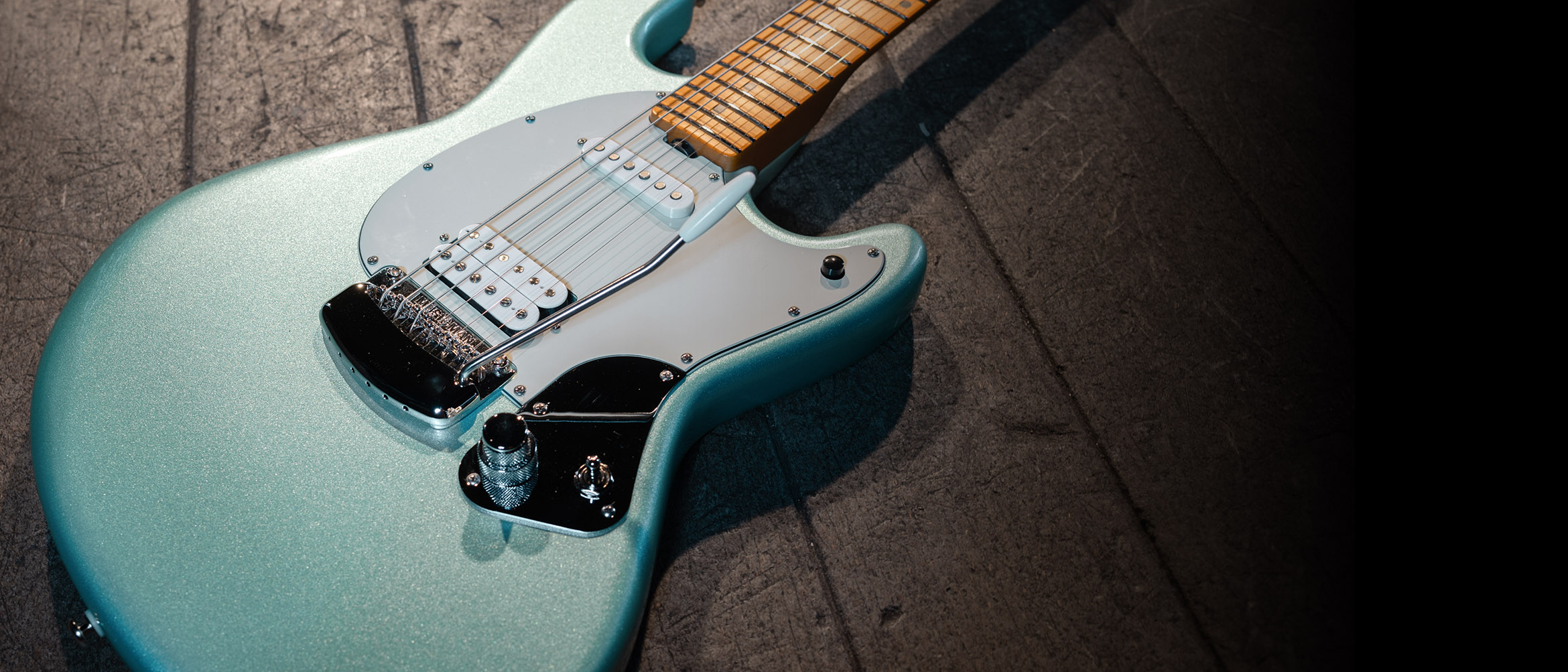

The Ernie Ball Music Man Dustin Kensrue StringRay Artist Series guitar is a collaboration between our award-winning design team and the acclaimed singer-songwriter and guitarist of Thrice, Dustin Kensrue. Featuring innovative design characteristics engineered specifically for Dustin’s playing style, the Kensrue StingRay offers unique features and finishes that offers players a new look at one of our most popular models.

Dustin Kensrue Logo

OPTIONS

Dark Satin Tobacco Burst

Your Custom Options:

Model:
Colour:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

Dustin Kensrue Highlights

Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Slide
Dustin Kensrue Highlight
Dark Satin Tobacco Burst Finish
Dustin Kensrue Highlight

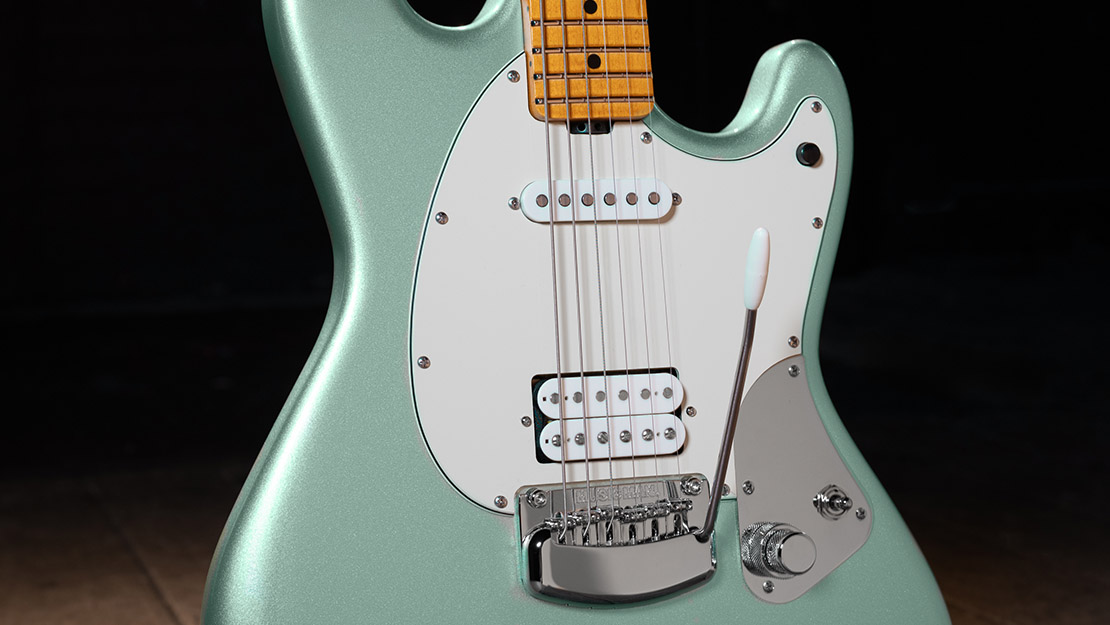

Custom Wound Music Man Pickups
Dustin Kensrue Highlight

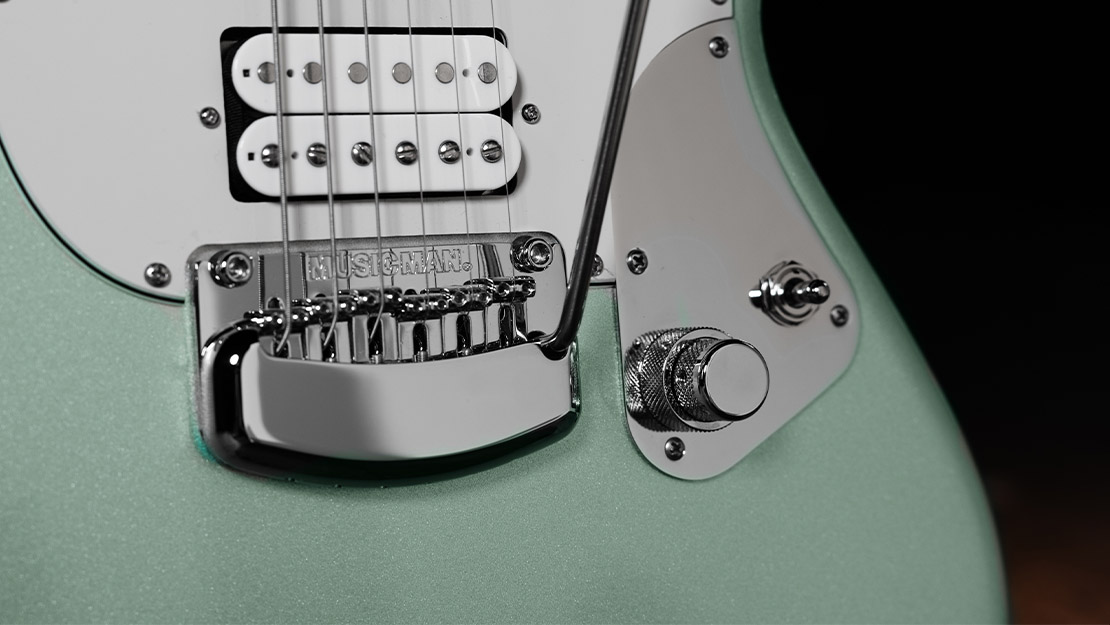

Stacked Volume and Tone Control With Three-Way Pickup Selector

Specifications, Schematics & More

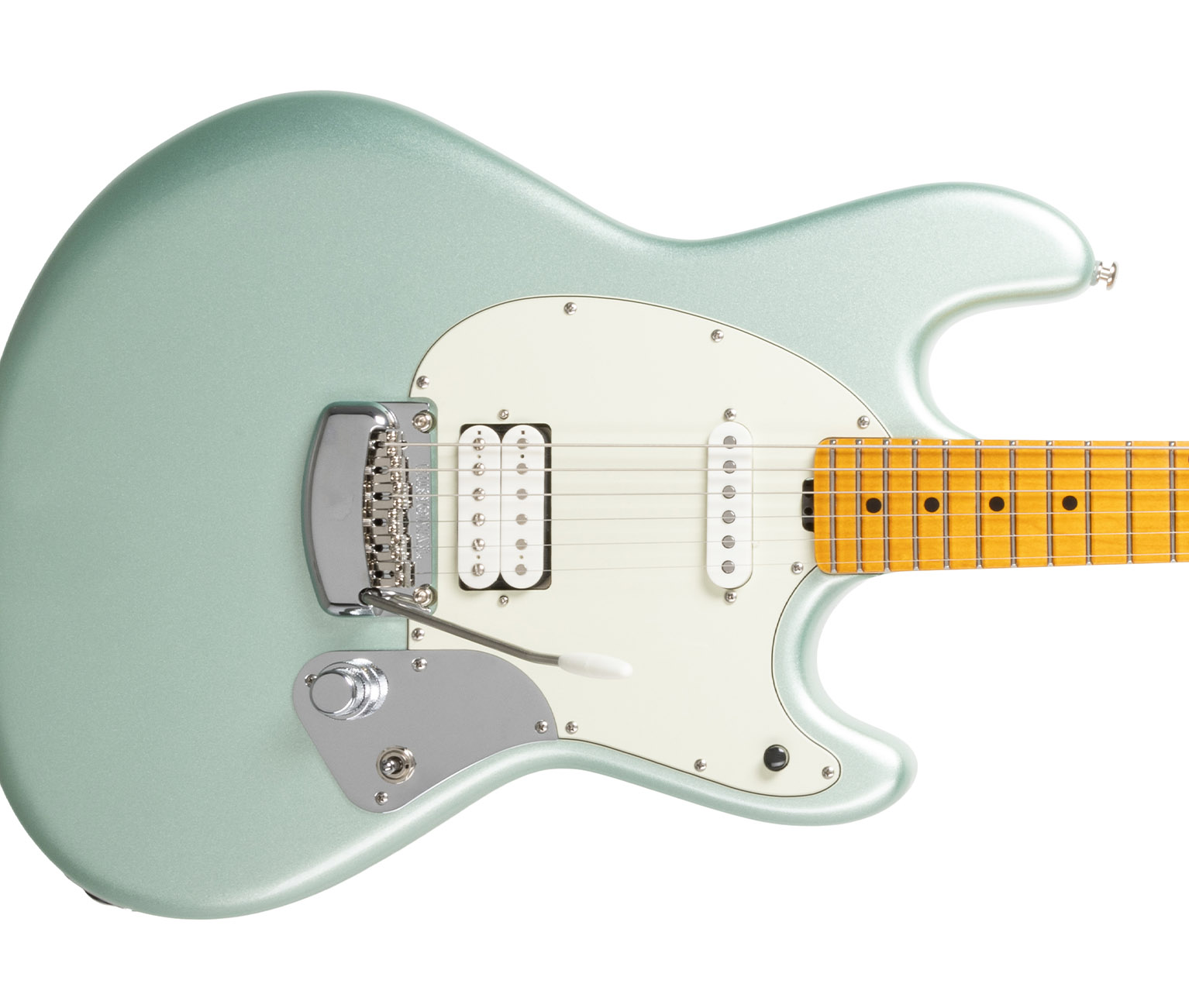

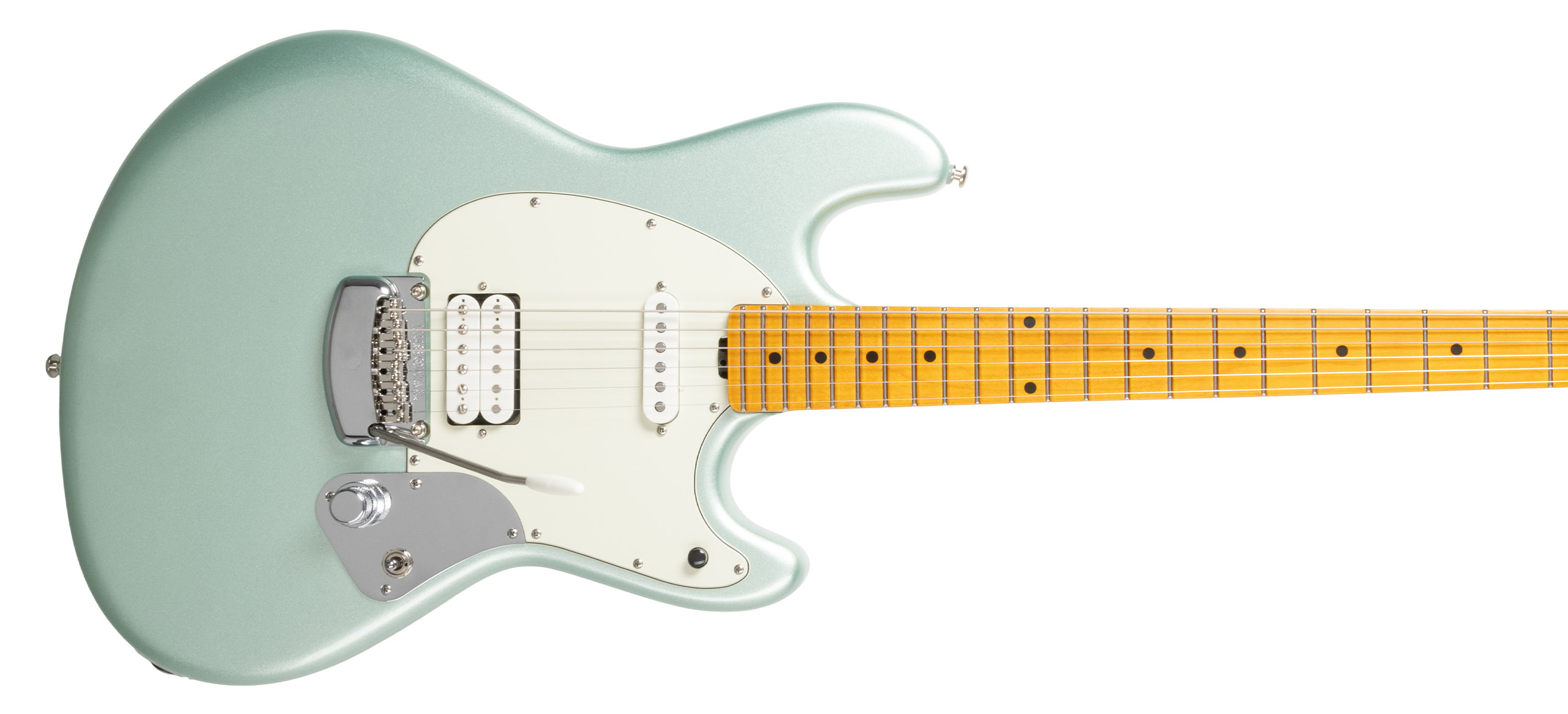

Specifications Dustin Kensrue StingRay Guitar
Model Dustin Kensrue StingRay Guitar
Size 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long)
Body Wood African Mahogany
Body Finish Satin
Body Colours Dark Satin Tobacco Burst
Body Bindings N/A
Bridge Music Man® Modern tremolo with vintage bent steel saddles
Pickguard Black
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width, Stainless Steel
Neck Width 2-1/4" (56.9 mm)
Neck Wood Select maple neck
Fingerboard Maple
Fret Markers 1/4" Black Dot inlay
Neck Finish Ultra-light satin polyurethane finish
Neck Colours Dark Classic Tint
Neck Binding N/A
Tuning Machines Schaller M6-IND locking

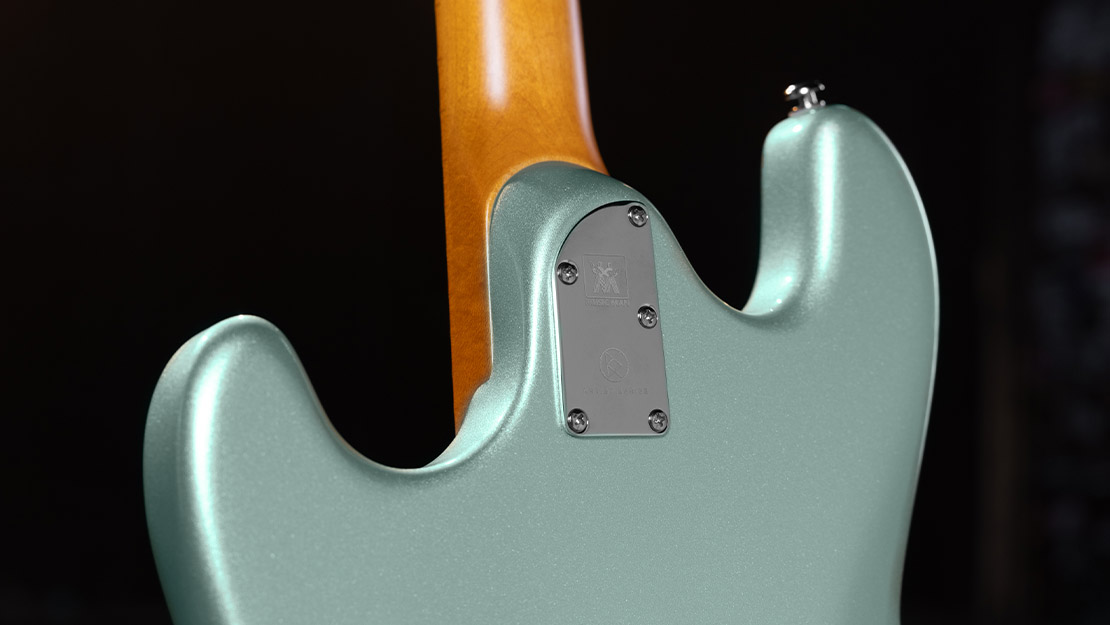

Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Passive Concentric 500kohm Volume/Tone POT - 0.022uf tone capacitor; 3-way pickup selector switch; mode switch to bypass controls (stereo)
Switching 3-way toggle, mode button
Left Handed No
Strings 11p-14p-18p-32w-44w-58w (RPS Slinky), D Standard Tuning

id => 78

iid => 78

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2019-04-02 08:56:39

updated_at => 2019-04-02 08:56:39

Specifications Dustin Kensrue StingRay Guitar
Model Dustin Kensrue StingRay Guitar
Order 0
Size 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long)
Body Wood African Mahogany
Body Finish Satin
Body Colors Dark Satin Tobacco Burst
Body Bindings N/A
Bridge Music Man® Modern tremolo with vintage bent steel saddles
Pickguard Black
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width, Stainless Steel
Neck Width 2-1/4" (56.9 mm)
Neck Wood Select maple neck
Fingerboard Maple
Fret Markers 1/4" Black Dot inlay
Neck Finish Ultra-light satin polyurethane finish
Neck Colors Dark Classic Tint
Neck Binding N/A
Tuning Machines Schaller M6-IND locking
Truss Rod
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Passive Concentric 500kohm Volume/Tone POT - 0.022uf tone capacitor; 3-way pickup selector switch; mode switch to bypass controls (stereo)
Switching 3-way toggle, mode button
Pickups
Left Handed No
Strings 11p-14p-18p-32w-44w-58w (RPS Slinky), D Standard Tuning
