This JP guitar is a celebration of the original John Petrucci BFR model. Featuring an alder body with a mahogany tone block and figured maple top for a complex depth of tone and articulation. Offering a slim Honduran Mahogany neck with East Indian Rosewood fingerboard and stainless steel frets which combine to provide a lightning-fast playing experience. The guitar is powered by high output Dimarzio Liquifire & Crunch Lab humbuckers with a coil-splitting tone pot and the acoustic sounds of a piezo-equipped bridge. A 3-way switch on the upper horn allows you to toggle between or combine the sounds of the humbuckers and piezo system while a pair of output jacks allow you to run the guitar in mono or stereo. The Ernie Ball Music Man floating JP tremolo system works in tandem with Schaller locking tuners to provide exceptional tuning stability. Available in a 6 or 7 string and delivered in an Ernie Ball Music Man hardshell case.

John Petrucci Figured Top Logo

OPTIONS

Dragon Blood Flame

Dragon Blood Quilt

Island Burst Koa

Your Custom Options:

Model:
Colour:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

John Petrucci Figured Top Highlights

John Petrucci Figured Top Slide
John Petrucci Figured Top Slide
John Petrucci Figured Top Slide
John Petrucci Figured Top Slide
John Petrucci Figured Top Slide
John Petrucci Figured Top Slide
John Petrucci Figured Top Slide
John Petrucci Figured Top Slide
John Petrucci Figured Top Highlight

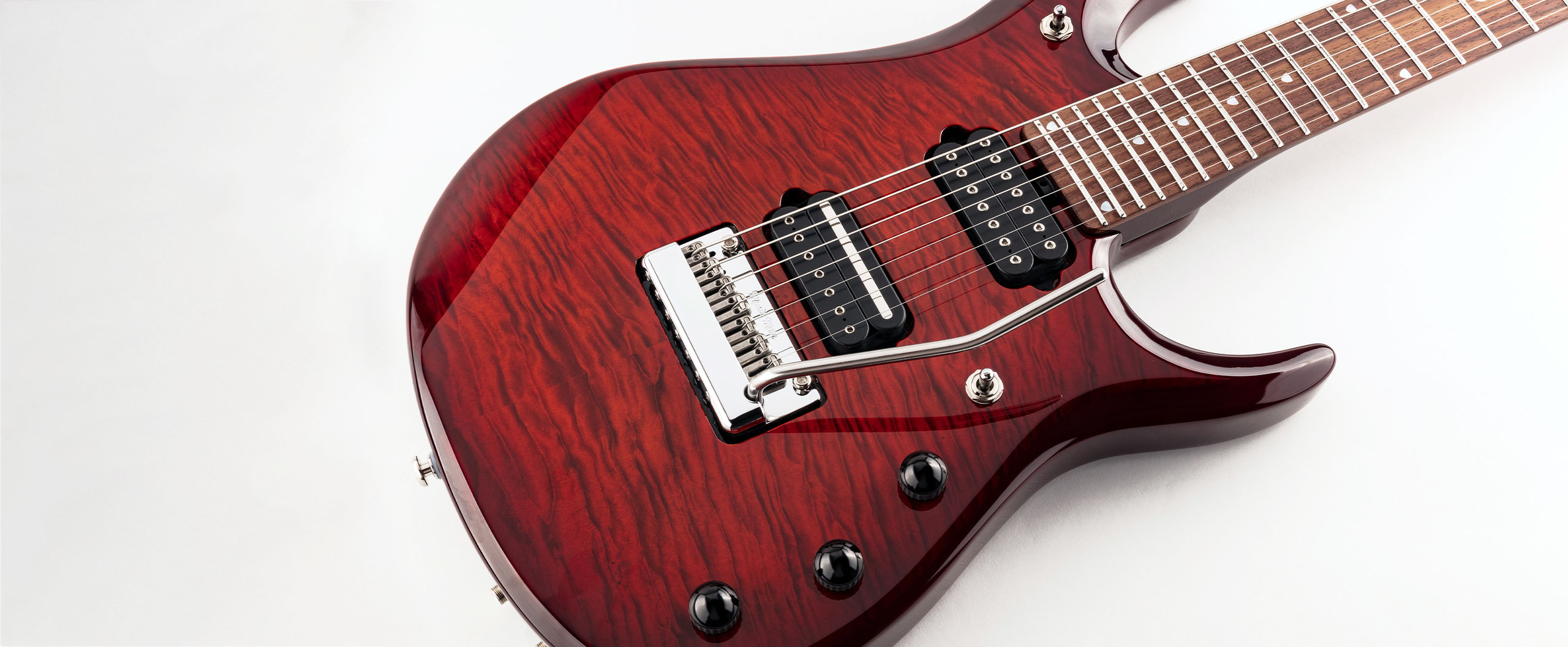

DiMarzio Liquifire & Crunch Lab humbuckers and piezo-equipped tremolo.
John Petrucci Figured Top Highlight

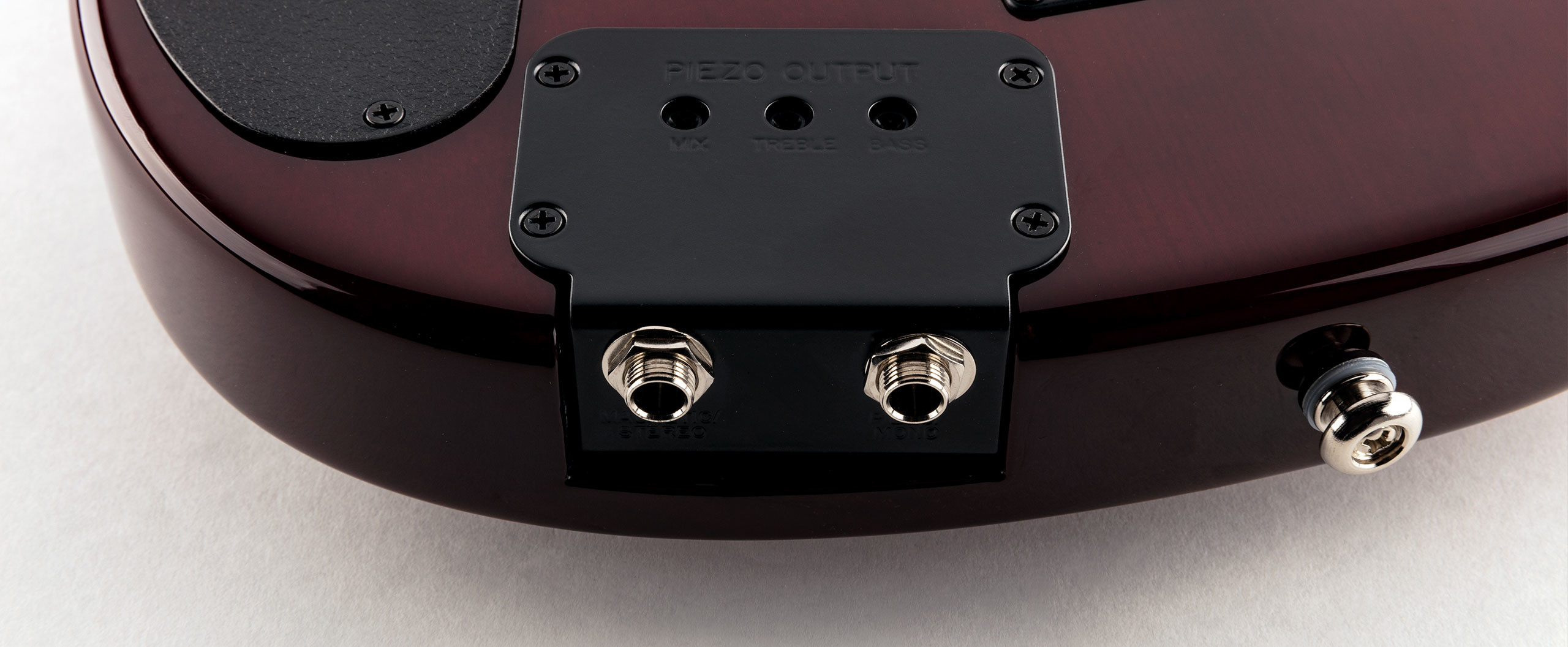

Mono or stereo output.
John Petrucci Figured Top Highlight

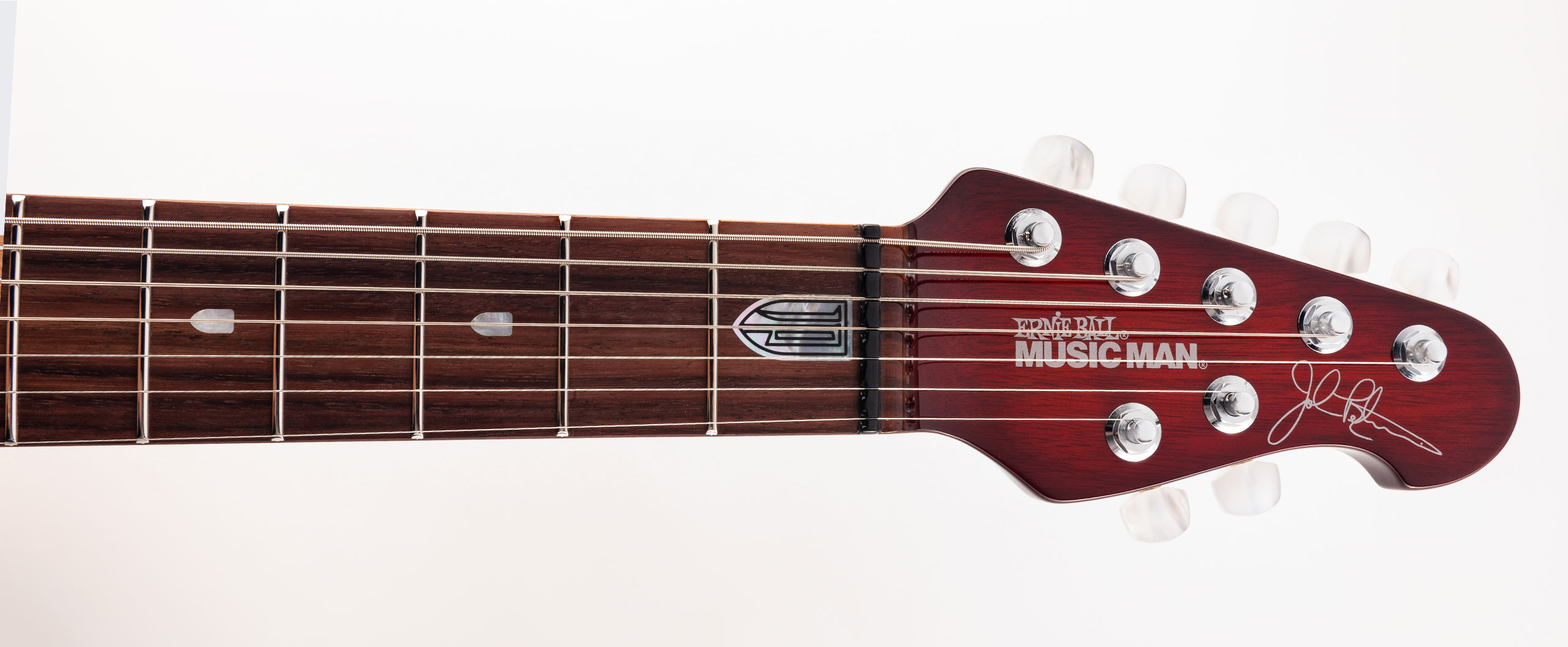

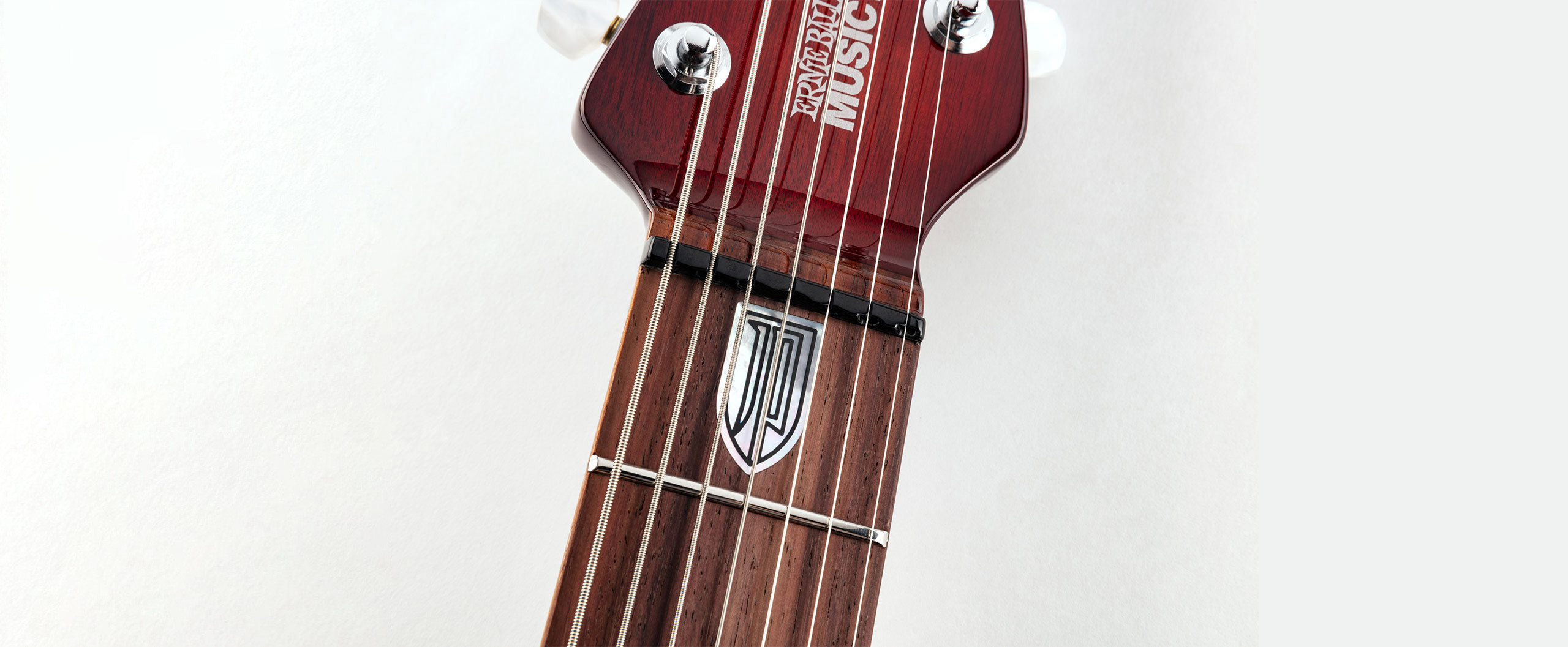

Patented compensated nut for improved intonation.

Specifications, Schematics & More

Specifications John Petrucci Figured Top 6&7
Model John Petrucci Figured Top 6&7
Size 12-1/2" wide, 1-3/4" thick, 37" long [7-String 38"] (31.8 cm wide, 4.5 cm thick, 94.0 cm long [7-String 96.5 cm])
Body Wood Alder / Mahogany Tone Block (Rosewood), Honduran Mahogany (Ebony)
Body Finish High gloss polyester
Body Colours Dragon Blood Flame, Dragon Blood Quilt, Island Burst
Bridge Music Man® Custom piezo floating tremolo with square cover and solid steel saddles
Scale Length 25-1/2" (64.8 cm)
Neck Radius 15" (38.1 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - High profile, wide stainless steel
Neck Width 2-1/4" (57.2 mm)
Neck Wood Select Mahogany
Fingerboard Rosewood (Dragon Blood Flame, Dragon Blood Quilt), Ebony (Island Burst)
Fret Markers John Petrucci Shield Inlay
Neck Finish High gloss polyester
Neck Colours Color Matches Body

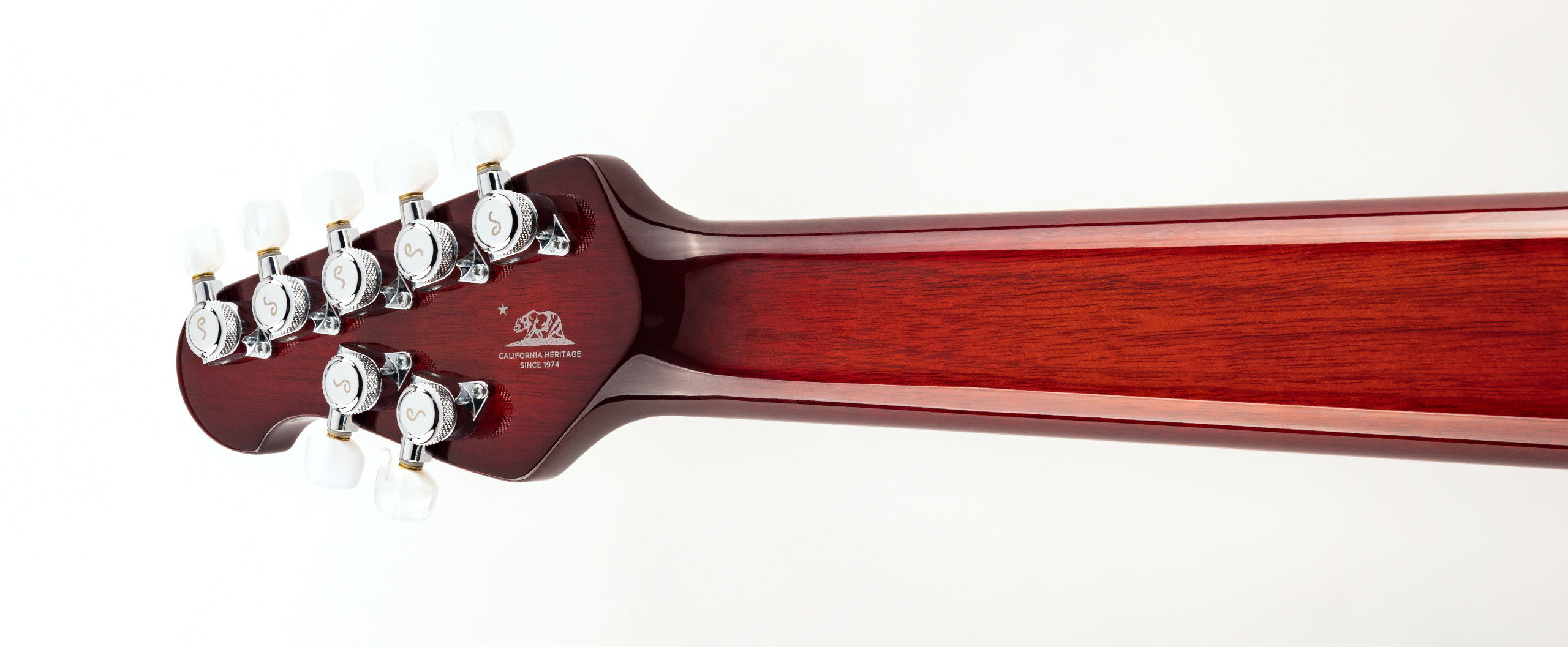

Tuning Machines Schaller M6-IND locking

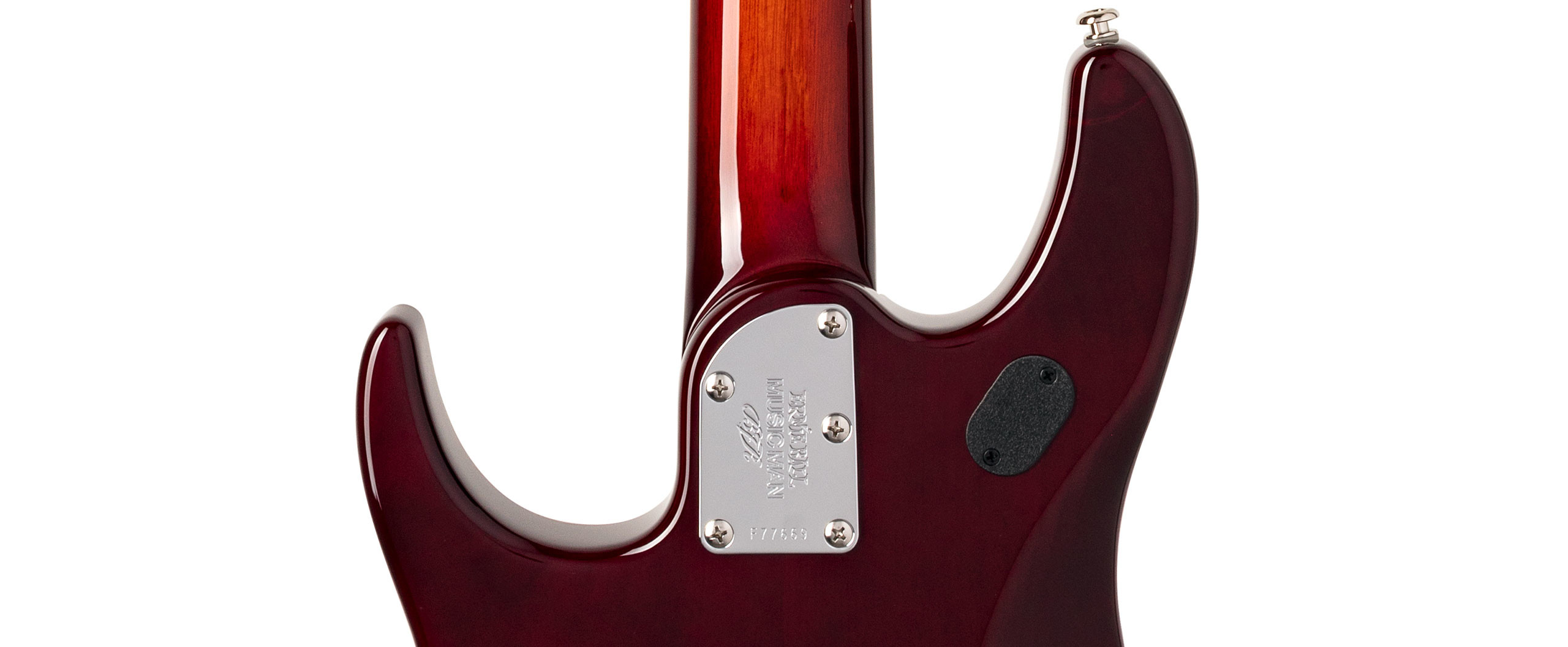

Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 500kohm volume, 500kohm push/pull tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector
Pickups HH - 1 DiMarzio Liquifire - neck; 1 DiMarzio Crunch Lab - bridge; Piezo bridge pickup
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240), 7-String 10p-13p-17p-26-36-46-56 (RPS 10 Slinkys #2240 with added P01156)

id => 86

iid => 86

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2020-05-04 08:00:33

updated_at => 2020-05-04 08:00:33

Specifications John Petrucci Figured Top 6&7
Model John Petrucci Figured Top 6&7
Order 0
Size 12-1/2" wide, 1-3/4" thick, 37" long [7-String 38"] (31.8 cm wide, 4.5 cm thick, 94.0 cm long [7-String 96.5 cm])
Body Wood Alder / Mahogany Tone Block (Rosewood), Honduran Mahogany (Ebony)
Body Finish High gloss polyester
Body Colors Dragon Blood Flame, Dragon Blood Quilt, Island Burst
Body Bindings
Bridge Music Man® Custom piezo floating tremolo with square cover and solid steel saddles
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 15" (38.1 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - High profile, wide stainless steel
Neck Width 2-1/4" (57.2 mm)
Neck Wood Select Mahogany
Fingerboard Rosewood (Dragon Blood Flame, Dragon Blood Quilt), Ebony (Island Burst)
Fret Markers John Petrucci Shield Inlay
Neck Finish High gloss polyester
Neck Colors Color Matches Body
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 500kohm volume, 500kohm push/pull tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector
Pickups HH - 1 DiMarzio Liquifire - neck; 1 DiMarzio Crunch Lab - bridge; Piezo bridge pickup
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240), 7-String 10p-13p-17p-26-36-46-56 (RPS 10 Slinkys #2240 with added P01156)
