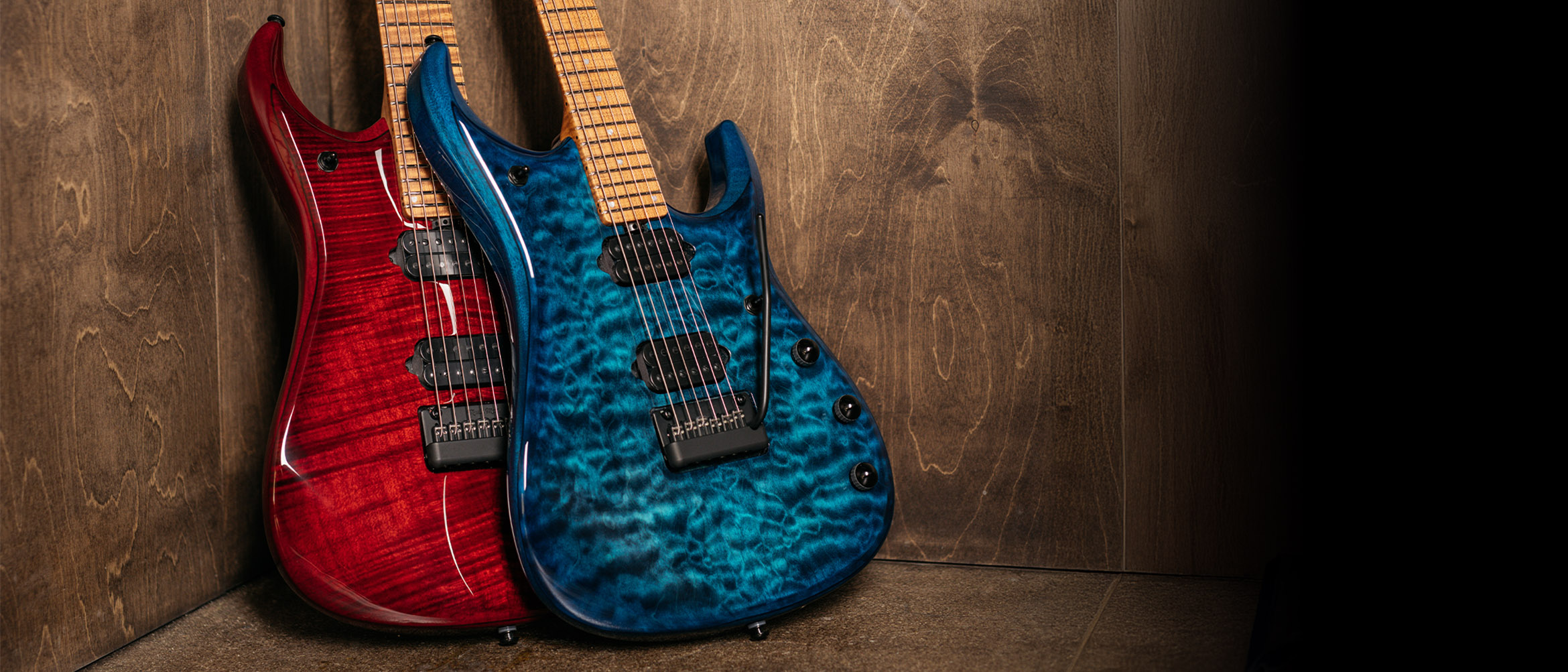

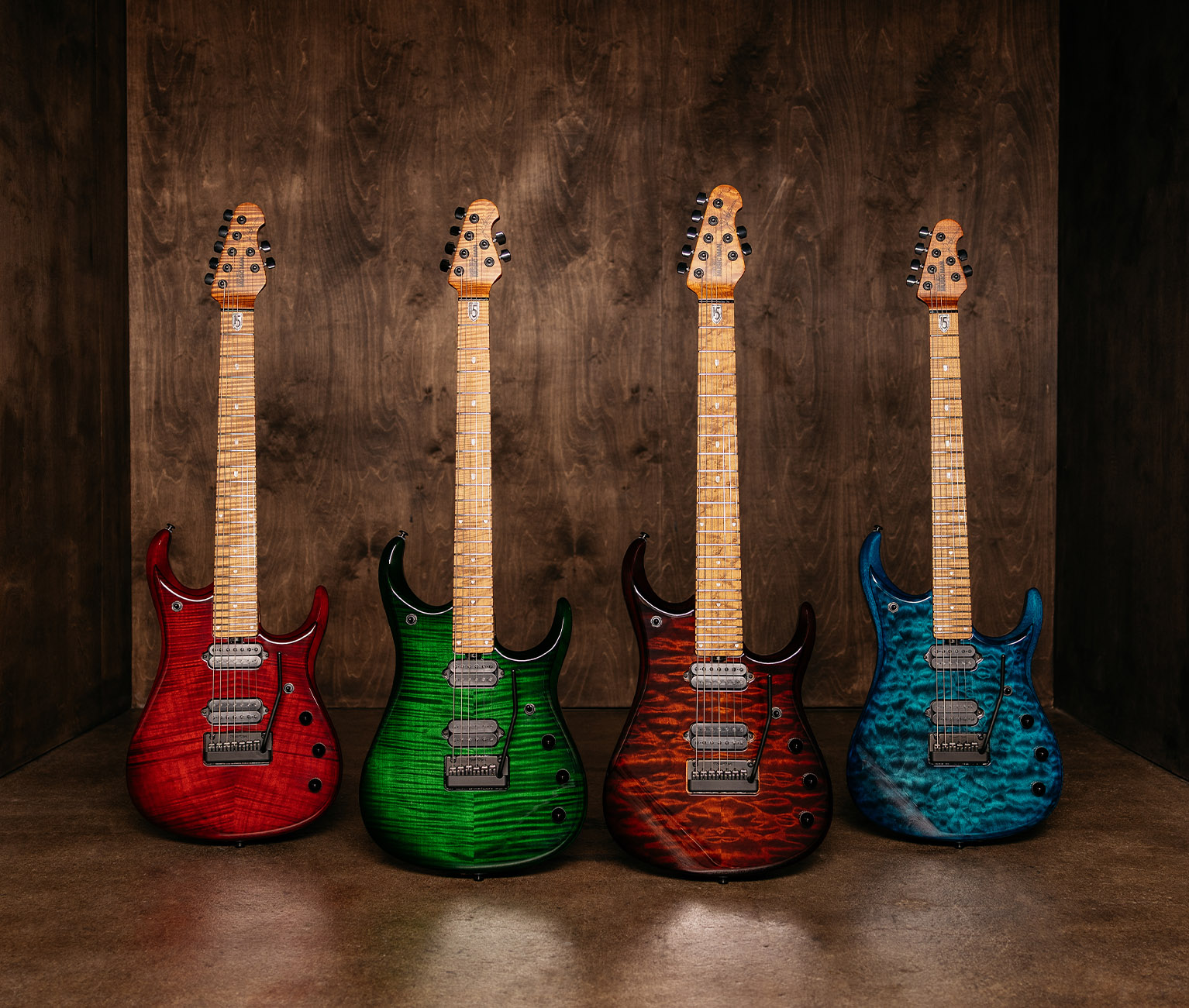

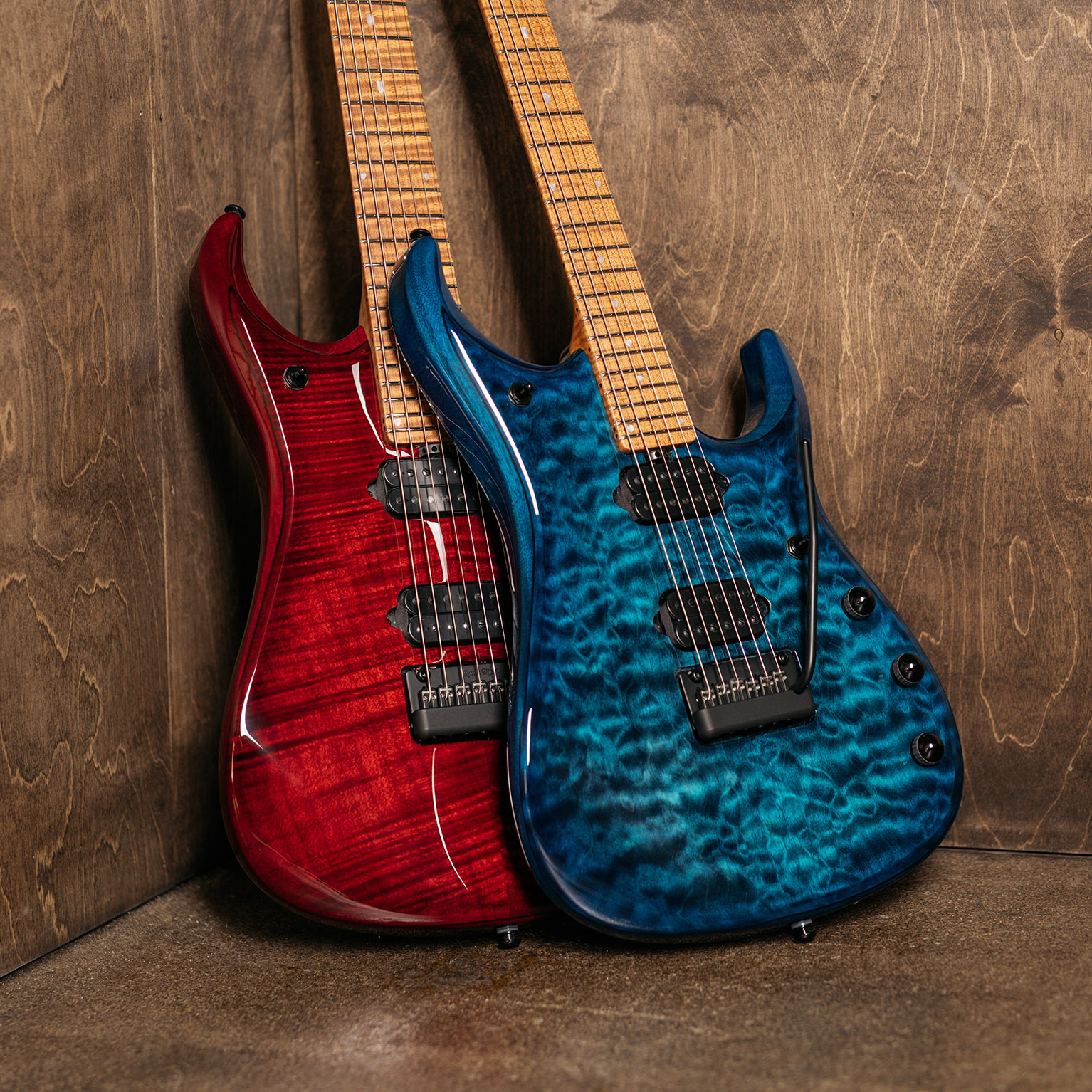

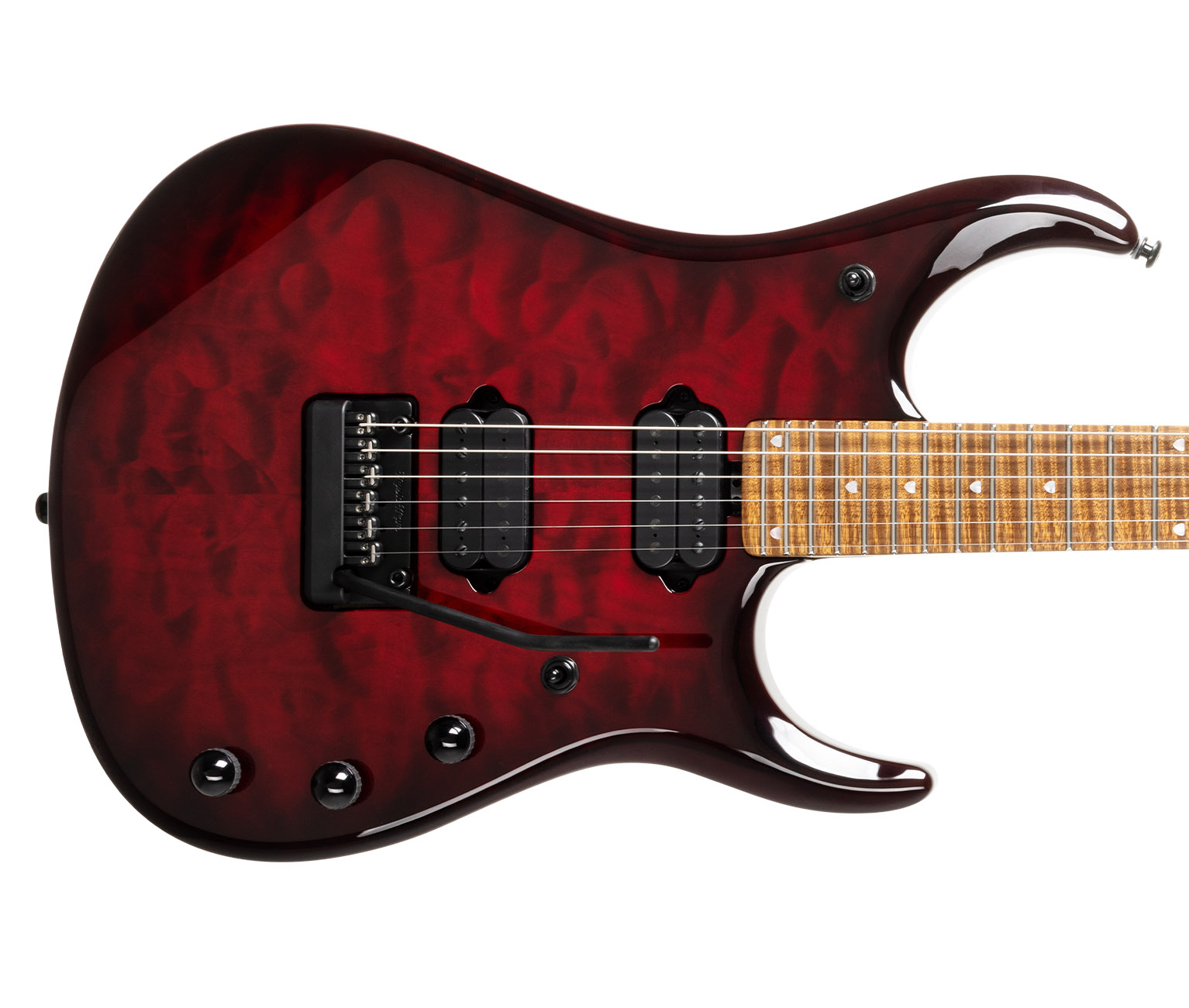

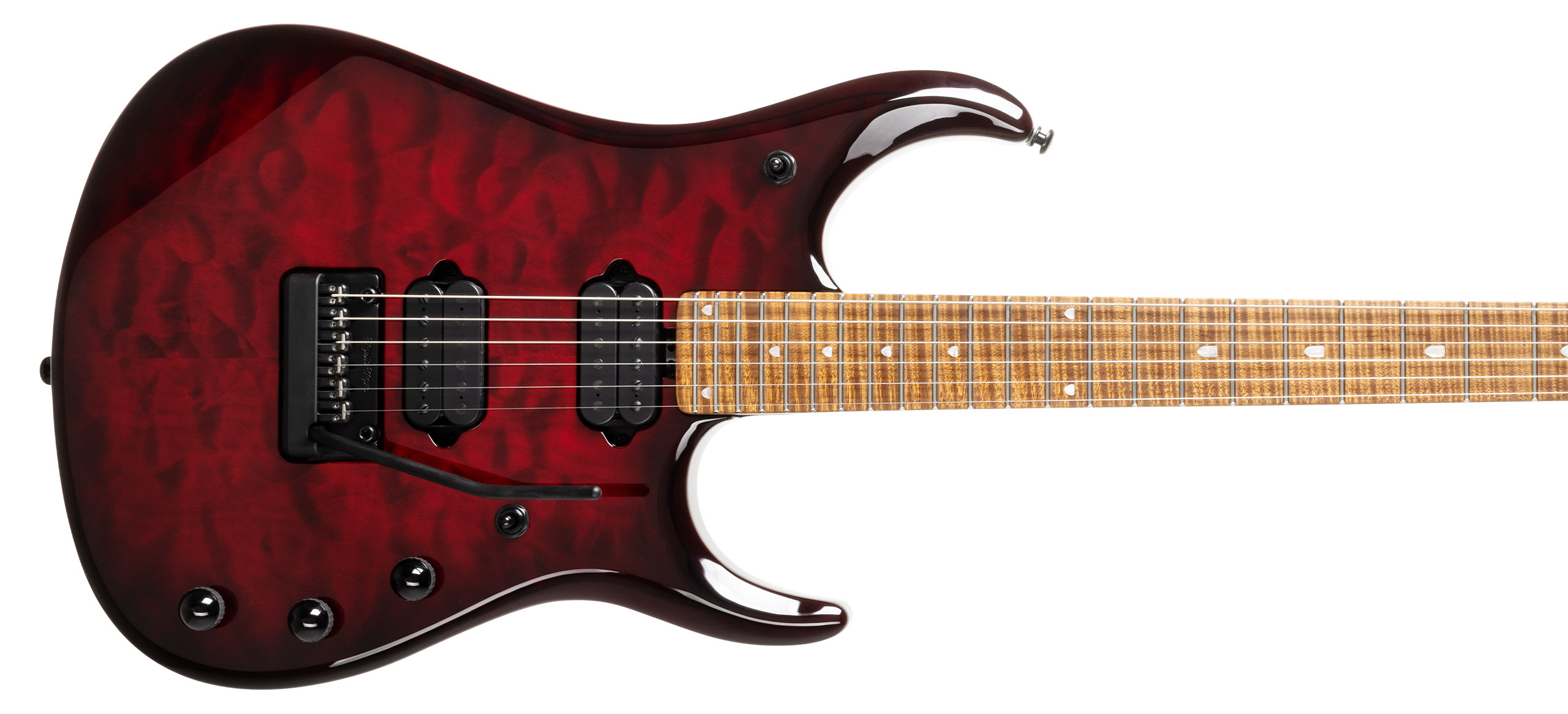

The JP15 features a lightweight okoume body with your choice of a quilted or flame maple top, offered in striking Red Tide, Green Tiger Eye, Ultramarine, and Amber Waves finishes. Its roasted figured maple neck and fingerboard deliver a smooth, fast-playing surface enhanced by stainless steel frets and a hand-rubbed oil and wax finish for natural comfort. Electronics include DiMarzio Illuminator pickups, a piezo-equipped bridge for realistic acoustic tones, and an onboard 20+dB gain boost for added punch and tonal range. The piezo system supports mono or stereo output, letting you route magnetic and piezo signals through separate chains. Two 3-way toggle switches give you full control—one selects between magnetic, piezo, or combined output, while the other toggles between bridge, neck, or both magnetic pickups. A push/push tone knob splits the coils in the middle position for added versatility. Additional features include a floating Music Man JP tremolo, locking Schaller tuners, and a Mono case, with 6- and 7-string configurations available.

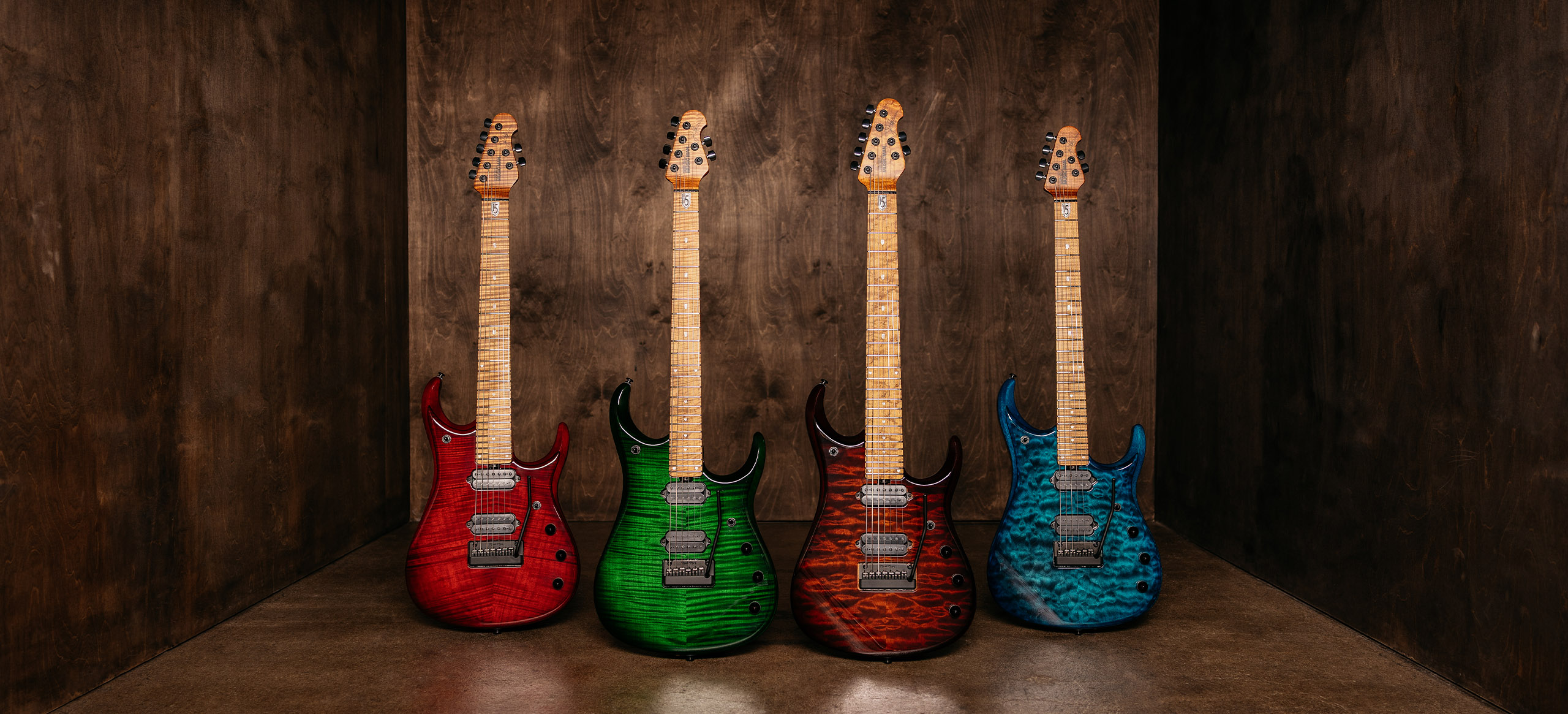

Ultramarine Flame
Red Tide Flame

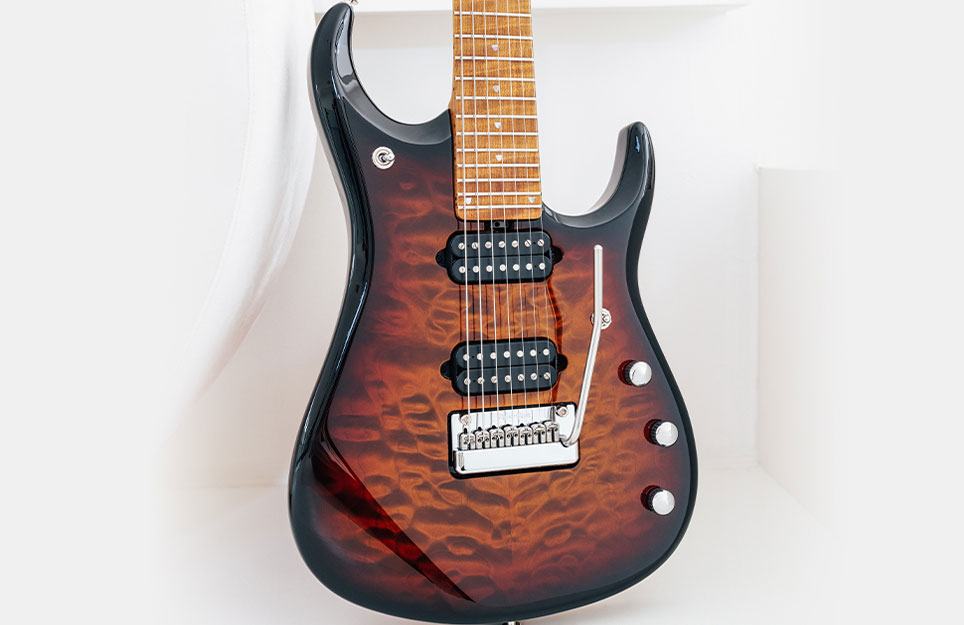

Green Tiger Eye Flame
Amber Waves Flame
Ulatramarine Quilt
Red Tide Quilt
Green Tiger Eye Quilt
Amber Waves Quilt
Purple Nebula Flame Top
Built to John Petrucci's exact specifications, the JP-15 is the result of John's unwavering demand for performance, playability, and tone.

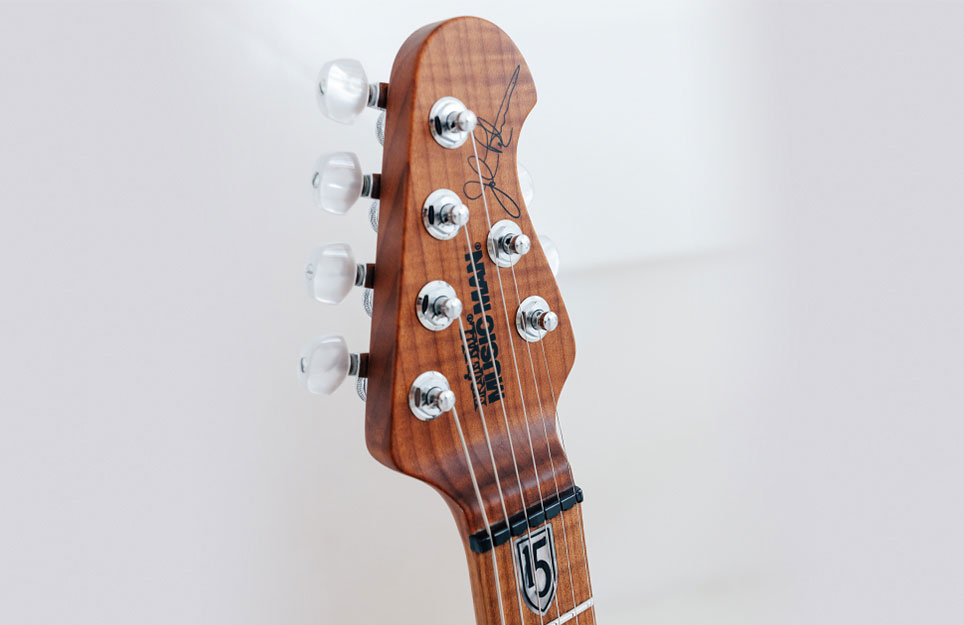

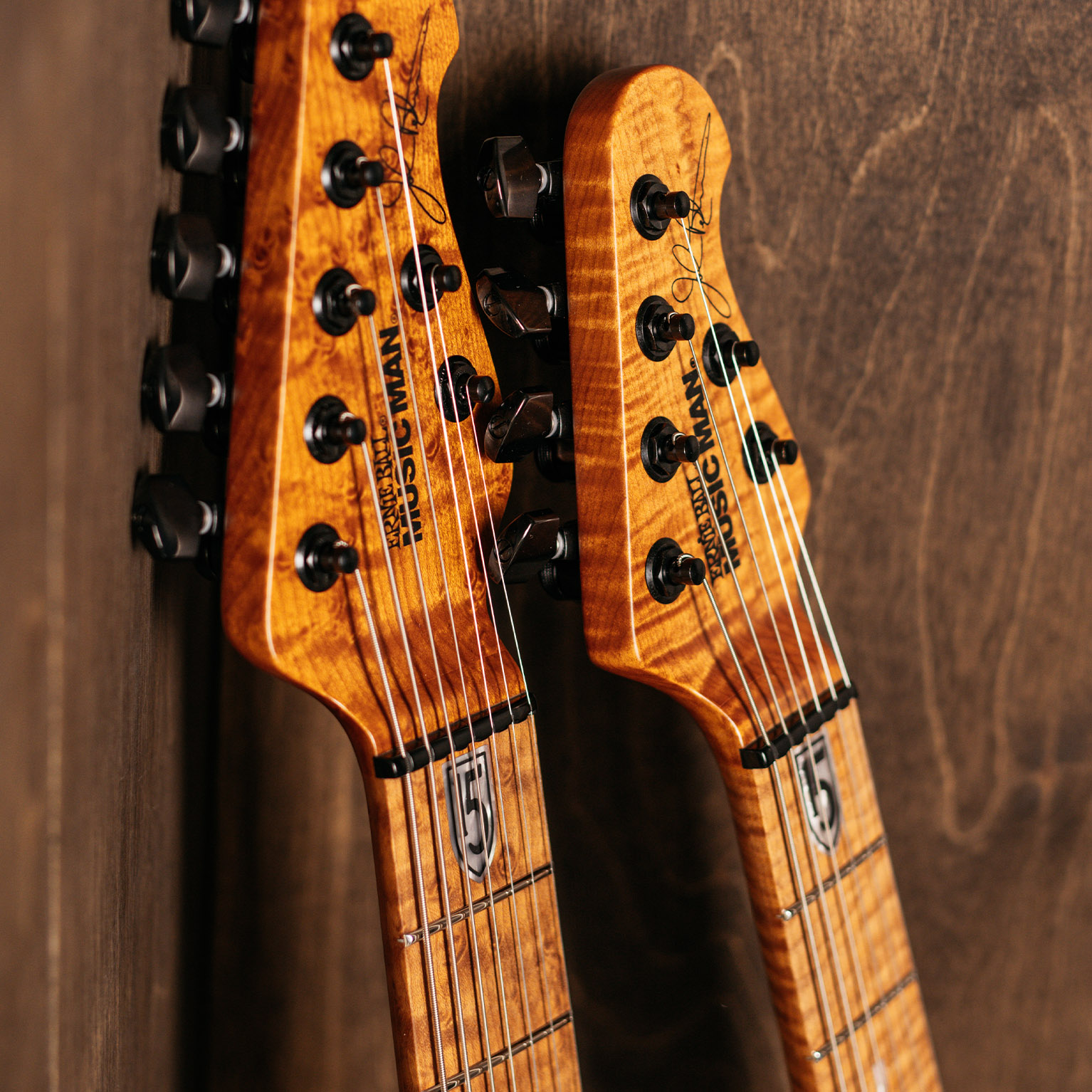

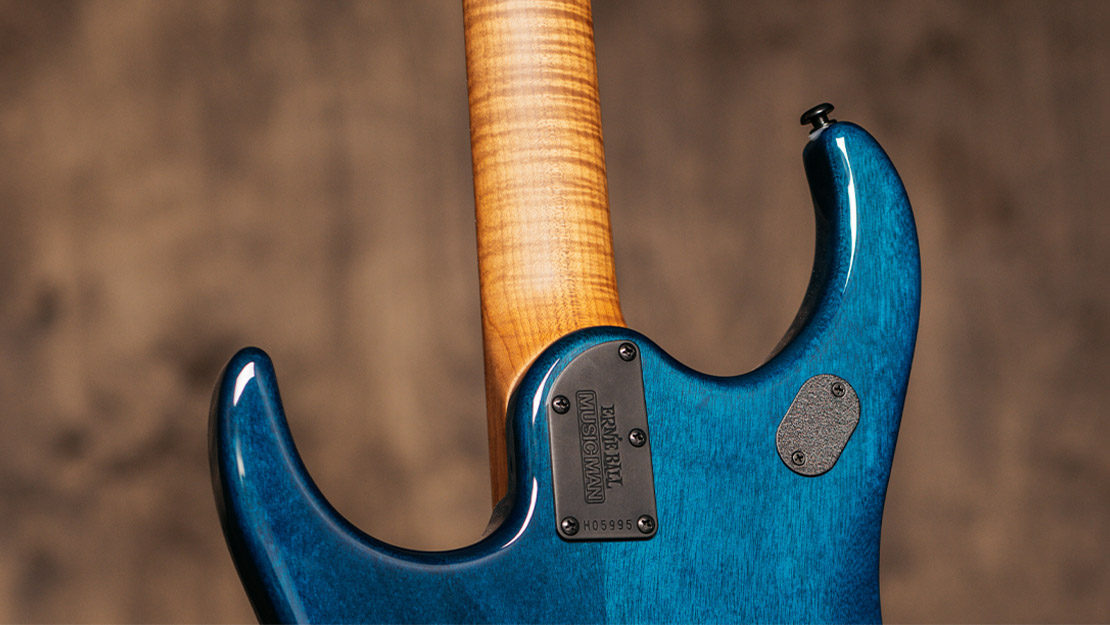

Both 6-string and 7-string models feature a premium figured roasted maple neck and fingerboard.

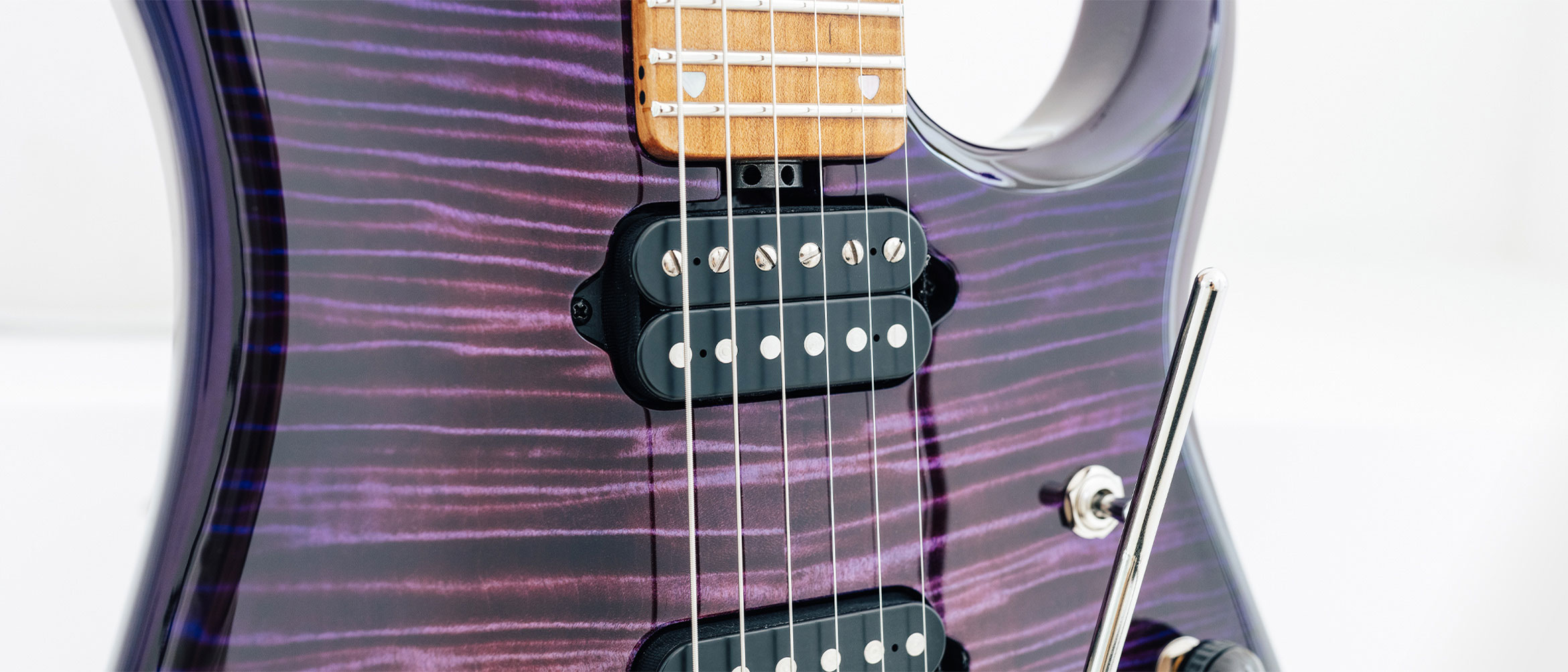

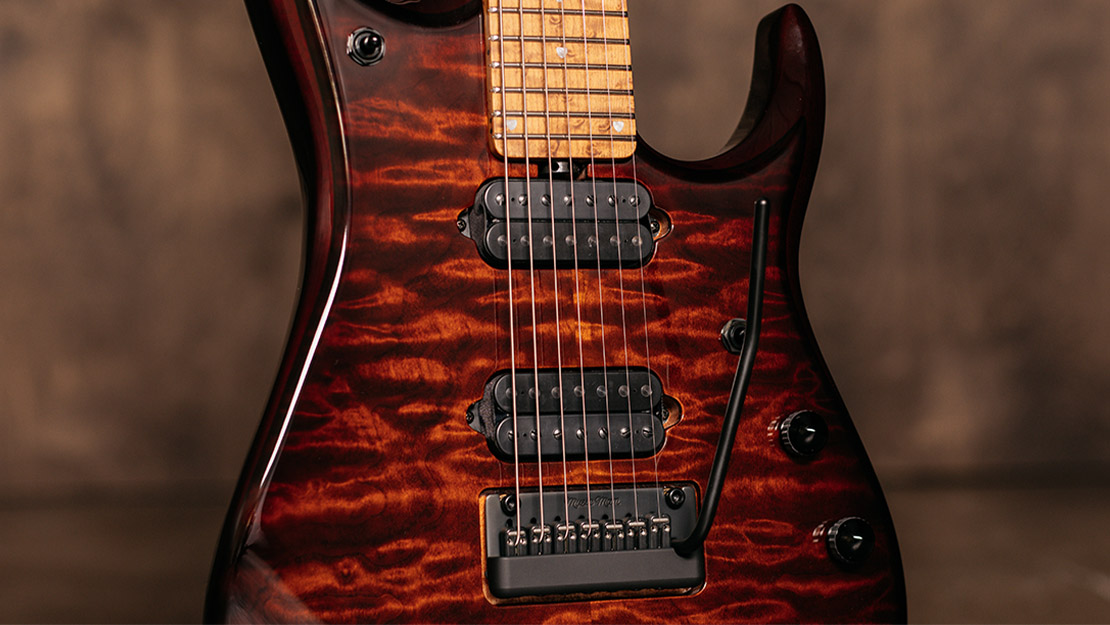

DiMarzio Illuminator humbucking pickups were designed specifically for the JP-15 guitar and it’s combination of tone woods.

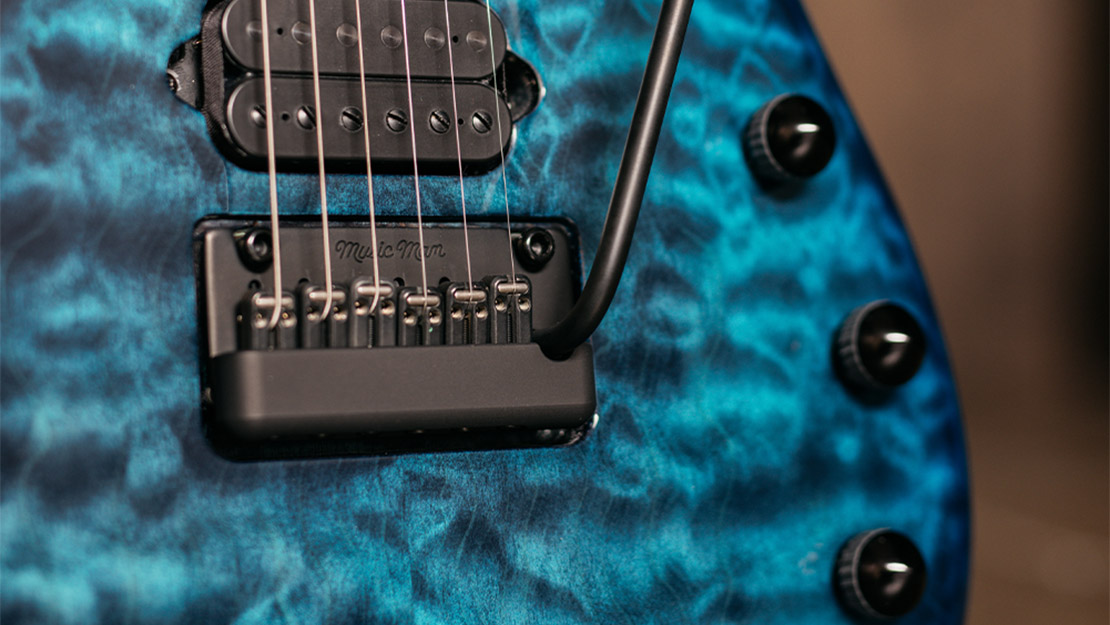

Hand-selected body and neck woods are sustainably sourced from our network of hardwood suppliers worldwide. Okoume and maple tonewoods are individually chosen and matched for their beautiful appearance and rich tonal qualities.
| Specifications | |
|---|---|
| Model | JP15 6 |
| Size | 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long) |
| Body Wood | Okoume with maple top |
| Body Finish | High Gloss Polyester |

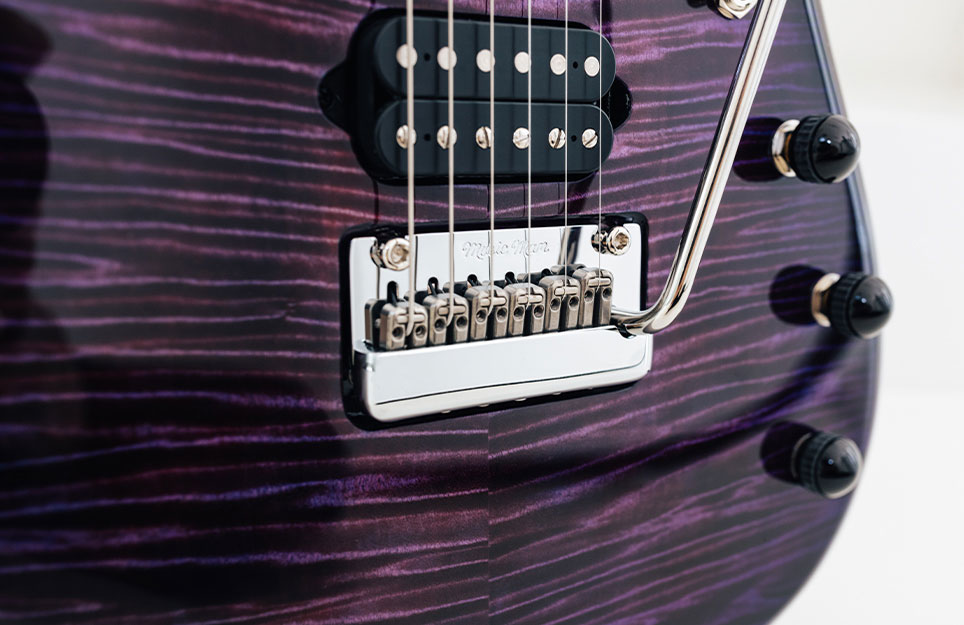

| Bridge | Custom John Petrucci Music Man® Piezo floating tremolo, Fishman Powerbridge piezo saddles |
| Scale Length | 25-1/2" (64.8 cm) |
| Neck Radius | 17" (43.2 cm) |
| Headstock Size | Only 5-7/8" (14.9 cm) long |
| Frets | 24 - Medium Jumbo profile, Stainless Steel |
| Neck Width | 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret |
| Neck Wood | Figured roasted maple neck |
| Fingerboard | Figured roasted maple neck |
| Fret Markers | Custom JP15 Inlays |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend |
| Tuning Machines | Schaller M6-IND locking |
| Truss Rod | Adjustable - no component or string removal |
| Neck Attachment | 5 bolts - Sculpted neck joint allows smooth access to higher frets |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum control cover |
| Controls | Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom 2 pickup configurations - .022µF tone capacitor |
| Switching | 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector |
| Pickups | HH - DiMarzio Illuminators; Fishman Powerbridge piezo saddles |
| Left Handed | No |
| Strings | 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240) |
