The Mariposa features an offset lightweight okoume body, a roasted maple neck, and an ebony fingerboard that showcases pearlescent style block inlays. Electronics include two custom wound EBMM humbucking pickups with separate volume control for each pickup, controlled by a 3-way pickup selector switch that allows for variable humbucking combinations when needed. The pickguard is laser etched with an ornate design coordinated to compliment specific finish options.

Mariposa Logo

OPTIONS

Sahara Sunset

Galaxy Pearl

Imperial White

Dorado Green

Your Custom Options:

Model:
Colour:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

Mariposa Highlights

Mariposa Slide
Mariposa Slide
Mariposa Slide
Mariposa Slide
Mariposa Slide
Mariposa Slide
Mariposa Slide
Mariposa Slide
Mariposa Slide
Mariposa Highlight
Lightweight Okoume body
Mariposa Highlight
White pearlescent block inlays and painted headstock
Mariposa Highlight
Custom Ernie Ball Music Man Humbucking pickups

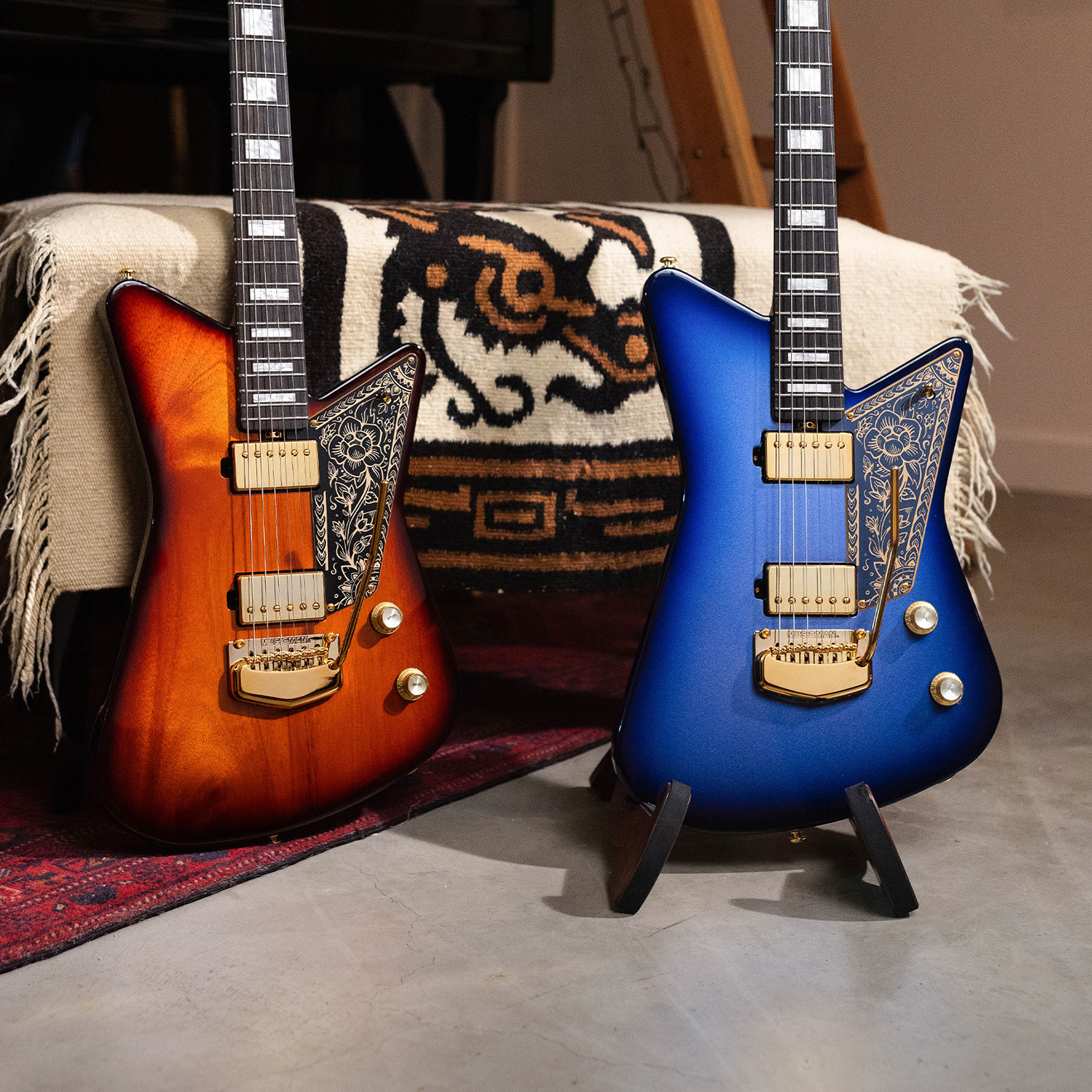

INSPIRED COLLABORATION

Form & Function

Designed with world-renowned Mars Volta and At the Drive-In composer & guitarist Omar Rodríguez-López.

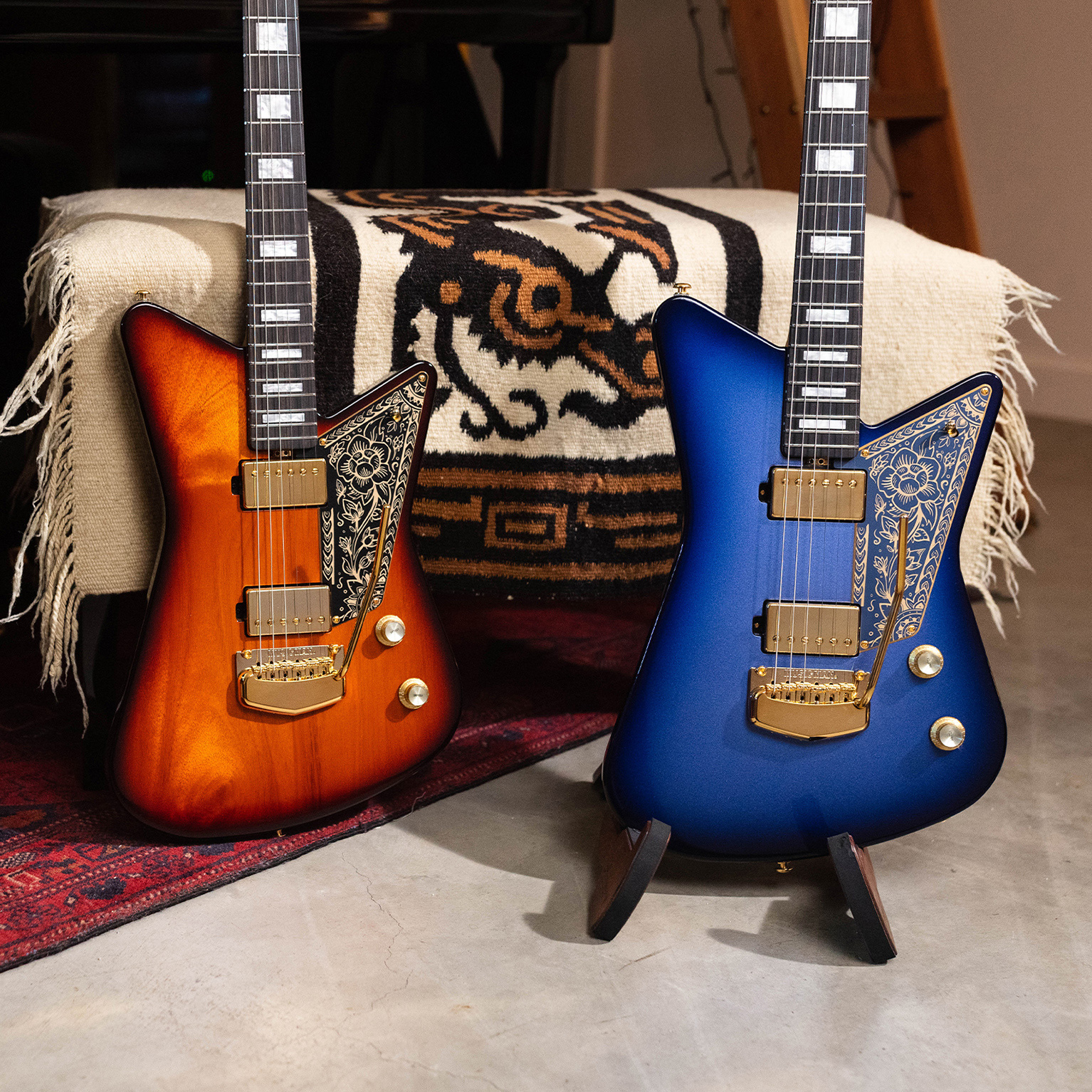

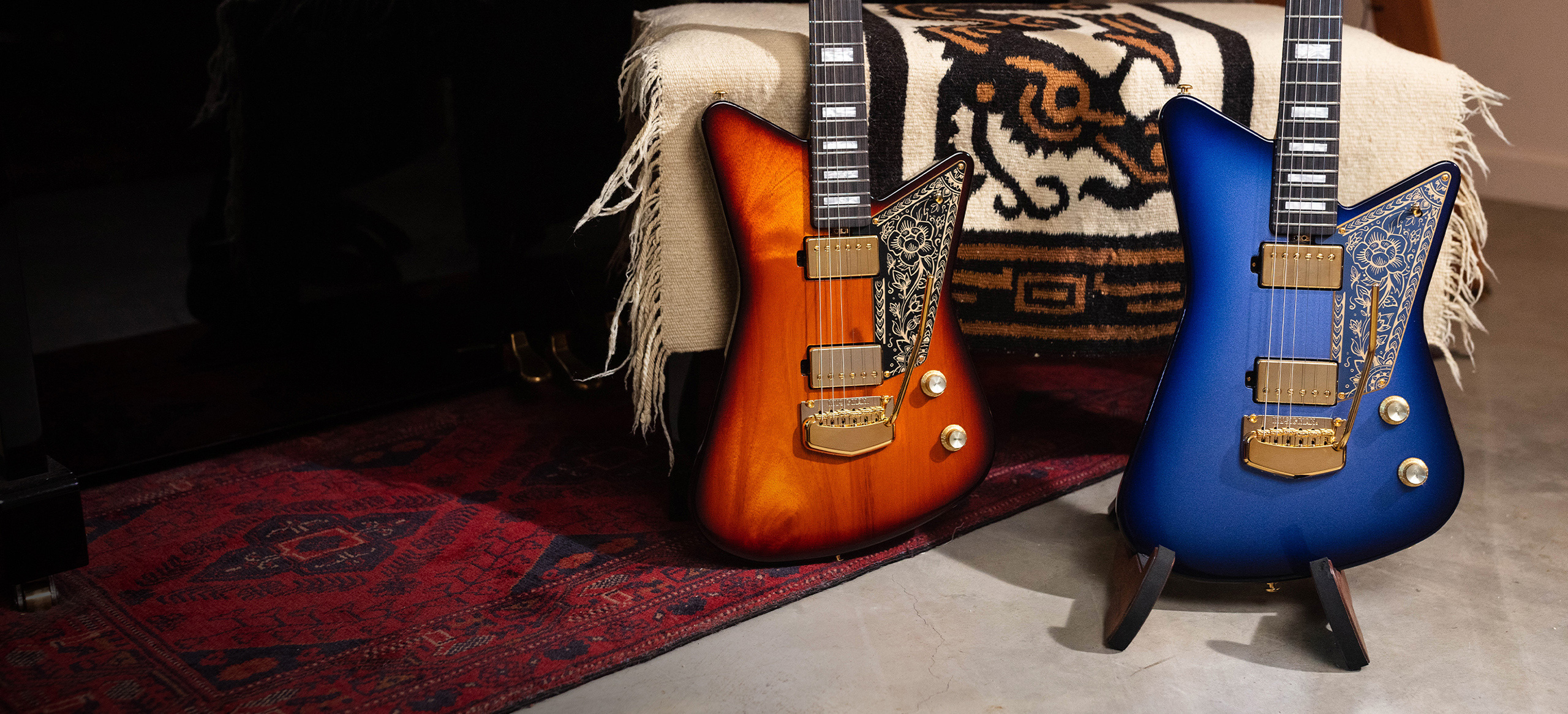

TWO STRIKING NEW FINISHES

DELUXE OR STANDARD

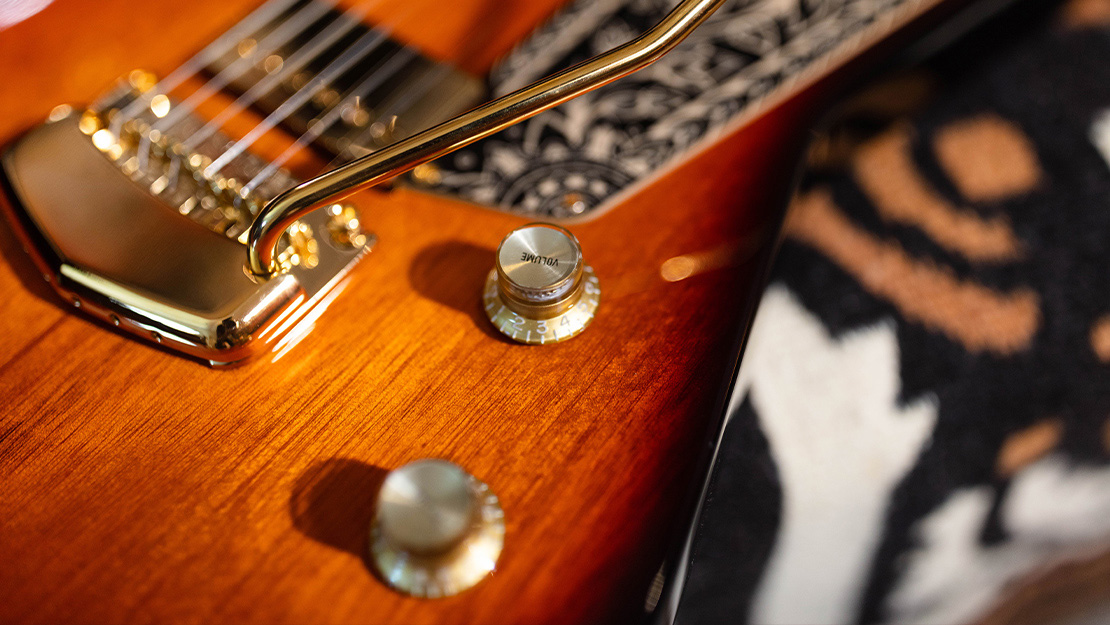

The Mariposa Deluxe comes with gold hardware, gold hat knobs in Imperial White, Galaxy Pearl, and Sahara Sunset finishes. The standard Mariposa comes with chrome hardware, and chrome knobs finished in Dorado Green.

CHAOS MEETS BEAUTY

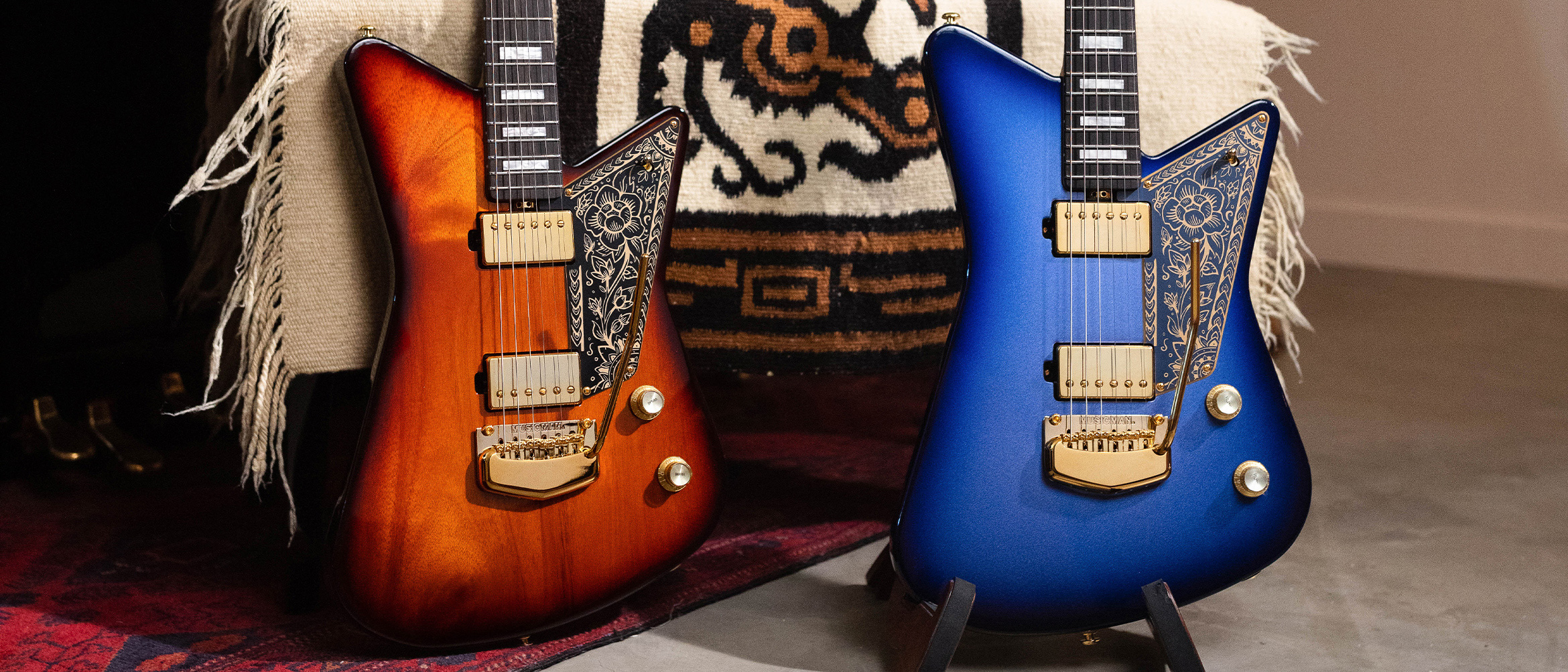

ORNATE PICKGUARD

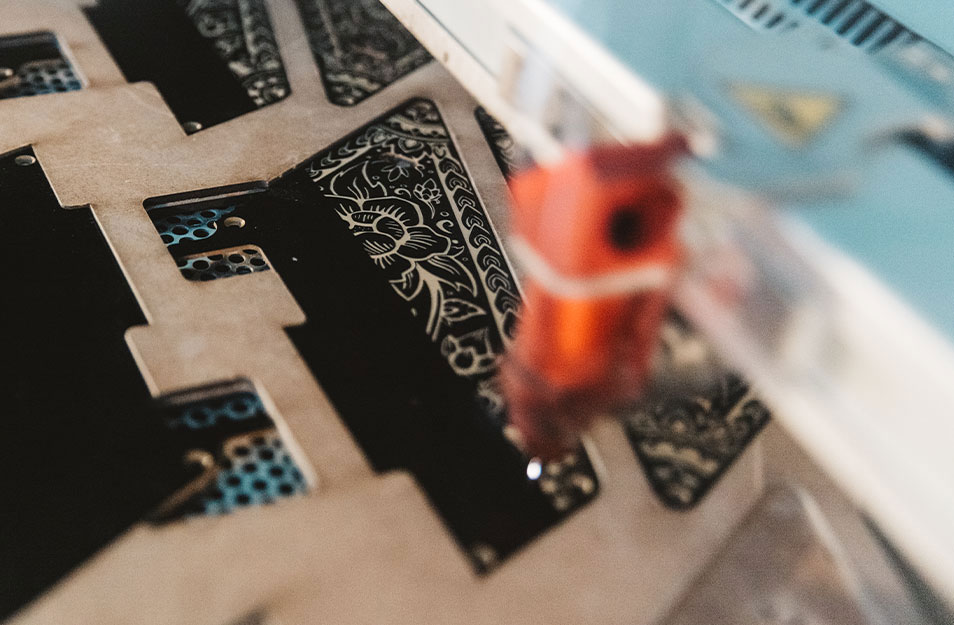

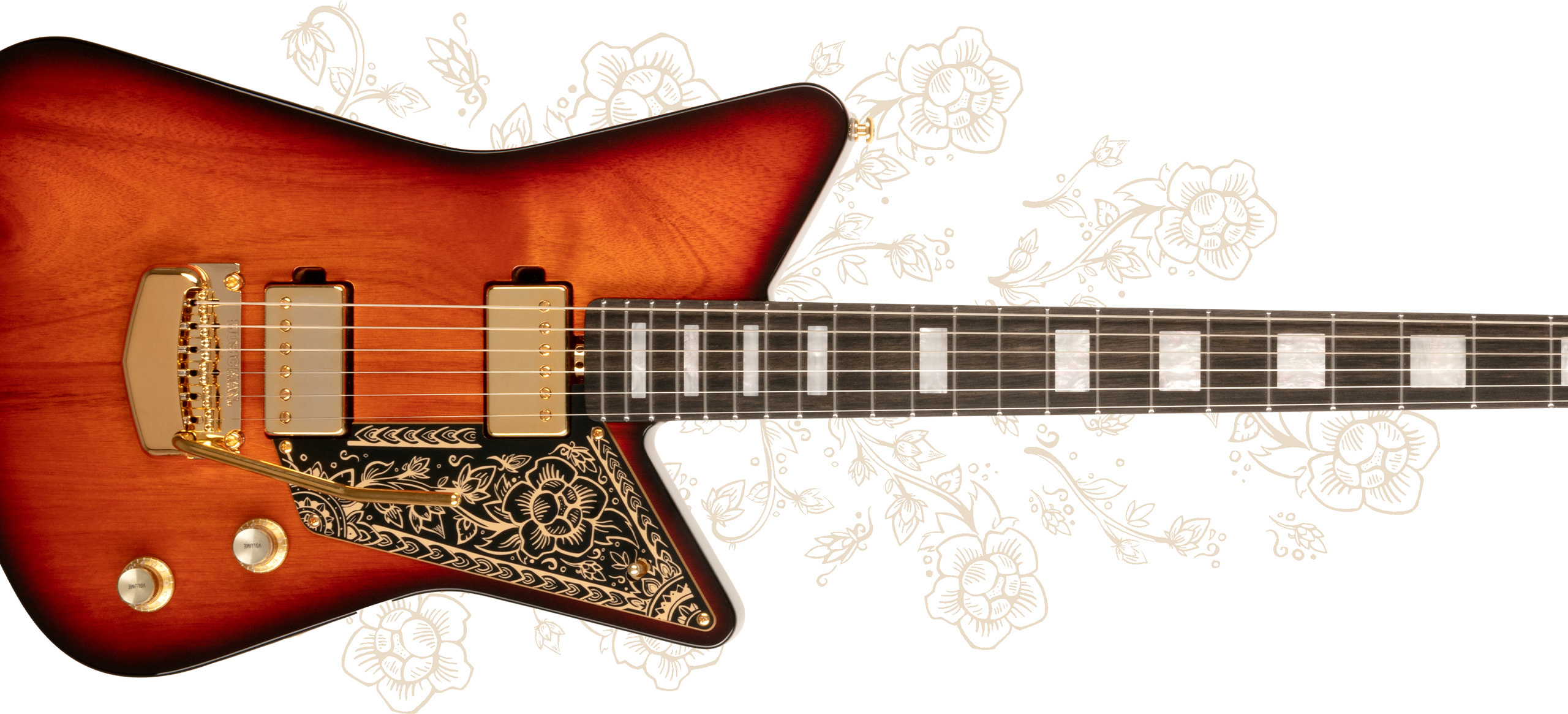

Custom pickguards are laser-etched with an original ornate floral design coordinated to complement specific finish options.

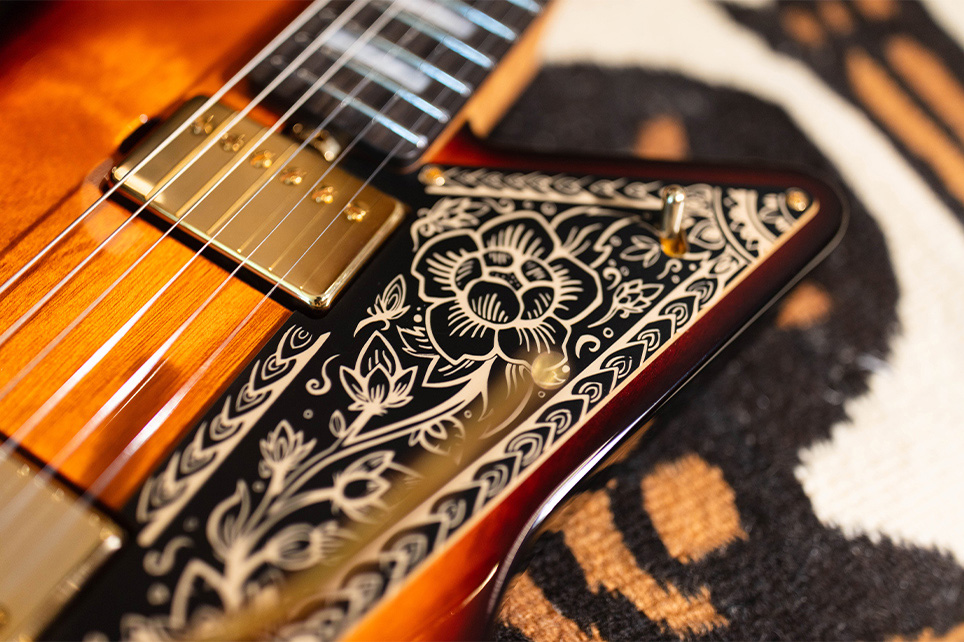

Custom Electronics

Ernie Ball Music Man designed pickups accentuate Omar's love of heavy distortion while retaining all the subtleties of a classic style humbucking pickup.

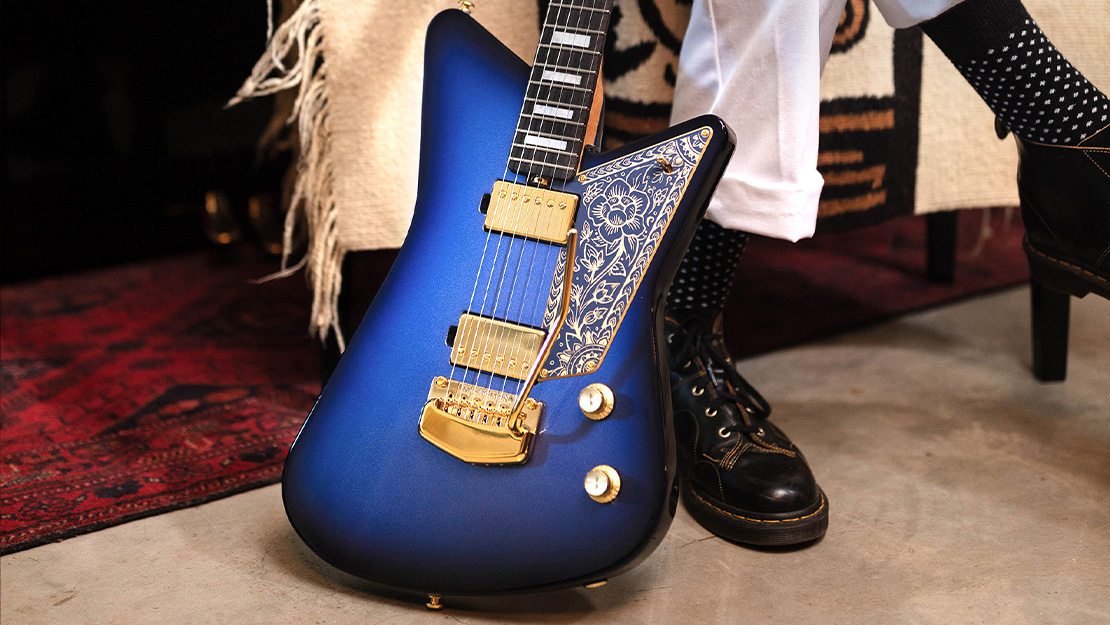

Custom Design

Offset angular okoume body shape provides a beautiful unique appearance while retaining maximum balance and playing comfort.

Tethered Tone Circuit

The passive interaction between the dual volume pots creates a natural variation in the high end when set at different levels.

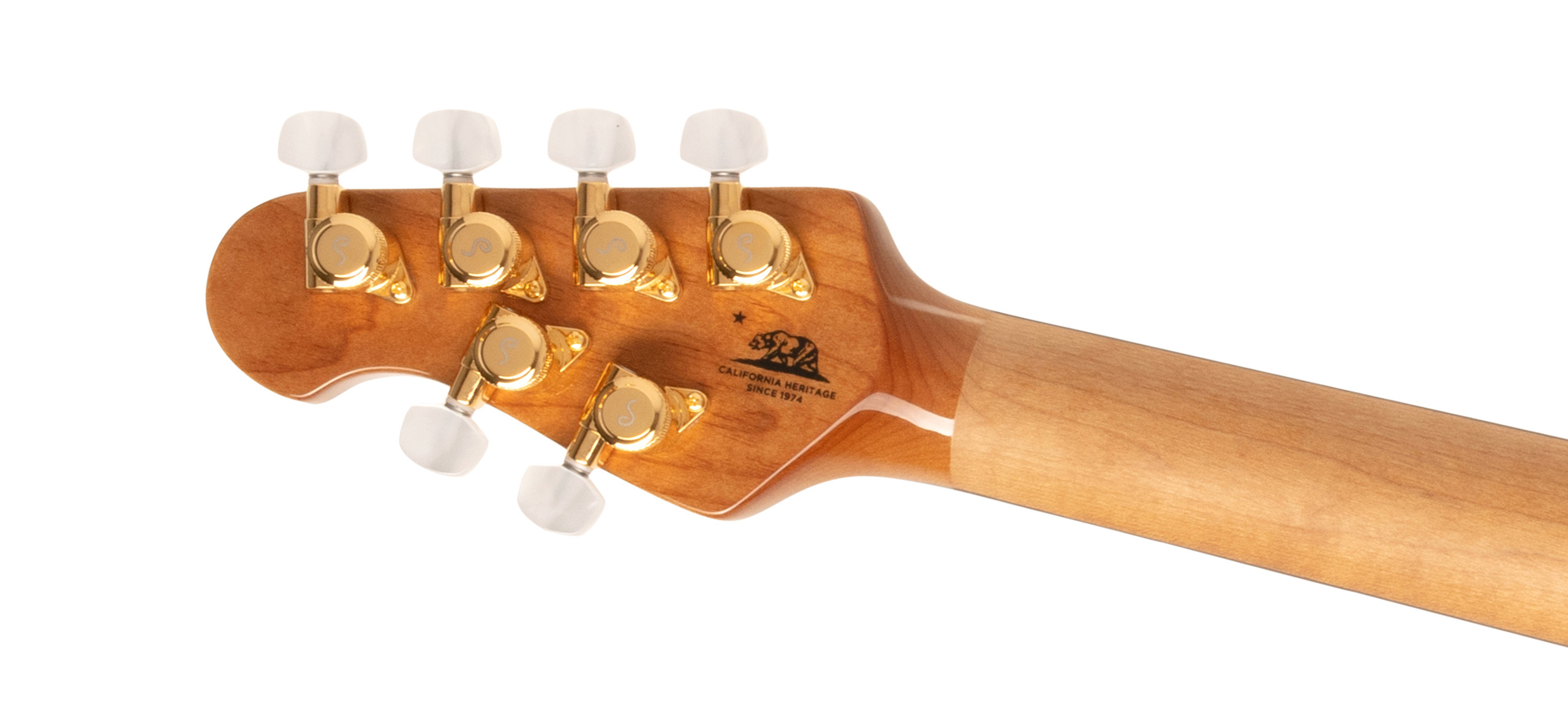

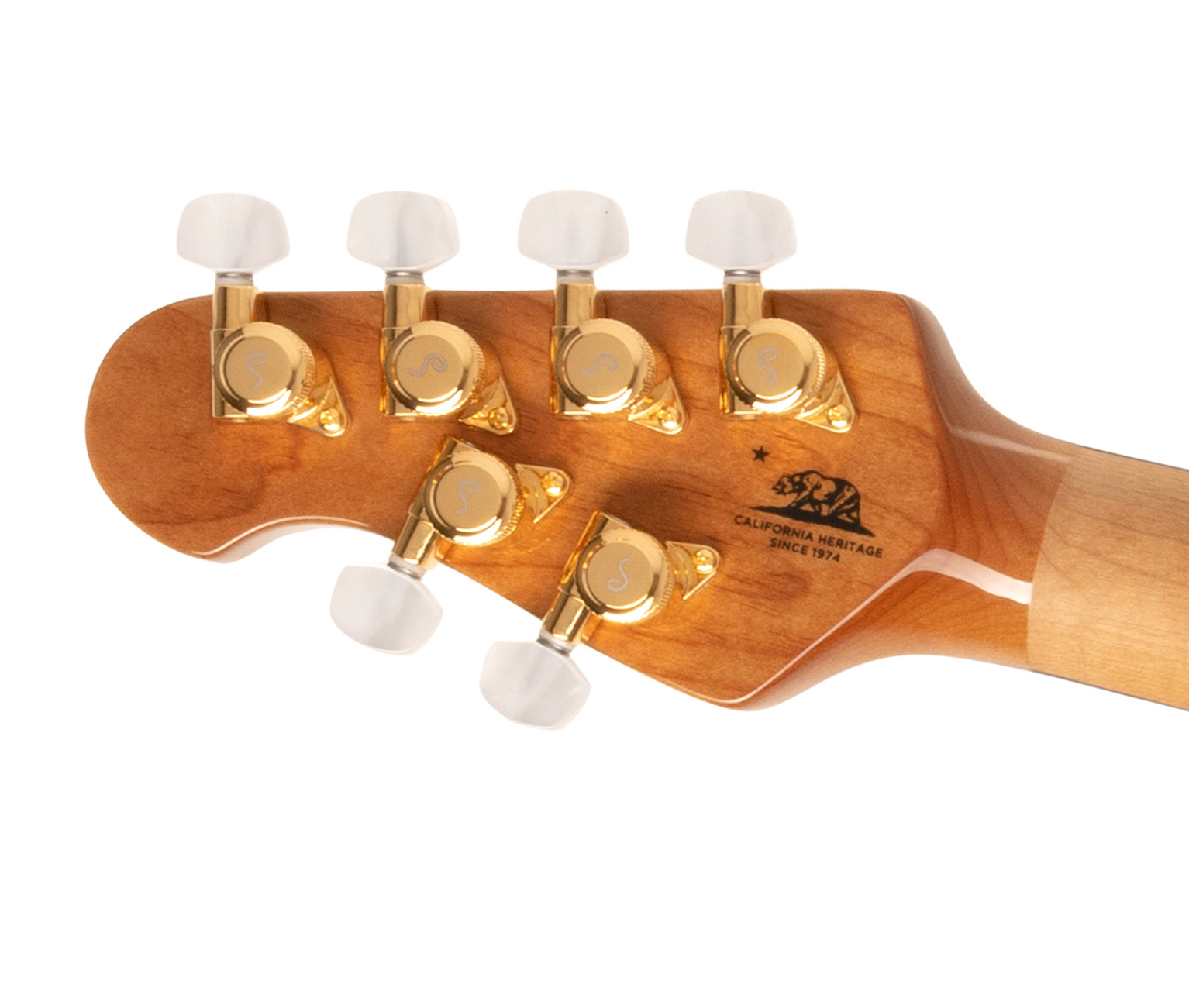

SCHALLER TUNERS

Mariposa features Shaller M6-IND Gold or Chrome Locking Tuners.

Specifications, Schematics & More

Specifications Mariposa
Model Mariposa
Size 11-7/8" wide, 1-5/8" thick, 37-1/2" long (30.2 cm wide, 4.1 cm thick, 95.3 cm long)
Body Wood Okoume
Body Finish High gloss polyester
Body Colours Sahara Sunset, Galaxy Pearl, Imperial White, Dorado Green
Bridge Music Man® Modern tremolo with chevron cover and vintage bent steel saddles
Pickguard Black, White, Torrid Maroon, Turbulent Green
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Select roasted maple neck
Fingerboard Ebony
Fret Markers Atlante Blocks
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colours Natural
Tuning Machines Schaller M6-IND locking (Gold / Chrome)
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 500kohm volume for each pickup
Switching 3-way toggle pickup selector
Pickups HH - 2 Music Man® custom wound humbucking with gold / chrome covers
Left Handed SHOP LEFTIES
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)

id => 84

iid => 84

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2019-09-24 07:03:38

updated_at => 2019-09-24 07:03:38

Specifications Mariposa
Model Mariposa
Order 0
Size 11-7/8" wide, 1-5/8" thick, 37-1/2" long (30.2 cm wide, 4.1 cm thick, 95.3 cm long)
Body Wood Okoume
Body Finish High gloss polyester
Body Colors Sahara Sunset, Galaxy Pearl, Imperial White, Dorado Green
Body Bindings
Bridge Music Man® Modern tremolo with chevron cover and vintage bent steel saddles
Pickguard Black, White, Torrid Maroon, Turbulent Green
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Select roasted maple neck
Fingerboard Ebony
Fret Markers Atlante Blocks
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Natural
Neck Binding
Tuning Machines Schaller M6-IND locking (Gold / Chrome)
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 500kohm volume for each pickup
Switching 3-way toggle pickup selector
Pickups HH - 2 Music Man® custom wound humbucking with gold / chrome covers
Left Handed SHOP LEFTIES
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)
