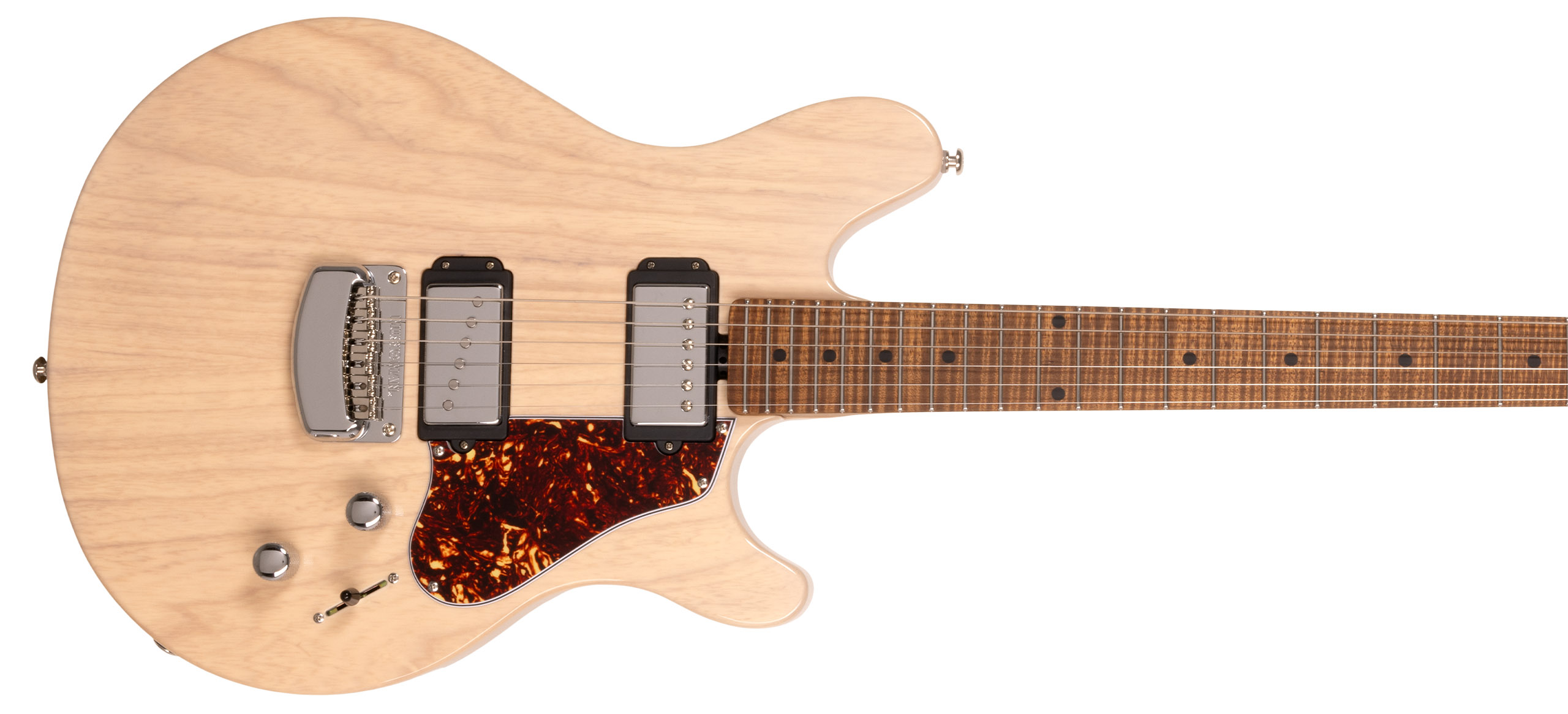

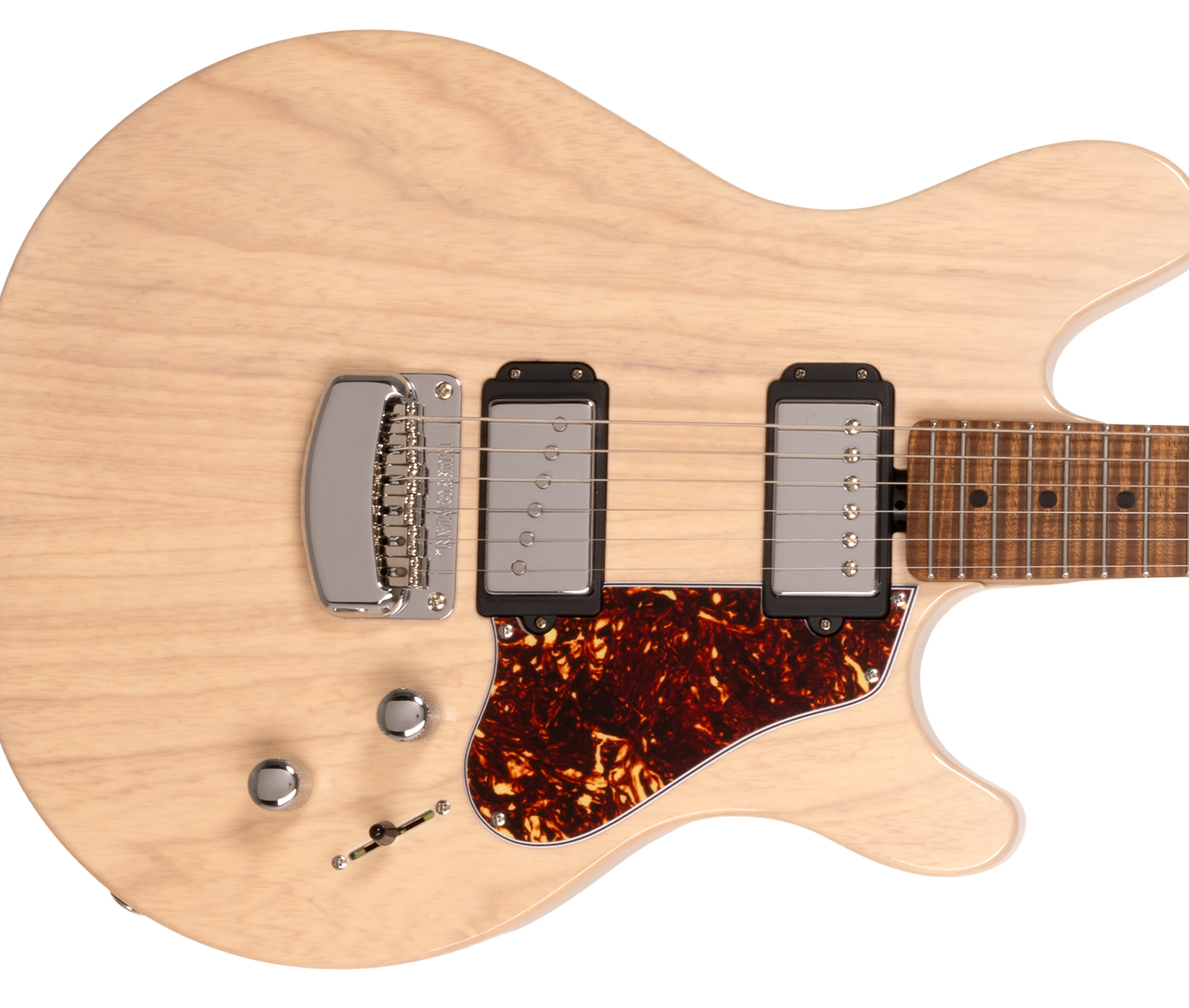

The Ernie Ball Music Man James Valentine "Valentine" guitar features a slab ash body, two Ernie Ball Music Man designed pickups (1-humbucker/1-single coil) with 3-way custom wired lever switch, coil split, modern hardtail bridge with vintage bent steel saddles, 25.5-inch scale, oil and wax rubbed roasted maple neck with 10-inch radius maple fingerboard, 22 stainless steel frets, oversized 4-over-2 headstock and compensated nut, designed for superior tuning stability.

Valentine Logo

OPTIONS

Pink Champagne Sparkle

Tobacco Sparkle

Maroon Burst Sparkle

Your Custom Options:

Model:
Colour:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

Valentine Highlights

Valentine Slide
Valentine Slide
Valentine Slide
Valentine Slide
Valentine Slide
Valentine Slide
Valentine Slide
Valentine Slide
Valentine Highlight

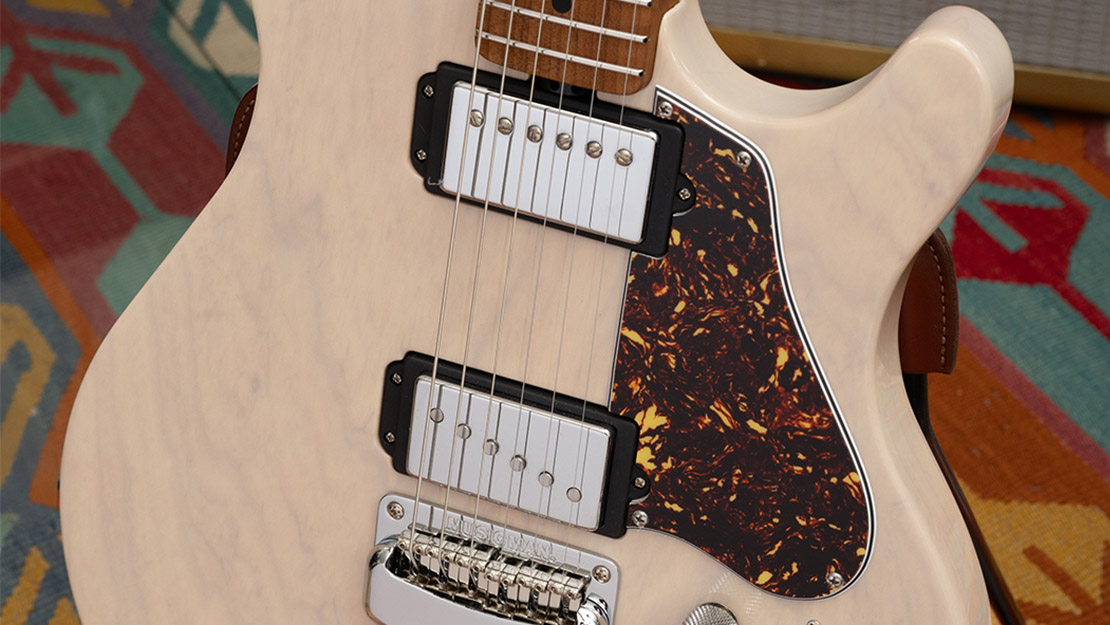

Custom Music Man single coil and humbucker
Valentine Highlight
Comfortable "wedge" shaped slab body
Valentine Highlight

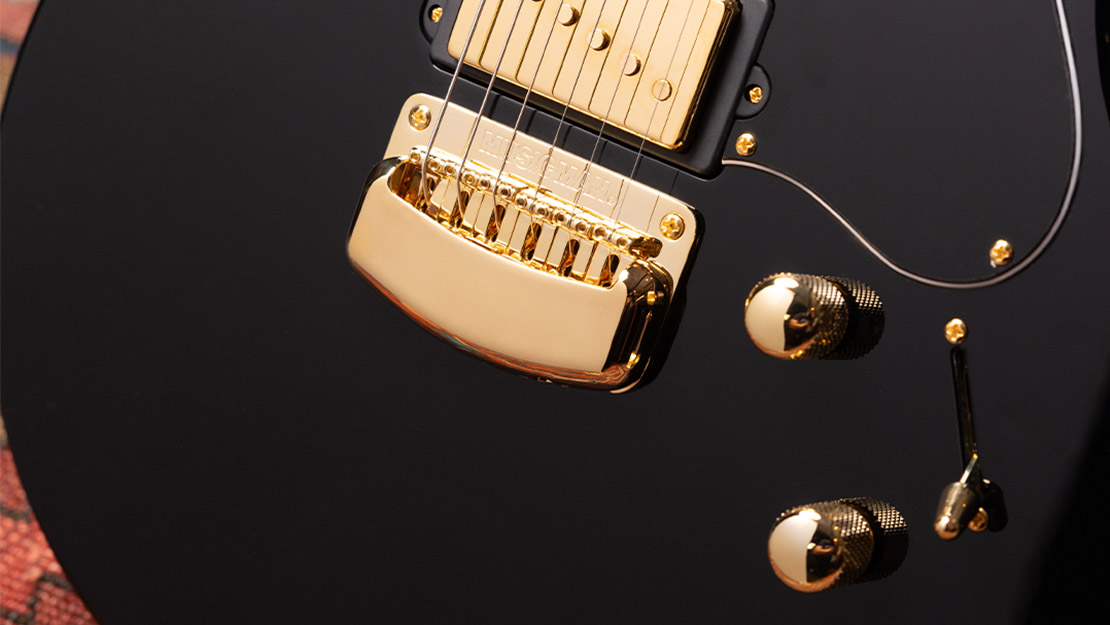

Music Man modern classic hardtail bridge

Specifications, Schematics & More

Specifications Valentine
Model Valentine
Size 13-1/4" wide, 1-3/4" thick, 38-7/16" long (33.7 cm wide, 4.5 cm thick, 97.6 cm long)
Body Wood Ash
Body Finish High gloss polyester
Bridge Music Man® Modern hardtail with vintage bent steel saddles
Pickguard Maroon Burst Sparkle (Black) Tobacco Sparkle (Black) Pink Champagne Sparkle (White Pearl)
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width, Stainless Steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Figured roasted maple neck
Fingerboard Figured roasted maple neck
Fret Markers 1/4" Black Face dots
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colours Standard – Natural with finished headstock
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom split pickup configurations - .022µF tone capacitor
Switching 3-way lever pickup selector
Pickups SH - Music Man® custom wound staggered pole piece single coil (bridge) and humbucker with chrome or gold covers (neck)
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)

id => 61

iid => 61

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2016-01-07 10:33:49

updated_at => 2016-01-07 10:33:49

Specifications Valentine
Model Valentine
Order 0
Size 13-1/4" wide, 1-3/4" thick, 38-7/16" long (33.7 cm wide, 4.5 cm thick, 97.6 cm long)
Body Wood Ash
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Music Man® Modern hardtail with vintage bent steel saddles
Pickguard Maroon Burst Sparkle (Black) Tobacco Sparkle (Black) Pink Champagne Sparkle (White Pearl)
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width, Stainless Steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Figured roasted maple neck
Fingerboard Figured roasted maple neck
Fret Markers 1/4" Black Face dots
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Standard – Natural with finished headstock
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom split pickup configurations - .022µF tone capacitor
Switching 3-way lever pickup selector
Pickups SH - Music Man® custom wound staggered pole piece single coil (bridge) and humbucker with chrome or gold covers (neck)
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)
