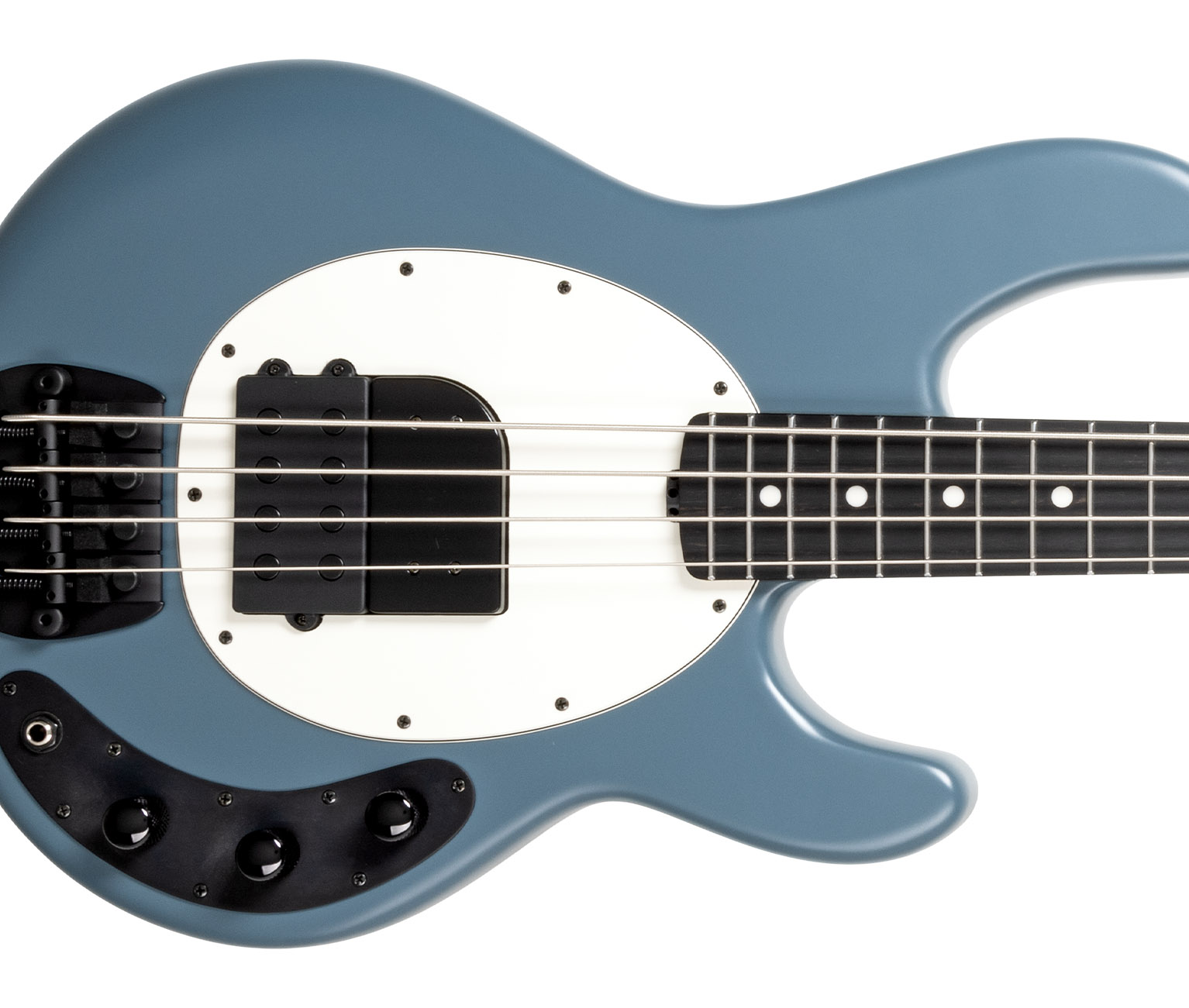

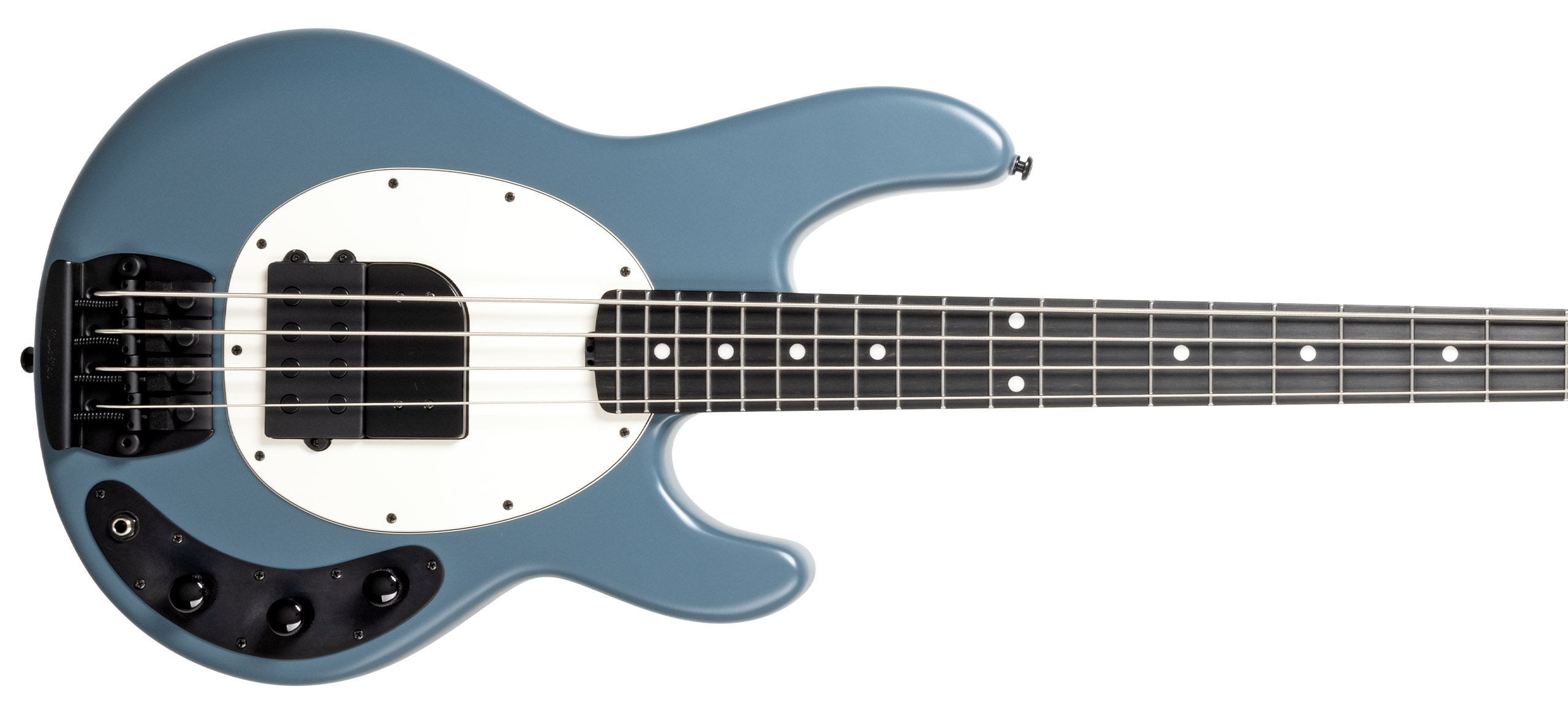

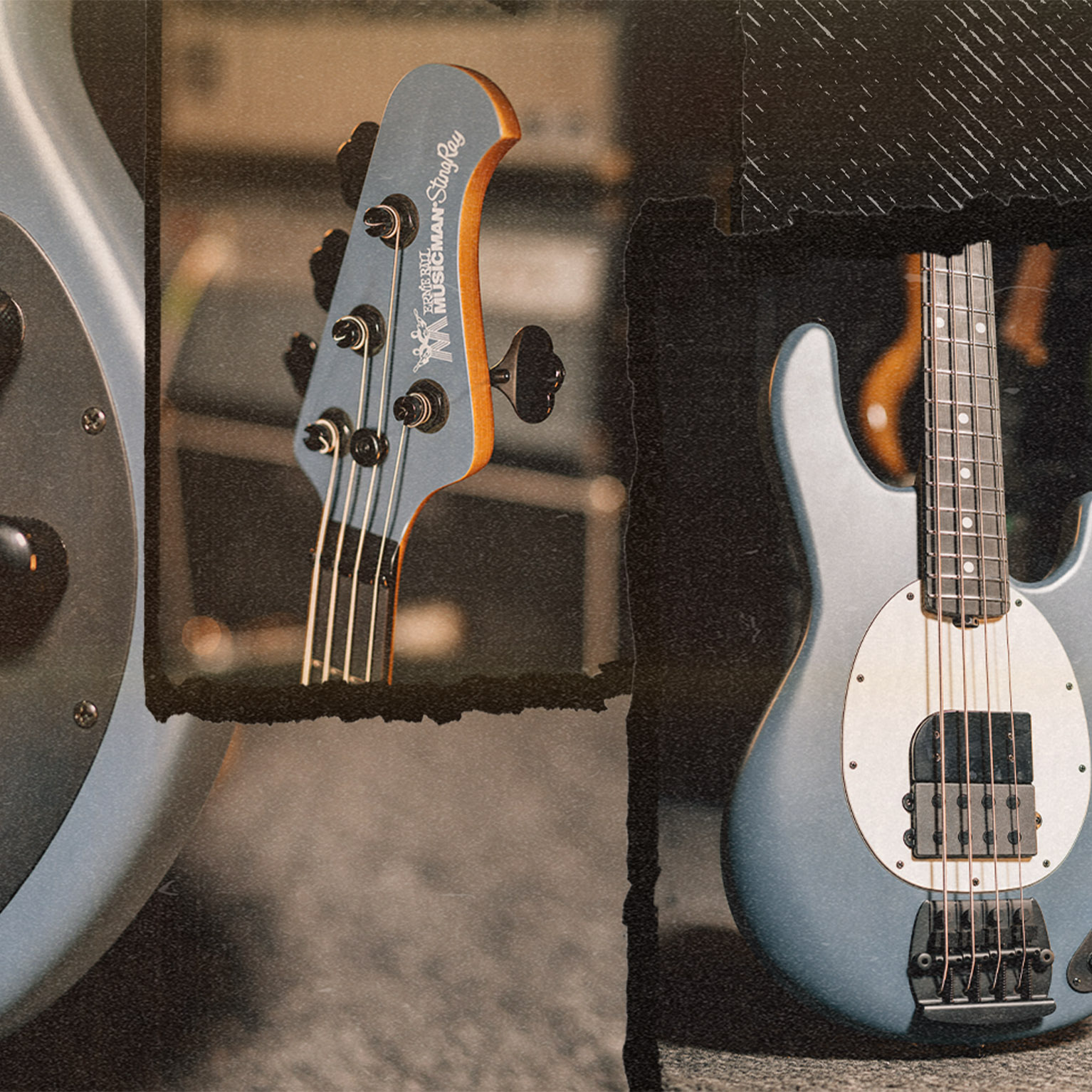

The limited-edition Tim Commerford Artist Series StingRay Bass in Quentin Blue, developed in collaboration with legendary bassist Tim Commerford of Rage Against the Machine, Audioslave, and 7D7D, embodies his deep connection to Ernie Ball Music Man. With only 50 units available, each featuring a numbered custom neck plate, this bass combines an ash body, roasted maple neck, and ebony fretboard for rich, balanced tone. It features passive electronics with a neodymium humbucker, a volume control that includes a passive boost, a 3-way rotary pickup selector, and a tone knob for a wide range of tonal options. The string-through-body bridge with a mute kit enhances sustain and control, while black hardware and a custom, height-adjustable “finger ramp” thumb rest - inspired by Commerford’s playing style - provide added comfort and flexibility.

Tim Commerford Passive Logo

OPTIONS

Quentin Blue

Your Custom Options:

Model:
Colour:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

Tim Commerford Passive Highlights

Tim Commerford Passive Slide
Tim Commerford Passive Slide
Tim Commerford Passive Slide
Tim Commerford Passive Slide
Tim Commerford Passive Slide
Tim Commerford Passive Slide
Tim Commerford Passive Slide
Tim Commerford Passive Slide
Tim Commerford Passive Highlight
LIMITED QUANTITY RELEASE
The Tim Commerford Artist Series Bass is limited to only 50 instruments per color. Each neck plate is numbered #1 through #50
Tim Commerford Passive Highlight

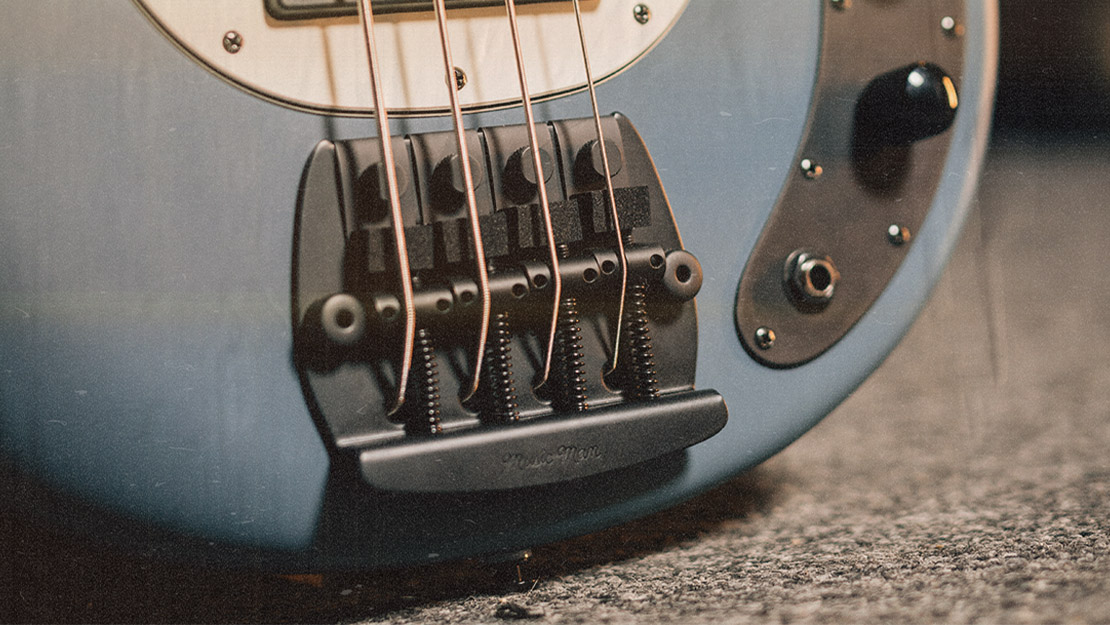

STRINGS THROUGH THE BODY BRIDGE
Featuring the classic strings-through-bridge with vintage plated saddles and adjustable mute pads.
Tim Commerford Passive Highlight
HEIGHT ADJUSTABLE CUSTOM FINGER RAMP
Height adjustable thumb rest enables a more comfortable hand position when playing fingerstyle

Engineered To Perform

Passive Electronics

The Tim Commerford Passive bass comes with a 3 position parallel / single-coil / series pickup rotary switch and push volume control with passive gain boost.

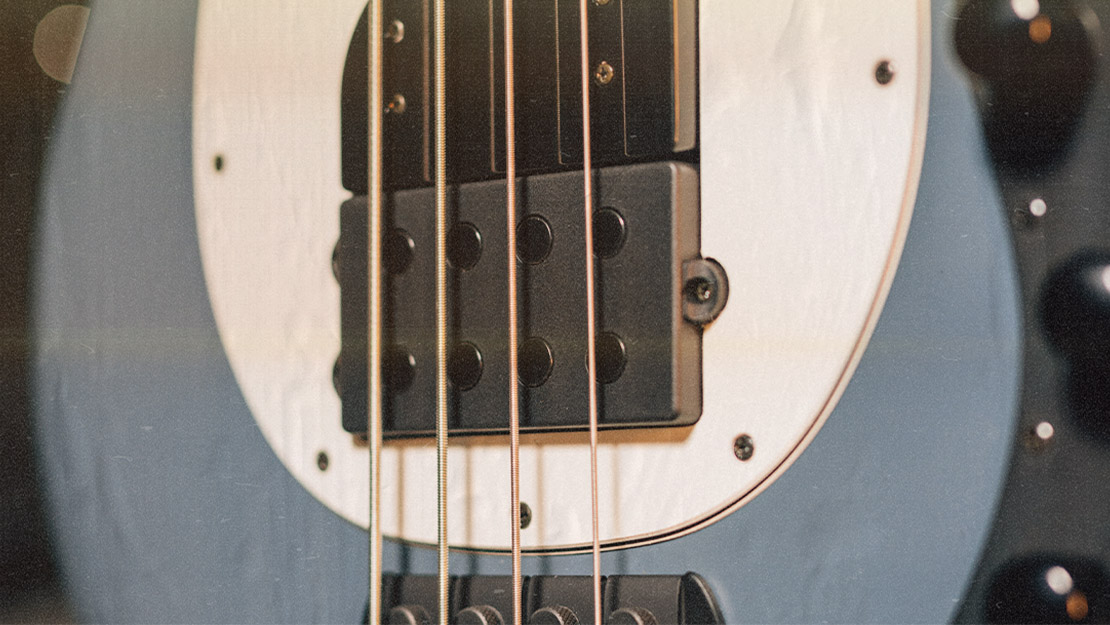

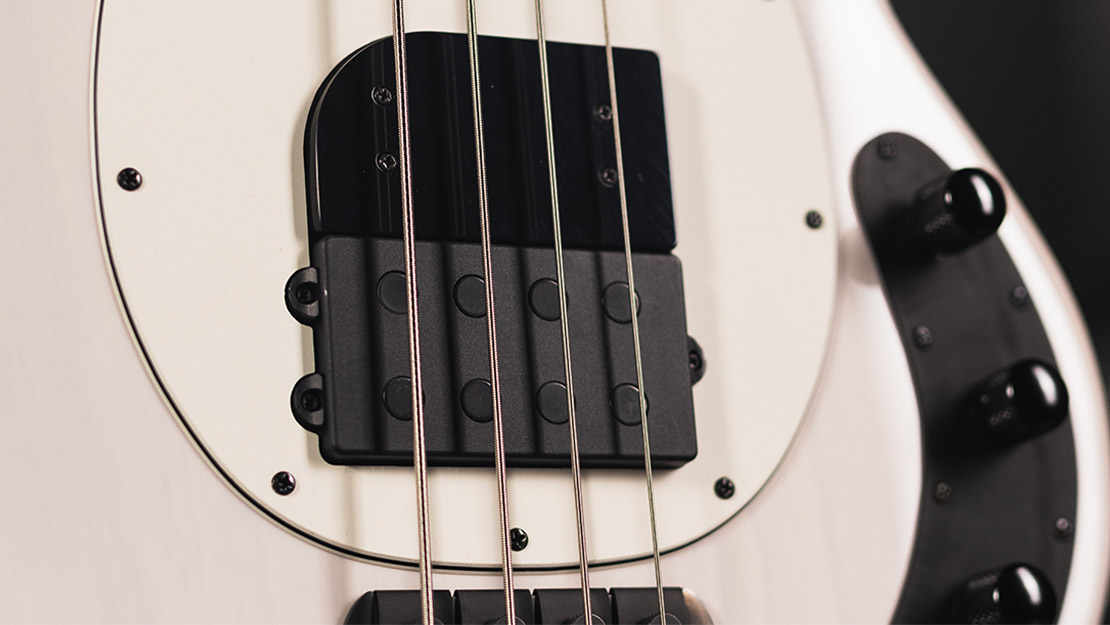

Powerful Neodymium Pickups

The StingRay humbucking pickup features powerful neodymium magnets, bringing you more output and a wider range of sounds. A beveled pickup cover thumb rest and adjustable finger ramp allow a more comfortable fingerstyle hand position playing above or adjacent to the pickup.

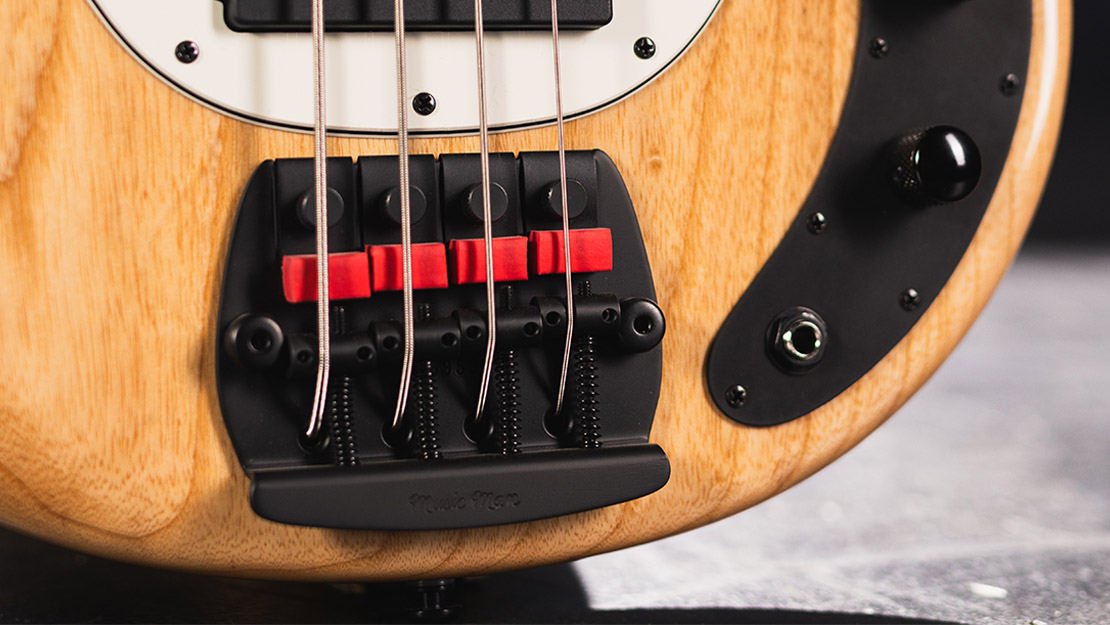

Adjustable Mute Pads

The classic string thru bridge is fitted with individual mute pads allowing you to customize the degree of string dampening to suit your tastes.

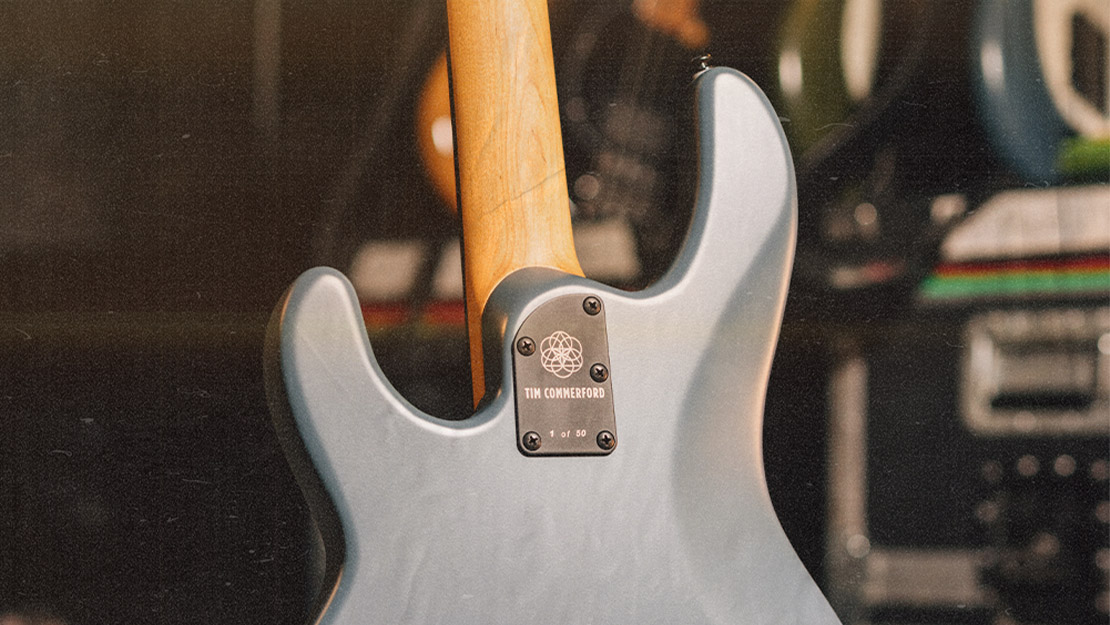

5-bolt Sculpted Neck Joint

All Tim Commerford edition models include popular vintage appointments with updated modern refinements. Oil and wax maple and roasted maple necks are standard, along with a compensated nut and sculpted 5-bolt neck join for full access to all 22 stainless steel frets.

Specifications, Schematics & More

Specifications Tim Commerford Passive Full-Scale
Model Tim Commerford Passive Full-Scale
Size 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long)
Body Wood Ash
Body Finish Matte polyester
Body Colours Quentin Blue
Bridge Music Man® black chrome plated, strings-thru-the-body & hardened steel bridge plate with vintage black chrome plated steel saddles and adjustable mute pads
Pickguard Parchment
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)
Headstock Size Only 8-3/4" (22.2 cm) long
Frets 22 - High profile, wide - stainless steel
Neck Width 1-11/16" (42.9mm) at the nut, 2-1/2" (63.5 mm) at the last fret
Neck Wood Select roasted maple neck
Fingerboard Ebony
Fret Markers 5/16" Dot Inlay
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colours Matching headstock
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Black plated aluminum control cover
Controls Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap
Switching 3-way rotary pickup selector
Pickups Single Music Man humbucking pickup- neodymium magnets
Strings 50w-70w-85w-105w (Regular Slinky Bass #2832)

id => 121

iid => 121

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2024-11-18 13:24:37

updated_at => 2024-11-18 13:24:37

Specifications Tim Commerford Passive Full-Scale
Model Tim Commerford Passive Full-Scale
Order 0
Size 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long)
Body Wood Ash
Body Finish Matte polyester
Body Colors Quentin Blue
Body Bindings
Bridge Music Man® black chrome plated, strings-thru-the-body & hardened steel bridge plate with vintage black chrome plated steel saddles and adjustable mute pads
Pickguard Parchment
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)
Headstock Size Only 8-3/4" (22.2 cm) long
Frets 22 - High profile, wide - stainless steel
Neck Width 1-11/16" (42.9mm) at the nut, 2-1/2" (63.5 mm) at the last fret
Neck Wood Select roasted maple neck
Fingerboard Ebony
Fret Markers 5/16" Dot Inlay
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Matching headstock
Neck Binding
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Black plated aluminum control cover
Controls Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap
Switching 3-way rotary pickup selector
Pickups Single Music Man humbucking pickup- neodymium magnets
Left Handed
Strings 50w-70w-85w-105w (Regular Slinky Bass #2832)
